Bosch Thermal Imaging Camera GTC 600C (Bare Tool)

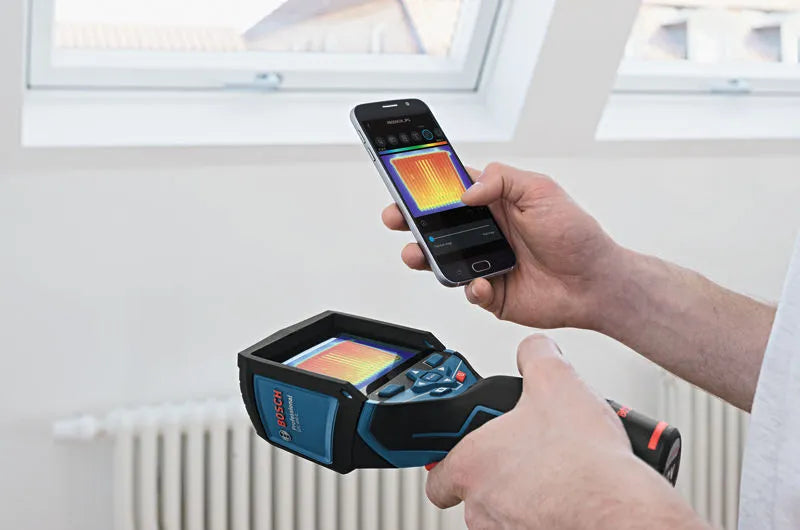

Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Battery voltage	12.0 V
Measurement range	-10 °C to +400 °C
Measuring accuracy of IR	±3.0 °C
Measuring application	Thermal image
Data transfer	MicroUSB, Wi-Fi
Thermal sensitivity (NETD)	<50 mK
Size of IR sensor	160 Pixel x 120 Pixel
Net weight	0.495 kg
Gross weight	1.177 Kg
Resolution	0.1°C
Number of measuring points	19,200
Field of view (FOV)	53° x 43°
Power supply and runtime	4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Frame buffer (number of images)	500
Memory type	Internal memory
Dust and splash protection	IP 53
Weight	0.54 Kg
Size of display	3.5"
Operating temperature	-10 – 45 °C
Storage temperature	-20 – 70 °C
Focus distance, minimum	0.3m

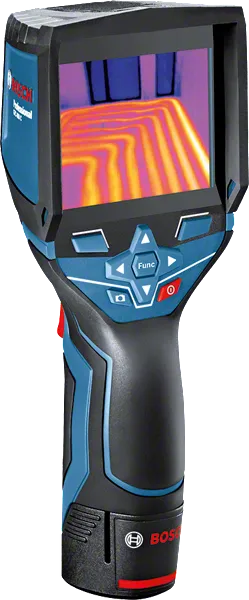

Bosch Thermal Imaging Camera GTC 400C
