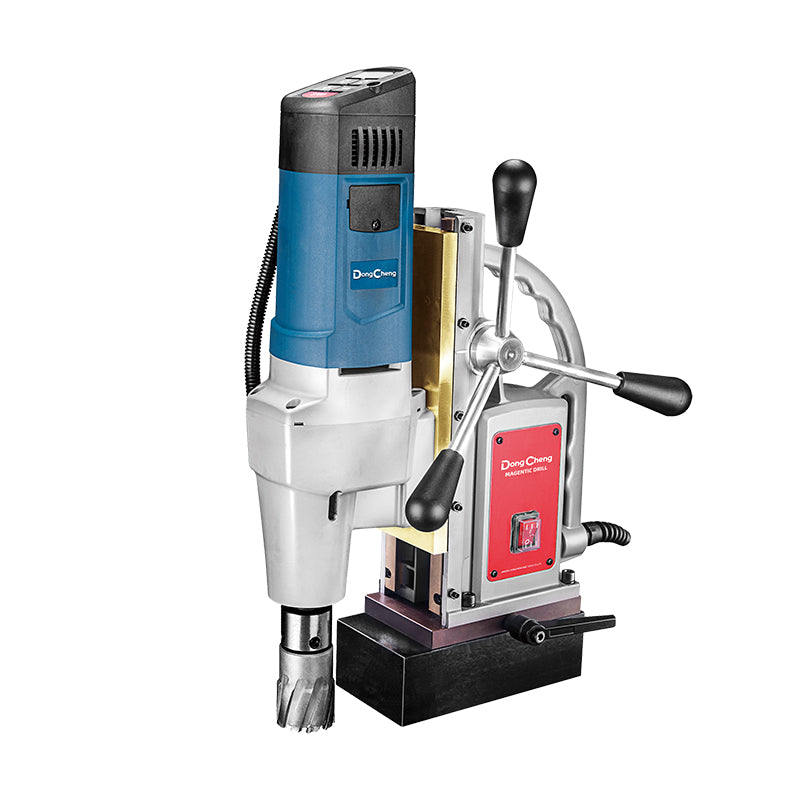

The DONGCHENG DJC02-23 Magnetic Drill clamps to steel with a 15000 N magnetic base, so you can drill accurate holes on beams, plates, pipes, and structures without a drill press. It drills up to 23 mm with a twist drill bit and up to 50 mm with a core (annular) cutter, and it also taps threads up to M20 (tapping tools sold separately). The 1600 W motor has a 2-speed mechanical gearbox (130-260 and 260-520/min) and a maximum stroke of 220 mm. Soft start, electronic constant speed control, and electronic overload protection with a safety release clutch help protect the operator and the machine. It is made for fabricators, structural steel erectors, maintenance teams, and workshops.

Key Features

1600 W motor: strong power for steel drilling
15000 N magnetic base: holds firmly on steel for safe, accurate drilling

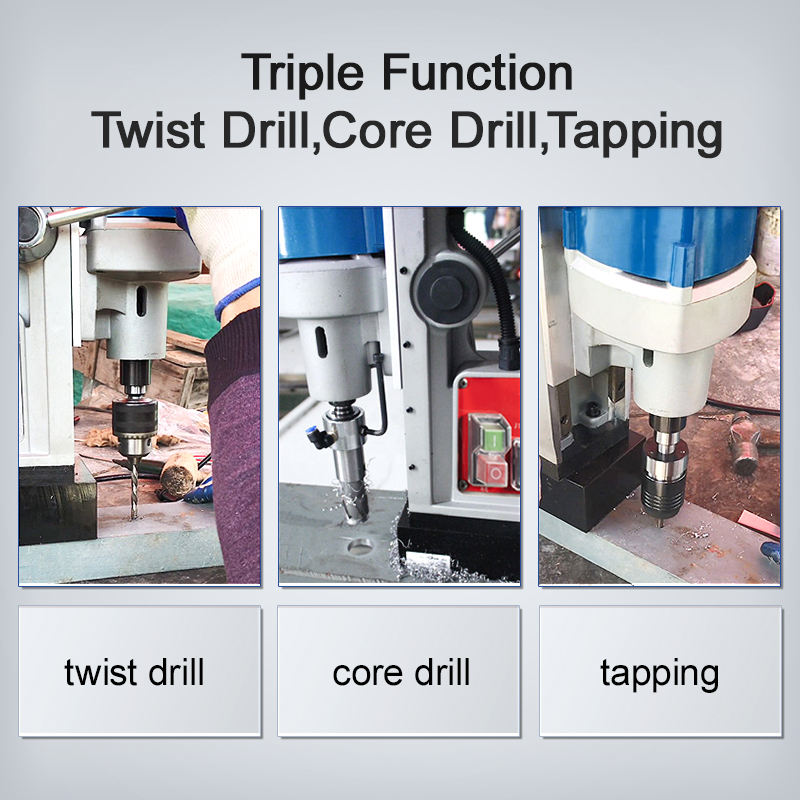

Triple function: twist drilling, core drilling, and tapping
23 mm twist drill and 50 mm core drill capacity
M20 tapping capacity: tapping tools sold separately
2-speed mechanical control: 130-260/260-520/min no-load speed

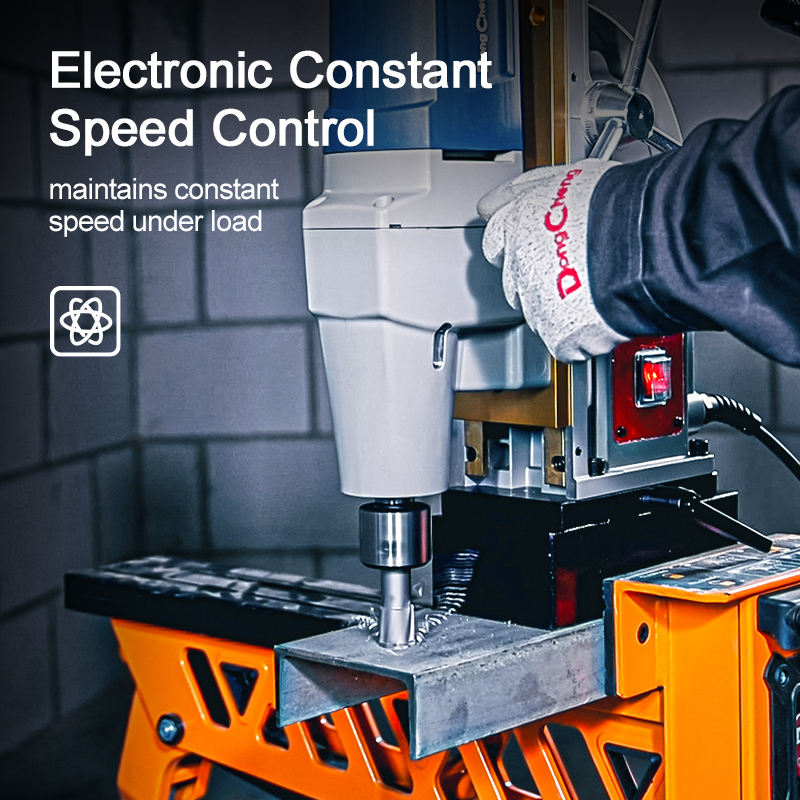

Electronic constant speed control: keeps speed steady under load
Soft start: smoother, safer start-up
Electronic overload protection and safety release clutch
220 mm maximum stroke
MT3 shank connector: takes MT3 arbors and core cutter adaptors
Plastic case packing

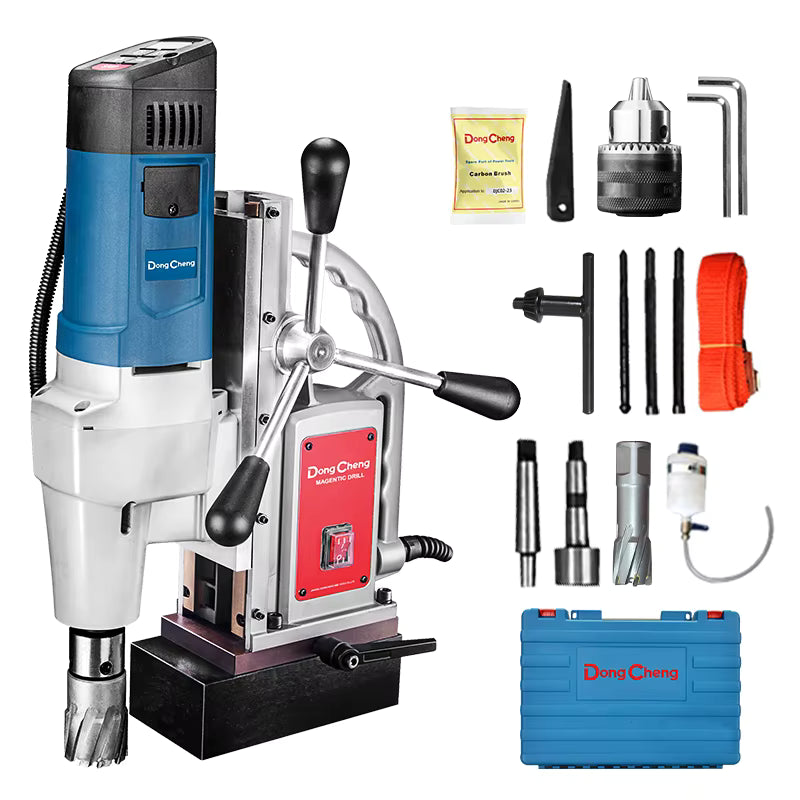

What’s in the Box

Item	Quantity
Magnetic drill machine	1
Joint assembly for MT3 core	1
Wedge iron	1
Safety belt	1
Open-end wrench	1
Hex wrench	2
Chuck wrench	1
Drill chuck	1
Extension rod for Morse taper bush with tang	1
Center pin, long center pin, short center pin	1 each
Morse reduction sleeve	1
Oiler assembly	1
Carbon brush	1 set
Plastic case	1

Application

Drilling holes in steel beams, channels, plates, and pipes
Core drilling with annular cutters up to 50 mm
Tapping threads up to M20 (with tapping tools sold separately)
Structural steel, bridge, and shipyard work
Fabrication shops and on-site maintenance
Machinery, rail, and plant installation

Technical Specification

Specification	Detail
Brand	DONGCHENG
Model	DJC02-23
Product Type	Magnetic Drill
Rated Power Input	1600 W
Max Drilling Capacity (Twist Drill Bit)	Φ23 mm
Max Drilling Capacity (Core Drill Bit)	Φ50 mm
Max Tapping Capacity	M20 (sold separately)
Magnetism	15000 N
No-load Speed	130-260/260-520 /min
Max Stroke	220 mm
Connector	MT3 shank
Net Weight	24.0 kg
Speed Control	2-speed mechanical, electronic constant speed
Protection	Electronic overload protection, safety release clutch
Soft Start	Yes
Packaging	Plastic case

Safety Note: Use only on clean, flat, ferrous steel that is thick enough for the magnet to hold, and make sure the magnet is switched on before starting the motor. Always wear eye protection, ear protection, and gloves, and use the safety belt on vertical or overhead work. Keep long hair and loose clothing clear. Unplug before changing cutters or accessories, and do not use on thin or painted, rusty, or uneven surfaces without checking the hold.

DONGCHENG 1600W Magnetic Drill Machine, 23 mm Twist Drill / 50 mm Core Drill, 15000N, MT3 (DJC02-23)-A 1600 W magnetic drill with a 15000 N magnetic base for twist drilling, core drilling, and tapping in steel.
