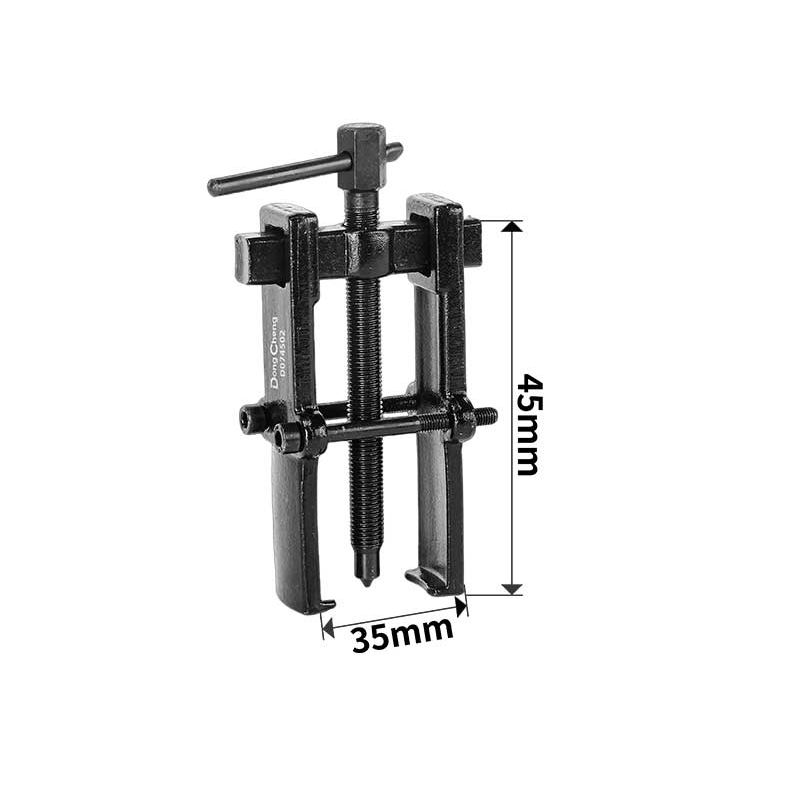

The DONGCHENG HD074502 Two Jaws Puller has a 45 mm stroke and a 35 mm opening size, with a maximum force of 450 kg. The jaws are made from 45# steel with a black oxide coating for strength and corrosion resistance. Hook the jaws behind the part, then turn the centre screw to draw it off the shaft. It is made for mechanics, motor winders, and maintenance teams.

Key Features

Two jaws: hook behind bearings, gears, and pulleys
450 kg max force
45 mm stroke and 35 mm opening size
45# steel: strong and durable
Black oxide coating: corrosion resistance
Packed by slide blister

Application

Removing small bearings from shafts
Pulling gears, pulleys, and bushes
Motor, pump, and appliance repair
Automotive and two-wheeler maintenance
Workshop and maintenance use

Technical Specification

Specification	Detail
Brand	DONGCHENG
Model	HD074502
Product Type	Two Jaws Puller
Size	2"
Jaws	2
Max Force	450 kg
Stroke	45 mm
Opening Size	35 mm
Material	45# steel
Surface Treatment	Black oxide coating
Packaging	Slide blister

Safety Note: Do not exceed the rated force. Keep the puller centred on the shaft and the jaws fully hooked. Wear eye protection, and do not use a hammer on the screw or jaws.

DONGCHENG 2" Two Jaws Puller, 450 kg, 45# Steel, Black Oxide (HD074502)-A 2" two-jaw puller for removing bearings, gears, and pulleys from shafts.
