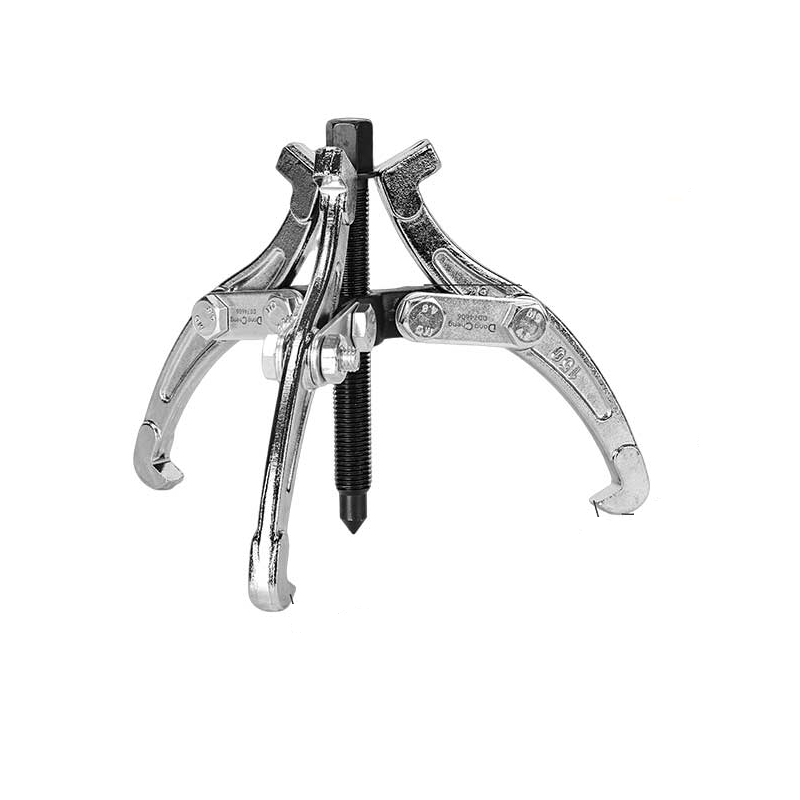

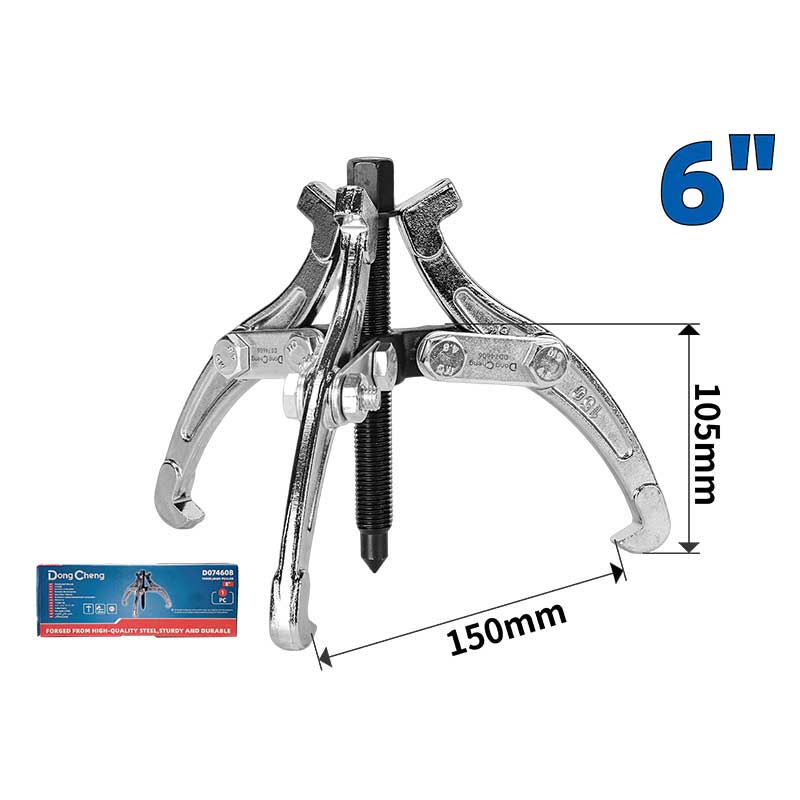

The DONGCHENG HD074606 Three Jaws Puller has a maximum force of 2700 kg, a 105 mm stroke, and a 150 mm opening size. Three jaws grip the part evenly, so it comes off straight without tilting or jamming on the shaft. The body is made from 45# steel with a chrome-plated and black oxide coating for strength and corrosion resistance. It is made for mechanics, motor winders, and maintenance teams.

Key Features

Three jaws: an even, centred pull that resists slipping
2700 kg max force
105 mm stroke and 150 mm opening size
45# steel: strong and durable
Chrome-plated, black oxide coating: corrosion resistance
Packed by colour box

Application

Removing bearings, gears, and pulleys from shafts
Pulling flywheels, hubs, and couplings
Motor, pump, and gearbox repair
Automotive and machinery maintenance
Workshop and industrial use

Technical Specification

Specification	Detail
Brand	DONGCHENG
Model	HD074606
Product Type	Three Jaws Puller
Size	6"
Jaws	3
Max Force	2700 kg
Stroke	105 mm
Opening Size	150 mm
Material	45# steel
Surface Treatment	Chrome-plated, black oxide coating
Packaging	Colour box

Safety Note:

Do not exceed the rated force. Keep the puller centred on the shaft and the jaws fully hooked. Wear eye protection, and do not use a hammer on the screw or jaws.

DONGCHENG 6" Three Jaws Puller, 2700 kg, 45# Steel, Chrome-Plated (HD074606)-A 6" three-jaw puller for removing bearings, gears, and pulleys with a balanced, centred pull.
