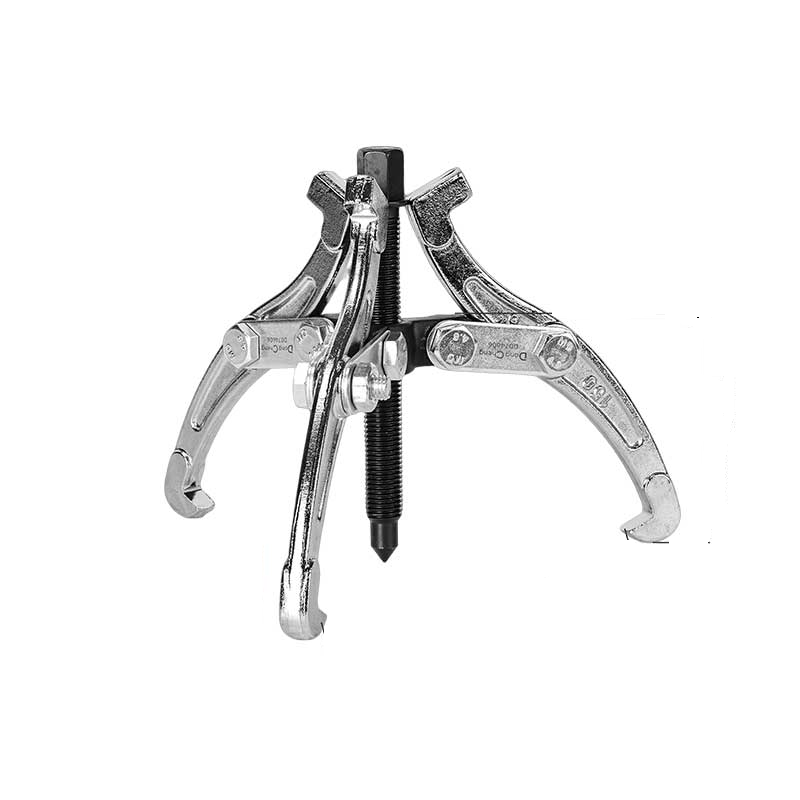

The DONGCHENG HD074608 Three Jaws Puller has a maximum force of 4000 kg, a 150 mm stroke, and a 200 mm opening size, so it handles larger parts than the 6" model (HD074606). Three jaws grip the part evenly for a straight, centred pull. The body is made from 45# steel with a chrome-plated and black oxide coating. It is made for mechanics, fitters, and industrial maintenance teams.

Key Features

Three jaws: an even, centred pull that resists slipping
4000 kg max force

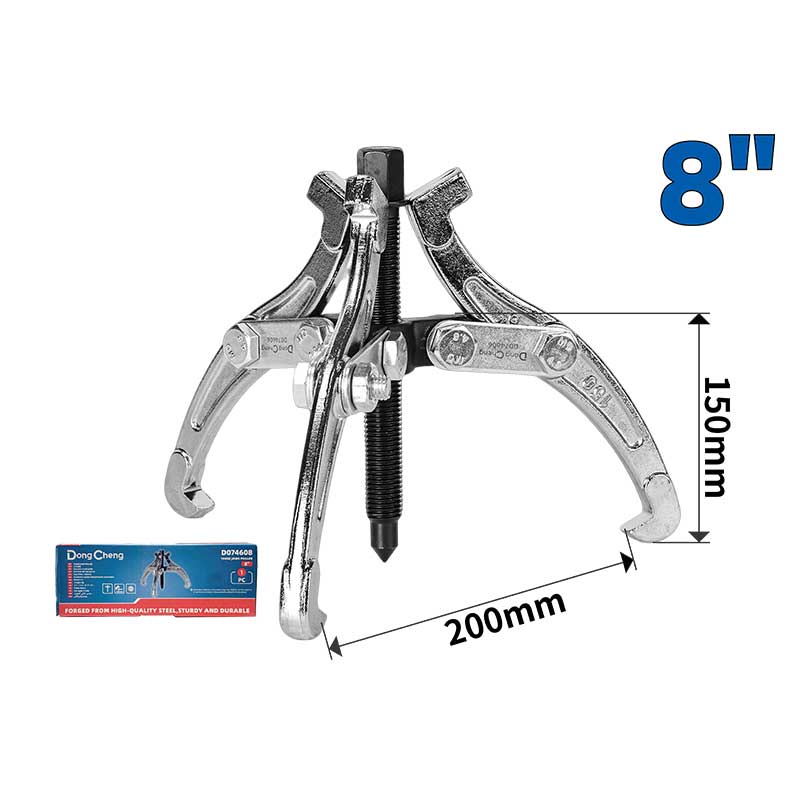

150 mm stroke and 200 mm opening size
45# steel: strong and durable
Chrome-plated, black oxide coating: corrosion resistance
Packed by colour box

Application

Removing large bearings, gears, and pulleys
Pulling flywheels, hubs, and couplings
Motor, pump, and gearbox repair
Automotive and heavy machinery maintenance
Workshop and industrial use

Technical Specification

Specification	Detail
Brand	DONGCHENG
Model	HD074608
Product Type	Three Jaws Puller
Size	8"
Jaws	3
Max Force	4000 kg
Stroke	150 mm
Opening Size	200 mm
Material	45# steel
Surface Treatment	Chrome-plated, black oxide coating
Packaging	Colour box

Safety Note: Do not exceed the rated force. Keep the puller centred on the shaft and the jaws fully hooked. Wear eye protection, and do not use a hammer on the screw or jaws.

DONGCHENG 8" Three Jaws Puller, 4000 kg, 45# Steel, Chrome-Plated (HD074608)-=An 8" three-jaw puller with 4000 kg of force for larger bearings, gears, and hubs.
