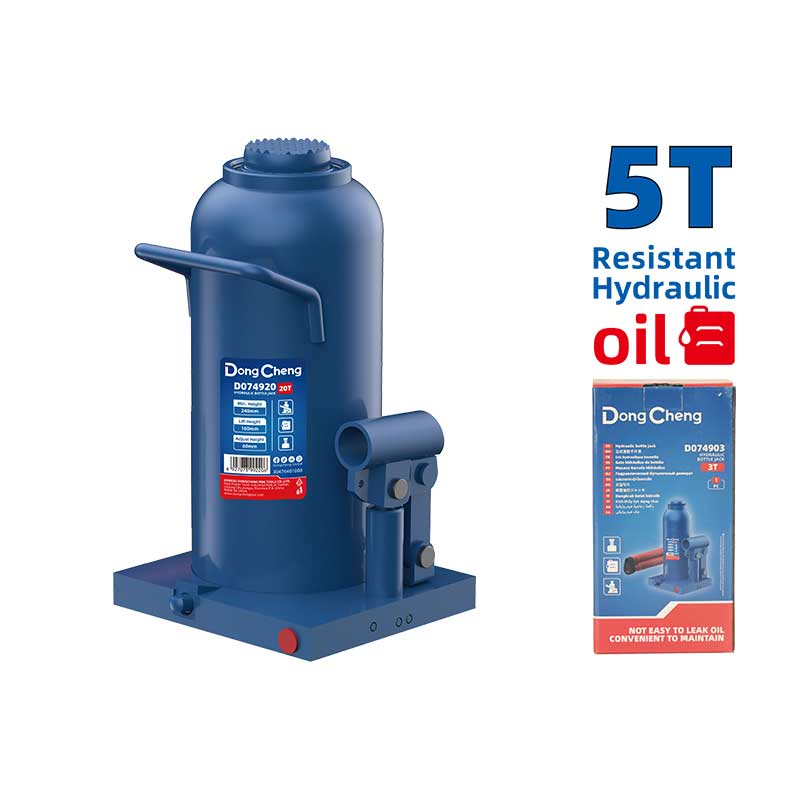

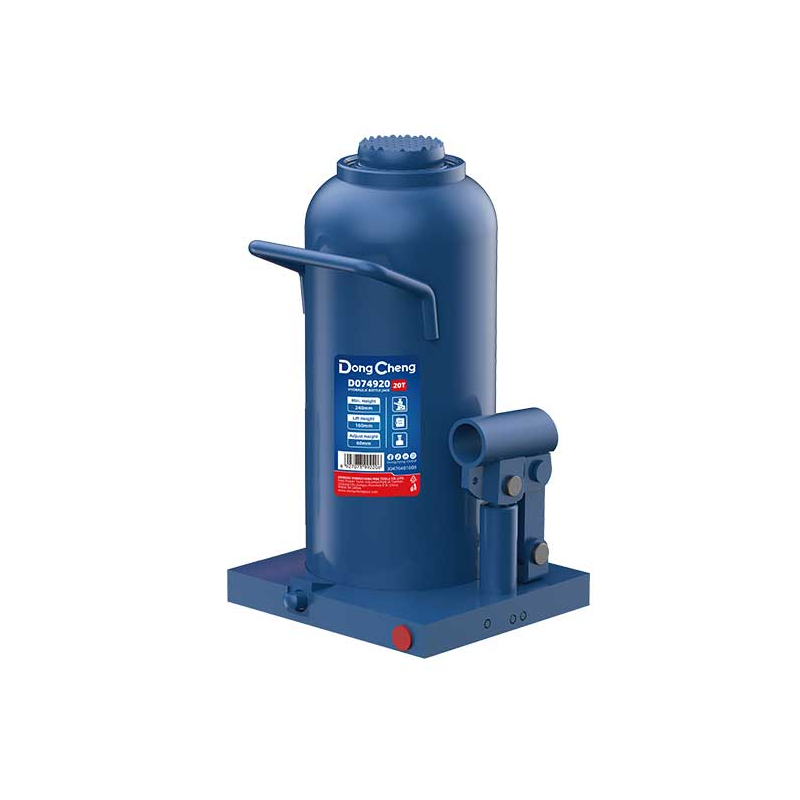

The DONGCHENG HD074905 Hydraulic Bottle Jack lifts up to 5 tons. It has a minimum height of 210 mm, a lift height of 140 mm, and an adjustable screw of 70 mm. The safety valve protects the jack from overloading. At 3.3 kg net weight, it is easy to carry. It is made for drivers, mechanics, and workshops.

Key Features

5 ton capacity
Safety valve: helps protect against overload
210 mm minimum height
140 mm lift height, plus 70 mm adjustable screw
3.3 kg net weight
Packed by colour box

Application

Lifting SUVs, vans, and light trucks
Wheel and tyre changes
Garage and workshop use
Light industrial lifting
Machinery and equipment positioning

Technical Specification

Specification	Detail
Brand	DONGCHENG
Model	HD074905
Product Type	Hydraulic Bottle Jack
Capacity	5 ton
Min. Height	210 mm
Lift Height	140 mm
Adjust Height	70 mm
Net Weight	3.3 kg
Safety Valve	Yes
Packaging	Colour box

Safety Note:

A jack is for lifting only. Never work under a load supported only by a jack, and use jack stands. Use on firm, level ground, never exceed the rated capacity, and keep the jack upright.

DONGCHENG 5 Ton Hydraulic Bottle Jack with Safety Valve, 210 mm Min. Height (HD074905)-A 5 ton hydraulic bottle jack with a safety valve for SUVs, vans, and light trucks.
