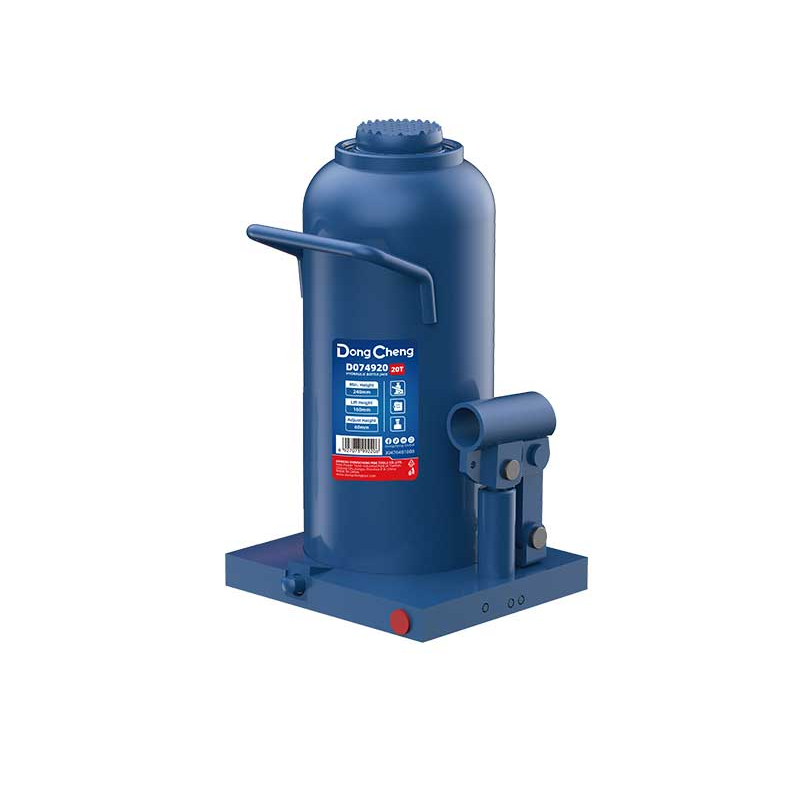

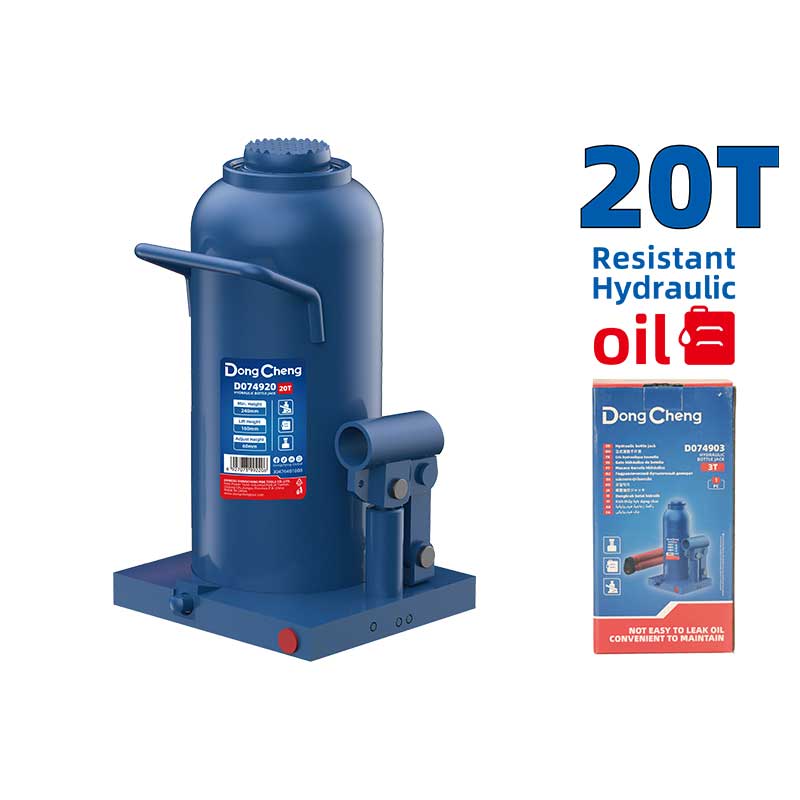

The DONGCHENG HD074920 Hydraulic Bottle Jack lifts up to 20 tons, the highest in this range. It has a minimum height of 240 mm, a lift height of 160 mm, and an adjustable screw of 60 mm. The safety valve protects the jack from overloading. It weighs 8.72 kg net. It is made for heavy vehicle workshops, fleet teams, and industrial maintenance.

Key Features

20 ton capacity: the highest in the range
Safety valve: helps protect against overload
240 mm minimum height
160 mm lift height, plus 60 mm adjustable screw
8.72 kg net weight
Packed by colour box

Application

Lifting heavy trucks, buses, and trailers
Fleet and heavy vehicle workshops
Industrial and plant maintenance
Machinery and equipment positioning
Construction equipment servicing

Technical Specification

Specification	Detail
Brand	DONGCHENG
Model	HD074920
Product Type	Hydraulic Bottle Jack
Capacity	20 ton
Min. Height	240 mm
Lift Height	160 mm
Adjust Height	60 mm
Net Weight	8.72 kg
Safety Valve	Yes
Packaging	Colour box

Safety Note: A jack is for lifting only. Never work under a load supported only by a jack, and use jack stands. Use on firm, level ground, never exceed the rated capacity, and keep the jack upright.

DONGCHENG 20 Ton Hydraulic Bottle Jack with Safety Valve, 240 mm Min. Height (HD074920)-A 20 ton hydraulic bottle jack with a safety valve for heavy trucks and industrial lifting.
