Unmatched Lifting Power for High-Demand Industrial Workflows.

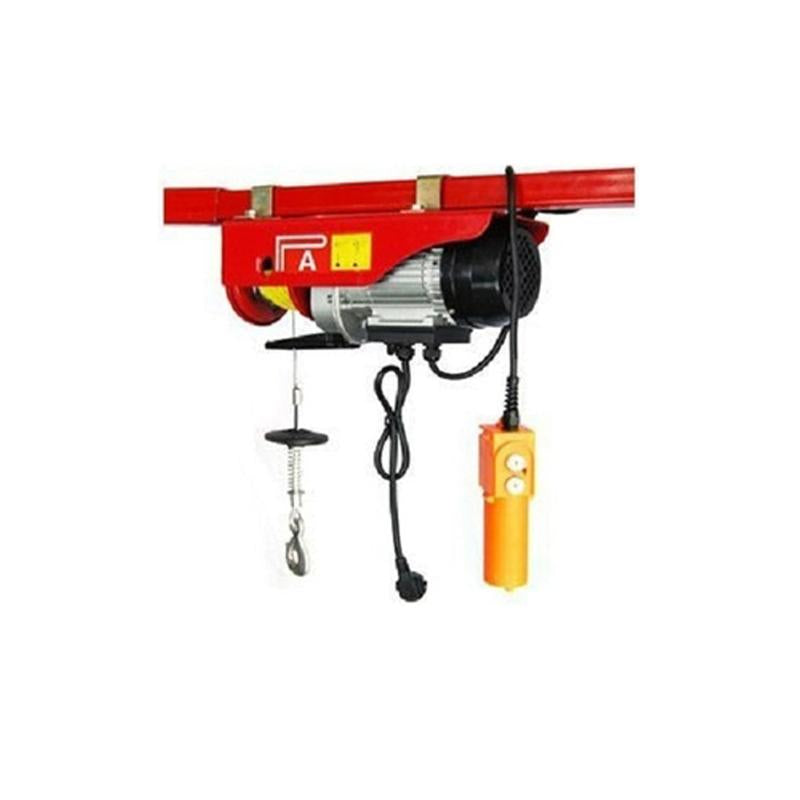

The Electric Hoist PA1500 (20MTR) is a high-capacity vertical lifting powerhouse designed for industrial-scale operations in warehouses, construction sites, and manufacturing facilities. Equipped with a high-torque 3.0 HP copper winding motor and an 8mm thick wire rope, this hoist is engineered to handle loads up to 1500 kg with precision and maximum safety.

Key Features:

3.0 HP Copper Winding Motor: Delivers consistent, high-performance power with superior heat dissipation, ensuring long-term reliability even under heavy usage.
Dual Lifting Capacity: Highly versatile system supporting a single-line capacity of 750 kg (20m height) and a double-line capacity of 1500 kg (10m height) using the included pulley hook.
High-Tensile 8mm Wire Rope: Features a robust 20-meter galvanized steel wire rope designed for exceptional tensile strength and resistance to twisting and corrosion.
Advanced Safety System: Includes an integrated emergency stop button on the wired controller, a limit switch to prevent overwinding, and a built-in safety braking mechanism.
Professional Transit Grade: Securely packed in a heavy-duty wooden box to ensure the machine and its precision components are protected during transportation.

Specifications:

Model: PA1500
Lifting Capacity: 750 kg (Single Hook) / 1500 kg (Double Hook)
Lifting Height: 20 Meters (Single) / 10 Meters (Double)
Motor Power: 3.0 HP High-Efficiency Copper Motor
Wire Rope Diameter: 8 mm
Voltage: 220-240V Single Phase
Applications: Ideal for factories, multi-story construction, automotive servicing, and large-scale warehousing.

Heavy Duty Electric Hoist PA1500 – 1.5 Ton Capacity with 20 Meter Rope
