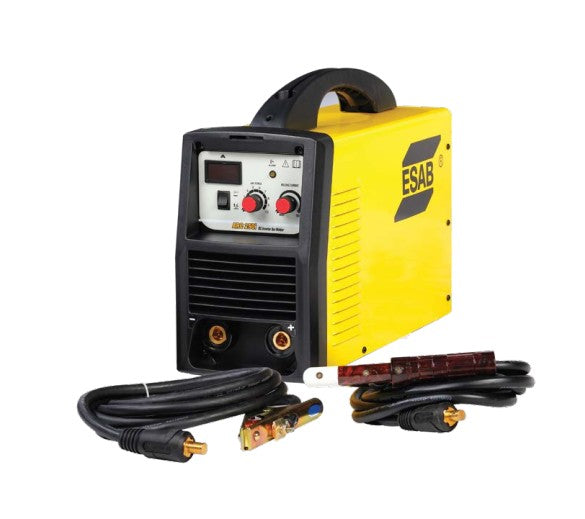

Esab Arc 250I Single Phase MMA Inverter Welding Machine | Heavy Duty

Arc 250i is a single phase inverter welding power source designed for light and heavy duty applications for continuous electrode usage.
Designed for MMA electrodes upto 4.0mm size MSGP, LH, Stainless steel and Cellulosic.
Wide mains voltage tolerance range 196V-264V.
Adjustable Arc force for Superior Arc control.
Digital Display for set current reference.
Ready to weld package with Electrode Holder and Earth Clamp.

Mains Supply, V/Ph, Hz	230 ±15% / 1, 50
Input Power (Max), KVA	12
Output Current Range, A	30 –250
Maximum load at 60% duty cycle, A	250
Maximum load at 100% duty cycle, A	194
Open Circuit Voltage, V	80
Efficiency	88
Enclosure Class	IP 21S
Insulation Class	H
Cooling	Forced Air
Dimensions, l x w x h, mm (with handle)	435 x 170 x 275
Weight, Kg	10.7
Recommended dia of Electrode for welding, mm	Upto 4.0, occasionally 5.0
