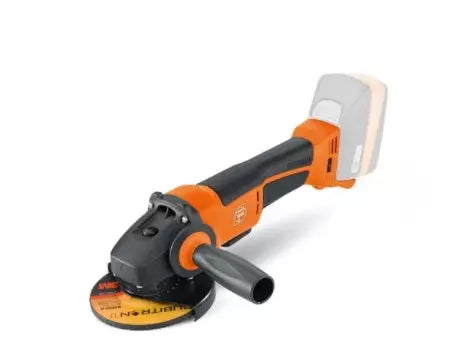

The Fein CCG 18-125-12 PD-SEC AS Set ProCore is a professional 18V cordless angle grinder from the FEIN PROTAGO range, engineered for powerful cutting, grinding and surface-finishing applications with a strong focus on operator safety and controlled handling.

Powered by a brushless FEIN Power Drive motor and the 18V AMPShare battery system, this 125mm cordless grinder delivers a variable no-load speed of 2,500–8,500 RPM. Its electronic speed preselection allows the working speed to be matched to different materials and applications. The grinder uses 125mm grinding discs, 125mm elastic backing pads and an M14 spindle/flange.

The PROTAGO safety concept combines two-hand operation, AutoStop dead-man switch, permanently fitted auxiliary handle, non-removable safety hood and kickback monitoring. Additional protection is provided by soft start, restart protection, electronic overload protection, blockage monitoring and a braking function.

The fully enclosed motor housing helps protect the motor from aggressive ceramic and mineral dust. FEIN also incorporates cooling ribs and temperature monitoring for improved durability. The motor is decoupled from the housing and supported by vibration dampers to help provide smoother, lower-vibration operation.

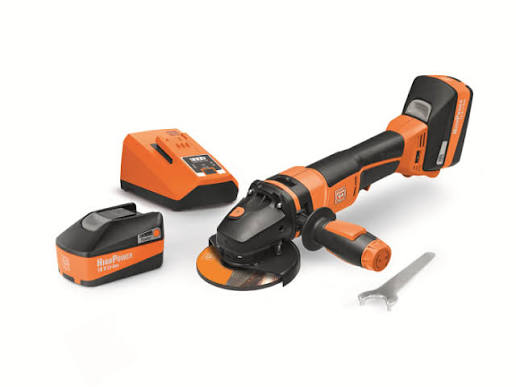

This particular 71222062000 Set is supplied with two ProCORE 18V 8.0Ah batteries, a GAL18 V-160 AS rapid charger and an L-BOXX 238, making it a ready-to-use professional cordless grinding solution.

FEIN states that the combination of the tool and ProCORE battery system can provide up to 45% more cuts than the previous CCG 18 SEC + FEIN High-Power battery system, while cutting can be up to 16% faster than comparable competitor devices.

Product Features

PROTAGO professional cordless angle grinder with enhanced operator protection.
18V AMPShare battery platform for flexible cordless operation.
125mm disc diameter suitable for professional cutting and grinding work.
Brushless motor for efficient and low-maintenance operation.
2,500–8,500 RPM variable speed for application-specific speed control.
Two-hand operation for improved control during demanding work.
AutoStop dead-man switch for enhanced user protection.
Kickback monitoring helps provide additional protection during operation.
Permanently fitted auxiliary handle for secure two-handed handling.
Auxiliary handle can be adjusted into 6 positions.
Non-removable safety hood for enhanced protection.
Soft-start function for controlled tool acceleration.
Restart protection helps prevent unintended restarting.
Electronic overload protection helps protect the motor and electronics.
Blockage monitoring for improved operational safety.
Brake function helps stop the rotating system.
Electronic speed preselection for matching speed to the application.
Fully enclosed motor housing helps protect against ceramic and mineral dust.
Low-vibration construction with decoupled motor and vibration dampers.
COOLPACK 2.0 battery technology for improved battery thermal management.
Integrated battery management and ECP help protect ProCORE batteries against overload, overheating and deep discharge.
Compatible with 18V AMPShare ProCORE batteries and chargers.
Also suitable for 18V Bosch Professional cordless devices.

Product Specifications

Specification	Details
Brand	Fein
Product Type	Cordless Angle Grinder
Series	PROTAGO
Model	CCG 18-125-12 PD-SEC
Product Number	7 122 20 62 00 0
Order Number	71222062000
Battery Voltage	18V
Battery Capacity	8.0Ah
Battery Type	ProCORE Li-ion
Battery Interface	18V AMPShare
Motor Type	Brushless
No-Load Speed	2,500–8,500 RPM
Grinding Disc Diameter	125mm
Elastic Backing Pad Diameter	125mm
Spindle / Flange	M14
Switch	AutoStop dead-man switch
Speed Control	Electronic speed preselection
Safety Features	Two-hand operation, AutoStop, kickback monitoring, restart protection
Protection Features	Soft start, blockage monitoring, electronic overload protection, brake
Weight Without Battery	2.40kg
Weight With Battery	3.30kg
Sound Pressure Level	84.9 dB
Sound Power Level	92.9 dB
Peak Sound Pressure Level	99.3 dB
Vibration Value 1	8.8 m/s²
Vibration Value 2	2.1 m/s²
Tool Case	L-BOXX 238

The above technical data is from FEIN's official product information for order number 7 122 20 62 00 0.

Wide Applications

The Fein CCG 18-125-12 PD-SEC AS is suitable for a wide range of professional applications:

Metal cutting and sectioning.
Grinding and roughing-down metal surfaces.
Deburring cut edges and fabricated components.
Weld preparation and surface preparation.
Brushing for cleaning and preparing metal surfaces.
Satin finishing of suitable metal surfaces.
Fabrication and metalworking workshops.
Construction and installation work.
Industrial maintenance and repair.
Mechanical workshops.
Automotive service and repair applications.
General professional cutting, grinding and finishing operations.

Fein 125mm 18V Cordless Angle Grinder CCG 18-125-12 PD-SEC AS Set ProCore N00 71222062000 | PROTAGO Brushless Grinder with 2500-8500 RPM
