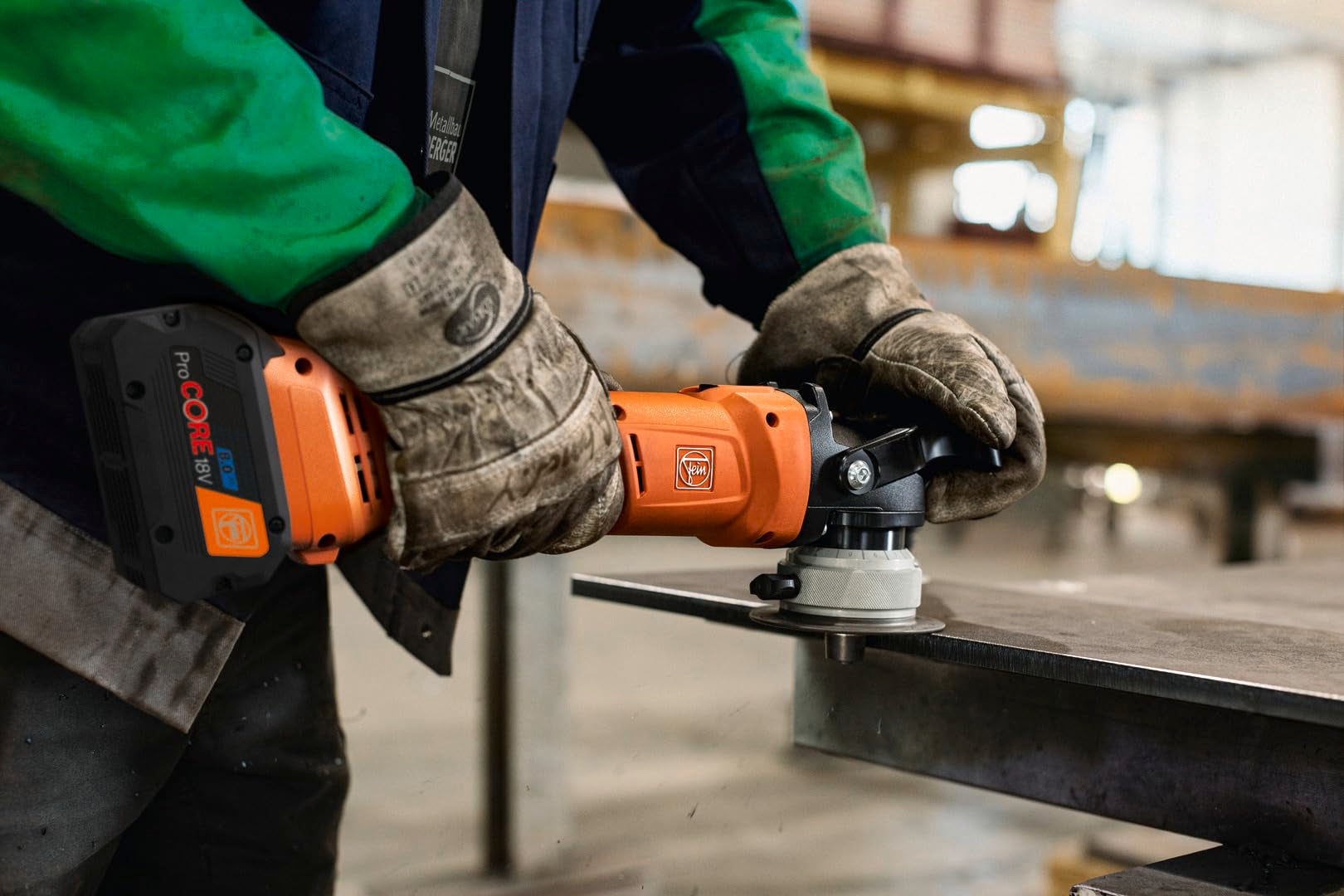

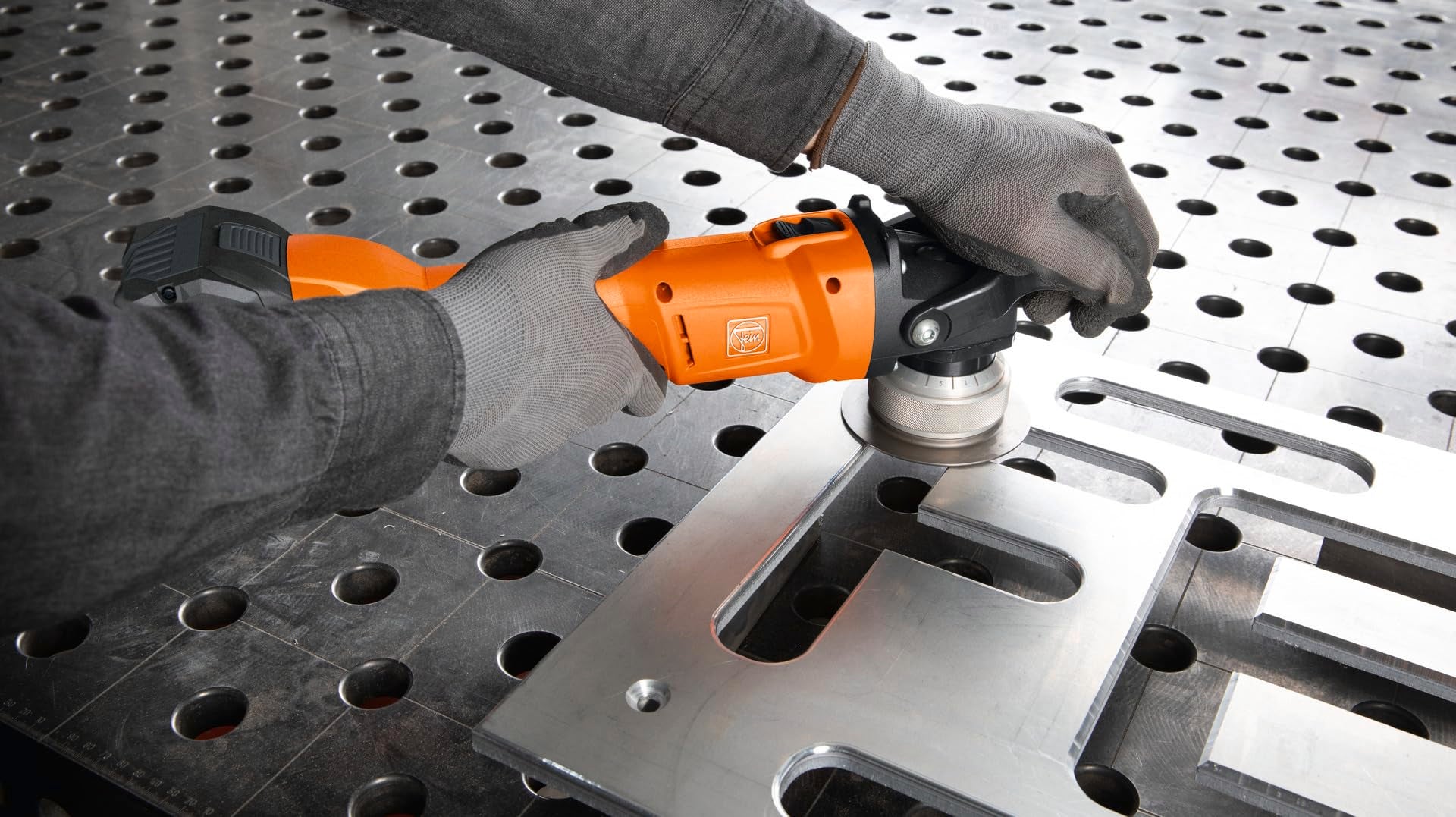

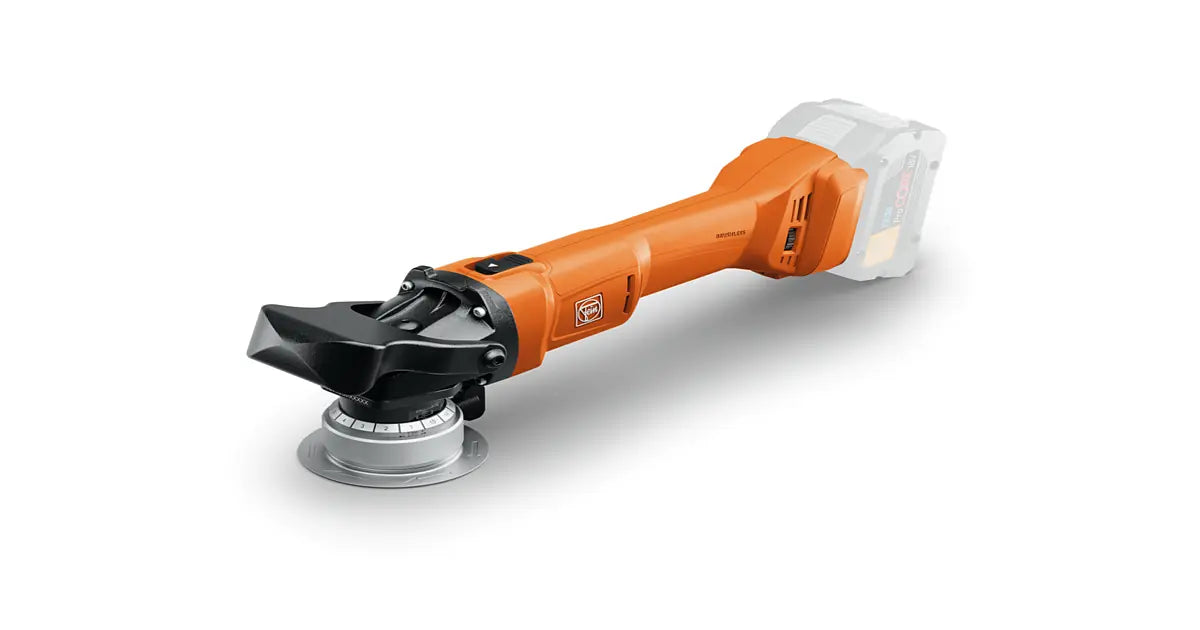

The Fein AKFH 18-5 AS N00 71380262000 is a professional 18V cordless beveller designed for producing precise bevels and radii on flat materials, sheet metals, containers, inner and outer edges, contour shapes and drilled holes. Its compact cordless design provides flexibility for both workshop and construction-site applications.

Powered by a high-performance FEIN PowerDrive motor, the AKFH 18-5 AS delivers a variable no-load speed of 2,400–7,500 rpm, allowing the operator to adapt the machining speed to different materials. It can produce a maximum bevel length of 5 mm at 45°, with a maximum bevel height of 3.5 mm.

The machine is compatible with 18V AMPShare ProCORE Li-ion batteries and chargers, and can also be used with compatible Bosch Professional 18V cordless devices. Its low weight and compact design make it convenient for mobile edge preparation and metalworking applications.

Features & Specifications

Specification	Details
Brand	Fein
Model	AKFH 18-5 AS N00
Product Number	71380262000 / 7 138 02 62 00 0
Product Type	Cordless Beveller / Edge Milling Machine
Battery Voltage	18V
Battery Compatibility	Li-ion / ProCORE Li-ion
Battery Interface	18V AMPShare
No-Load Speed	2,400–7,500 rpm
Maximum Bevel Length at 45°	5mm
Maximum Bevel Height at 45°	3.5mm
Bevel Angle	45°
Radius	1.2 / 2.5mm
Milling Head Configuration	3 × SX Indexable Tips
Support Plate Diameter	98mm
Weight Without Battery	2.52kg
Motor	FEIN PowerDrive
Battery & Charger	Not included
Carrying Case	L-BOXX 238

Technical specifications are based on FEIN's official product information.

Key Features

18V cordless bevelling machine for professional metal edge preparation.
Maximum 5mm bevel length at 45°.
Maximum 3.5mm bevel height at 45°.
Variable 2,400–7,500 rpm speed range.
FEIN PowerDrive motor for high performance and long service life.
Designed for bevels and radii on flat materials and sheet metal.
Suitable for inner and outer edges.
Suitable for contour shapes and rounding drilled holes.
Compact and ergonomic design weighing 2.52kg without battery.
45° bevel angle for consistent edge preparation.
Radius settings of 1.2mm and 2.5mm.
Milling head fitted for 3 × SX indexable tips.
Indexable inserts can be used multiple times, reducing replacement frequency.
Soft start helps provide controlled machine startup.
Restart protection improves operational safety.
Blockage monitoring helps protect the machine during demanding work.
Electronic overload protection helps prevent motor damage.
Speed preselection allows the operator to adjust the working speed.
Compatible with 18V AMPShare ProCORE batteries and chargers.

Applications

The Fein AKFH 18-5 AS is suitable for:

Sheet metal edge beveling
Metal edge preparation
Preparing edges before coating
Steel edge preparation
Stainless steel edge preparation
Non-ferrous metal edge preparation
Beveling flat metal materials
Beveling containers
Inner-edge machining
Outer-edge machining
Contour edge machining
Rounding drilled holes
Workshop fabrication
Construction-site installation work
Industrial maintenance
Preparation of surfaces for subsequent coatings

FEIN specifically describes the tool for producing bevels and radii on flat materials, sheet metals and containers, including inner/outer edges, contours and holes.

Beveling Capacity

Maximum bevel length: 5mm at 45°

Maximum bevel height: 3.5mm at 45°

Bevel angle: 45°

Available radii: 1.2mm / 2.5mm

The actual result depends on the material, selected accessories and working conditions.

Safety & Protection Features

The AKFH 18-5 AS incorporates several electronic protection features for professional operation:

Soft start
Restart protection
Blockage monitoring
Electronic overload protection
Variable speed preselection

These features help provide controlled startup and protection during demanding edge-machining operations.

Key Benefits

Powerful Cordless Performance

The 18V AMPShare platform provides cordless mobility for workshop and construction-site applications.

High-Speed Edge Preparation

With a speed range of 2,400–7,500 rpm, the tool can be adapted to different materials and working requirements.

5mm Bevel Capacity

The machine produces bevels up to 5mm in length at 45°, making it suitable for a variety of professional edge-preparation tasks.

Compact & Ergonomic

At only 2.52kg without the battery, the AKFH 18-5 AS is designed for comfortable mobile operation.

Versatile Metalworking

The machine supports beveling and radius work on sheet metal, flat materials, containers, edges, contours and holes.

AMPShare Compatibility

The tool works with compatible 18V AMPShare ProCORE batteries and chargers and is also suitable for compatible Bosch Professional 18V cordless systems.

Important SKU Information

71380262000 = Fein AKFH 18-5 AS N00 cordless beveller

It is not a jigsaw. FEIN's product classification and official technical data identify this model as a cordless beveller for beveling/edge milling up to 5mm.

Fein 18V Cordless Beveller AKFH 18-5 AS N00 71380262000 | 5mm Metal Edge Beveling Machine 7500 RPM AMPShare
