The Fein AKFH 18-5 AS Basic Chamfer Set is a powerful 18V cordless bevelling machine designed for producing precise 45° chamfers and radii on flat materials, sheet metals, containers, inner and outer edges, contour shapes and holes. Its compact, ergonomic construction provides high material-removal performance with relatively little effort, making it suitable for flexible workshop and construction-site applications.

Powered by a brushless FEIN PowerDrive motor, the AKFH 18-5 AS offers variable speed adjustment from 2,400 to 7,500 RPM, allowing the operator to select a suitable speed for different materials and applications. The machine can produce a maximum bevel length of 5 mm at 45° and a maximum bevel height of 3.5 mm.

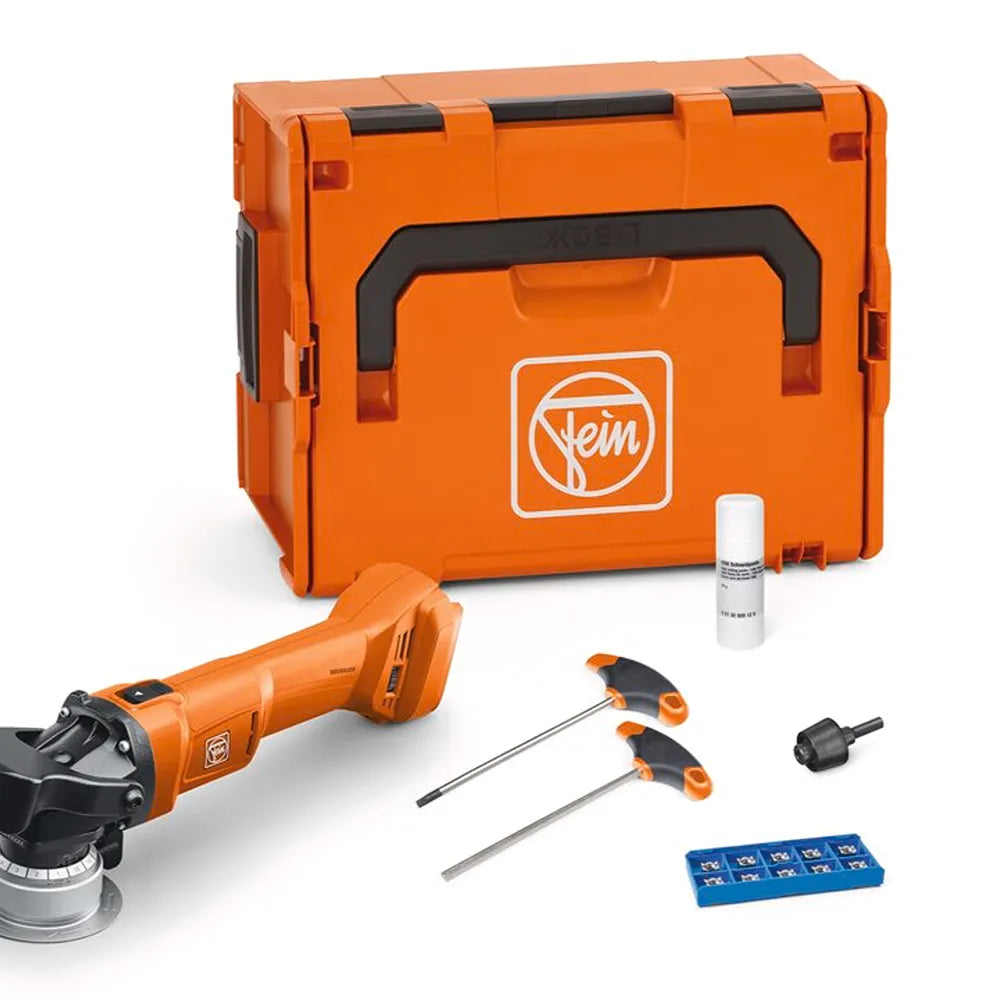

The Basic Chamfer Set includes the 45° milling head, SX indexable tips, guide roller and essential accessories, packed in an L-BOXX 238. The 71380561000 version does not include batteries or a charger.

Key Features

18V cordless bevelling machine with AMPShare battery interface
Powerful brushless FEIN PowerDrive motor
Variable no-load speed of 2,400–7,500 RPM
Maximum bevel length: 5 mm at 45°
Maximum bevel height: 3.5 mm at 45°
Fixed 45° bevel angle
Radius options: 1.2 mm / 2.5 mm
3 × SX indexable-tip milling head configuration
98 mm support plate diameter
High material removal with low operating force
Compact and ergonomic design
Soft start for controlled starting
Restart protection
Blockage/jam monitoring
Electronic overload protection
Speed preselection
Compatible with 18V AMPShare ProCORE batteries and chargers
Also compatible with Bosch Professional 18V battery systems
L-BOXX system for convenient storage and transport

Technical Specifications

Specification	Details
Brand	Fein
Model	AKFH 18-5 AS
Product Number	7 138 05 61 00 0
Part Number	71380561000
Product Type	Cordless Bevelling Machine / Chamfering Machine
Battery Voltage	18V
Battery Interface	18V AMPShare
Battery Compatibility	Li-ion / ProCORE Li-ion
No-Load Speed	2,400–7,500 RPM
Maximum Bevel Length at 45°	5 mm
Maximum Bevel Height at 45°	3.5 mm
Bevel Angle	45°
Radius	1.2 / 2.5 mm
Milling Head Configuration	3 × SX Tip
Support Plate Diameter	98 mm
Weight Without Battery	2.52 kg
Sound Pressure Level	89.7 dB
Sound Power Level	97.7 dB
Vibration Value	3.1 / 4.5 m/s²
Battery & Charger	Not included

Technical specifications are based on FEIN's current product data for the AKFH 18-5 AS platform.

Applications

The Fein AKFH 18-5 AS can be used for:

Creating 45° chamfers on sheet metal
Edge preparation before painting or coating
Preparing flat metal materials
Bevelling inner and outer edges
Working on containers and fabricated metal components
Producing contour chamfers
Rounding holes and edges
Workshop fabrication
Installation and construction-site work
Preparing surfaces for subsequent coatings

Key Benefits

Cordless freedom: Work without a mains power cable when paired with a compatible 18V AMPShare battery.
High-speed performance: 2,400–7,500 RPM variable speed range supports different material and finishing requirements.
Precise 45° chamfering: Produces bevels up to 5 mm in length.
Professional edge preparation: Suitable for preparing metal edges before subsequent coating or finishing.
Long service life: Brushless FEIN PowerDrive motor is designed for high performance and durability.
Enhanced protection: Soft start, restart protection, jam monitoring and electronic overload protection help protect the tool and operator.
Portable storage: Supplied with an L-BOXX 238 for transportation and organized storage.

Fein 18V Cordless Bevelling Machine AKFH 18-5 AS Basic Chamfer Set 71380561000 | 5mm 45° Metal Edge Beveler 7500 RPM AMPShare
