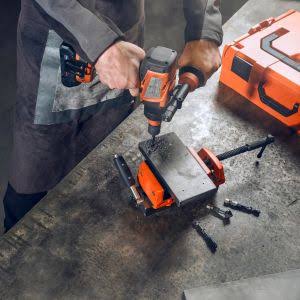

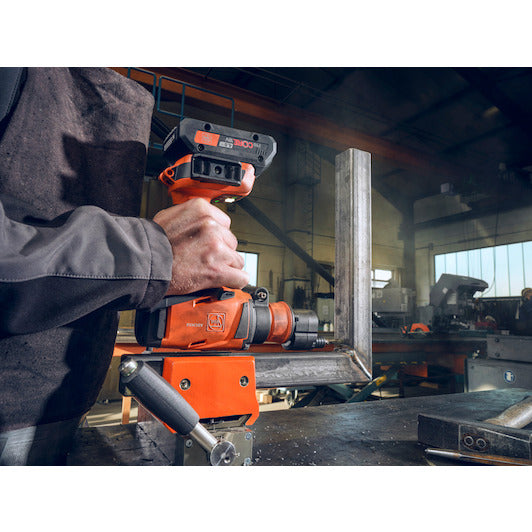

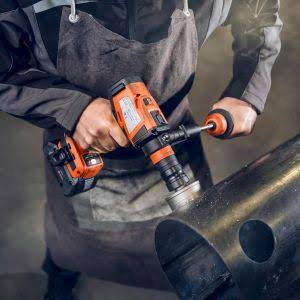

The Fein ASCM 18-4 QM AS N00 is a professional 18V cordless drill driver designed for demanding drilling, tapping, countersinking and screwdriving applications. The Part No. 71161561000 is confirmed as the ASCM 18-4 QM AS N00 model.

It features a powerful brushless FEIN PowerDrive motor, a 4-speed solid-metal gearbox and the versatile FEIN QuickIN interface. With speeds up to 4,000 RPM and maximum torque of 130Nm, it is particularly well suited for professional metalworking while remaining versatile for timber and general assembly applications.

The QuickIN system allows attachments to be changed quickly without tools, enabling the same drill driver to be used for drilling, core drilling, tapping, countersinking and screwdriving. Kickback monitoring helps stop the tool in a sudden blockage situation, while the extendable auxiliary handle provides improved control during demanding work.

Product Features & Specifications

Brand: Fein
Model: ASCM 18-4 QM AS N00
Part Number: 71161561000
Product Type: Cordless Drill Driver
Battery Voltage: 18V
Battery Platform: 18V AMPShare
Battery Compatibility: Li-ion / ProCORE Li-ion
Motor: Brushless FEIN PowerDrive
Gearbox: 4-speed solid metal
Accessory Interface: QuickIN
No-Load Speed: 430 / 850 / 2,000 / 4,000 RPM
Maximum Torque: 130Nm
Hard Torque: 70Nm
Soft Torque: 50Nm
Torque Settings: 15 + 1
Drill Chuck Capacity: 1.5–13mm
Fastening Capacity: 10 × 400mm
Steel Twist Drill Capacity: 13mm
Steel Core Drill Capacity: 30mm
Steel Hole Saw Capacity: 80mm
Wood Drilling Capacity: 60mm
Tapping Capacity: M14
Weight Without Battery: 1.30kg
Battery & Charger: Not included – N00 configuration

Drilling & Tapping Capabilities

The ASCM 18-4 QM AS provides extensive professional metalworking capability:

Application	Capacity
Steel Twist Drill	13mm
Steel Core Drill	30mm
Steel Hole Saw	80mm
Wood Drilling	60mm
Fastening	10 × 400mm
Tapping	M14
Drill Chuck	1.5–13mm

These specifications make it suitable for both general workshop work and demanding metalworking applications.

Fein 18V Cordless Drill Driver ASCM 18-4 QM AS N00 Part No 71161561000 | 130Nm Brushless 4-Speed Drill with QuickIN, 15+1 Torque Settings, 430–4000 RPM & 13mm Chuck for Drilling, Tapping and Screwdriving
