The Fein ASCM 18-4 QM AS Universal Top Set 71161562000 is a high-performance 18V cordless drill driver designed for demanding drilling, screwdriving, tapping, countersinking and core drilling applications. It features a brushless FEIN PowerDrive motor, a robust 4-speed all-metal gearbox and the versatile QuickIN accessory interface, making it suitable for a wide range of professional applications.

The drill delivers up to 130Nm of maximum torque and offers four speed settings from 430 to 4000 RPM, allowing users to select an appropriate speed for different materials and applications. The 1.5–13mm QuickIN metal drill chuck provides secure bit clamping and can be changed quickly without tools.

The ASCM 18-4 QM AS is designed for applications including drilling in steel and wood, tapping up to M14, core drilling in steel and hole-saw applications. Its electronic torque shut-off and kickback monitoring help provide controlled and safer operation during demanding work.

The Universal Top Set includes an 18V 5.0Ah battery, GAL 1880 CV AS rapid charger, 8-piece bit set and L-BOXX 136 tool case, providing a complete setup for professional drilling and fastening work.

Product Features & Specifications

Brand: Fein
Product Type: Cordless Drill Driver Set
Model: ASCM 18-4 QM AS
Part Number: 71161562000
Battery Voltage: 18V
Battery Capacity: 5.0Ah
Motor: Brushless FEIN PowerDrive
Gearbox: 4-Speed All-Metal
QuickIN Interface: Yes
No-Load Speed: 430 / 850 / 2000 / 4000 RPM
Maximum Torque: 130Nm
Hard Torque: 70Nm
Soft Torque: 50Nm
Torque Settings: 15 + 1
Chuck Capacity: 1.5–13mm
Steel Twist Drill Capacity: 13mm
Steel Core Drill Capacity: 30mm
Steel Hole Saw Capacity: 80mm
Wood Drilling Capacity: 60mm
Tapping Capacity: M14
Fastening Capacity: 10 × 400mm
Battery Interface: 18V AMPShare
Weight Without Battery: 1.30kg
LED Work Light: Dimmable
Electronic Torque Shut-Off: Yes
Kickback Monitoring: Yes
Electronic Overload Protection: Yes
Tool Case: L-BOXX 136

Key Benefits

Powerful 130Nm Torque: Provides high torque for demanding drilling, screwdriving and tapping applications.
18V Brushless Motor: FEIN PowerDrive technology provides efficient performance and helps extend motor service life.
4-Speed Gearbox: Offers 430, 850, 2000 and 4000 RPM settings for precise speed selection across different applications.
QuickIN System: Allows compatible accessories to be changed quickly without requiring additional tools.
Solid Metal Drill Chuck: The 1.5–13mm QuickIN chuck features carbide-tipped clamping jaws for strong bit retention.
Professional Metalworking Capability: Suitable for drilling steel, core drilling, hole-saw applications and tapping up to M14.
15+1 Torque Settings: Provides controlled torque adjustment for different fastening requirements.
Kickback Monitoring: Helps stop the tool when a sudden blocking or kickback situation is detected.
Electronic Torque Shut-Off: Helps provide consistent and controlled screwdriving performance.
Dimmable LED: Illuminates the work area for improved visibility.
5.0Ah Battery: Provides substantial cordless operating capacity for professional applications.
AMPShare Compatibility: Works within the 18V AMPShare battery system.
Complete Professional Kit: Supplied with battery, rapid charger, bit set and L-BOXX storage case.

Kit Contents

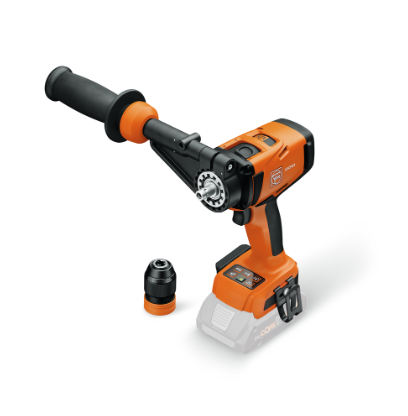

1 × Fein ASCM 18-4 QM AS Cordless Drill Driver
1 × 18V 5.0Ah GBA Battery
1 × GAL 1880 CV AS Rapid Charger
1 × 8-Piece Bit Set
1 × L-BOXX 136 Tool Case
1 × Auxiliary Handle
1 × Belt Clip
1 × Bit Holder

Fein 18V Cordless Drill Driver Set ASCM 18-4 QM AS Universal Top Part No 71161562000 | 130Nm 4-Speed Brushless Drill with QuickIN, 5Ah Battery, Charger, Bit Set & L-BOXX
