The Fein ABH 18-26 AS Set 5 Ah is a professional 18V cordless rotary hammer drill designed for drilling and chiselling applications in concrete, masonry, steel and wood. Powered by a high-performance brushless motor, it delivers 2.6 J impact energy and up to 4,350 impacts per minute for rapid drilling progress and effective chiselling.

With an SDS-plus tool holder and a maximum drilling capacity of 26 mm in concrete, the ABH 18-26 AS is well suited to construction, installation, renovation and professional building-site applications. The compact design and low-vibration operation support comfortable use during demanding work.

This Set 5 Ah version includes two GBA 18V 5.0 Ah AS Li-ion batteries, a GAL 1880 CV AS rapid charger and an L-BOXX 136 tool case, providing a complete cordless solution for professional users.

Key Features

Professional 18V cordless rotary hammer drill
Powerful brushless motor
2.6 J impact energy
0–980 RPM no-load speed
0–4,350 BPM impact rate
SDS-plus tool holder
Maximum 26 mm drilling capacity in concrete
Maximum 68 mm drilling capacity in masonry
Maximum 13 mm drilling capacity in steel
Maximum 30 mm drilling capacity in wood
Kickback Monitoring with intelligent rapid shutdown
Electronic Precision Control (EPC) for controlled starting
Variable speed control through throttle
Vario-Lock with 36 chisel positions
Integrated LED work light
Compact, ergonomic and low-vibration design
Compatible with 18V AMPShare batteries
Compatible with Bosch Professional 18V batteries
Supplied with 2 × 5 Ah batteries
Includes GAL 1880 CV AS rapid charger
Supplied in L-BOXX 136 tool case

Technical Specifications

Specification	Details
Brand	Fein
Model	ABH 18-26 AS Set 5 Ah
Product Number	7 140 03 62 00 0
Part Number	71400362000
Product Type	Cordless Rotary Hammer Drill
Battery Voltage	18V
Battery Capacity	5 Ah
Battery Interface	18V AMPShare
Battery Compatibility	Li-ion / ProCORE Li-ion
Motor	Brushless
No-Load Speed	0–980 RPM
Impact Rate	0–4,350 BPM
Impact Energy	2.6 J
Tool Holder	SDS-plus
Concrete Drilling Capacity	26 mm
Masonry Drilling Capacity	68 mm
Steel Drilling Capacity	13 mm
Wood Drilling Capacity	30 mm

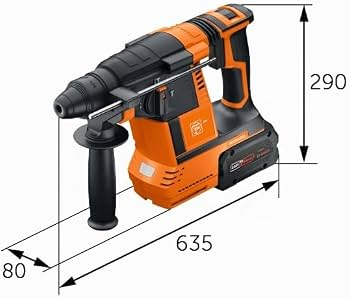

Weight Without Battery	3.20 kg
Sound Pressure Level	88 dB
Sound Power Level	99 dB
Vibration Value 1	15.2 m/s²
Vibration Value 2	9.9 m/s²
Batteries Included	2 × GBA 18V 5.0 Ah AS
Charger Included	GAL 1880 CV AS Rapid Charger
Tool Case	L-BOXX 136

Specifications are based on FEIN's official product information for product number 7 140 03 62 00 0.

Applications

The Fein ABH 18-26 AS Set 5 Ah is suitable for:

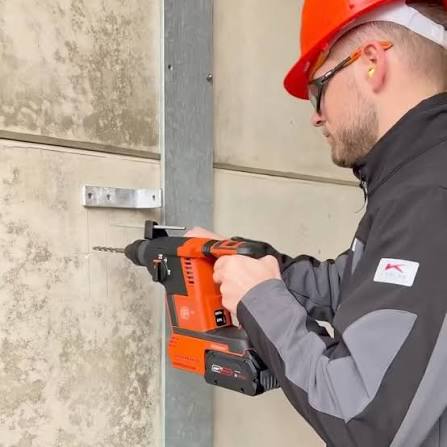

Drilling holes in concrete
Drilling in masonry and brickwork
Concrete anchor installation
Drilling in steel
Drilling in wood
Electrical installation work
Plumbing and pipe installation
Construction and renovation
Chiselling applications
Light demolition work
Fixing and mounting applications
Professional building-site work

Safety & Performance Features

Kickback Monitoring

The integrated Kickback Monitoring system detects sudden kickback and can rapidly shut down the hammer drill, helping provide enhanced user protection.

Electronic Precision Control

EPC gradually increases the working speed to provide improved handling and control, particularly when starting work on sensitive materials or challenging surfaces.

Vario-Lock

The Vario-Lock system allows the chisel to be locked into 36 different positions, helping the user select a suitable chisel orientation for different applications.

AMPShare Battery System

The tool uses the 18V AMPShare battery interface and is compatible with Bosch Professional 18V batteries. The supplied GBA 18V 5.0 Ah AS batteries provide cordless operation without the need for a mains cable.

Key Benefits

2.6 J impact energy for efficient drilling and chiselling
26 mm concrete drilling capacity for professional construction applications
Brushless motor for powerful and efficient cordless operation
Two 5 Ah batteries for extended cordless working
Fast charging with the supplied GAL 1880 CV AS rapid charger
SDS-plus compatibility for a wide range of rotary hammer accessories
Kickback Monitoring for enhanced operational protection
EPC technology for controlled starting and improved handling
36-position Vario-Lock for flexible chisel positioning
Integrated LED for improved visibility in darker work areas
L-BOXX 136 for convenient storage and transportation

Fein 18V Cordless Rotary Hammer Drill ABH 18-26 AS Set 5Ah 71400362000 | SDS-Plus 2.6J 26mm Concrete Hammer with 2x 5Ah Batteries
