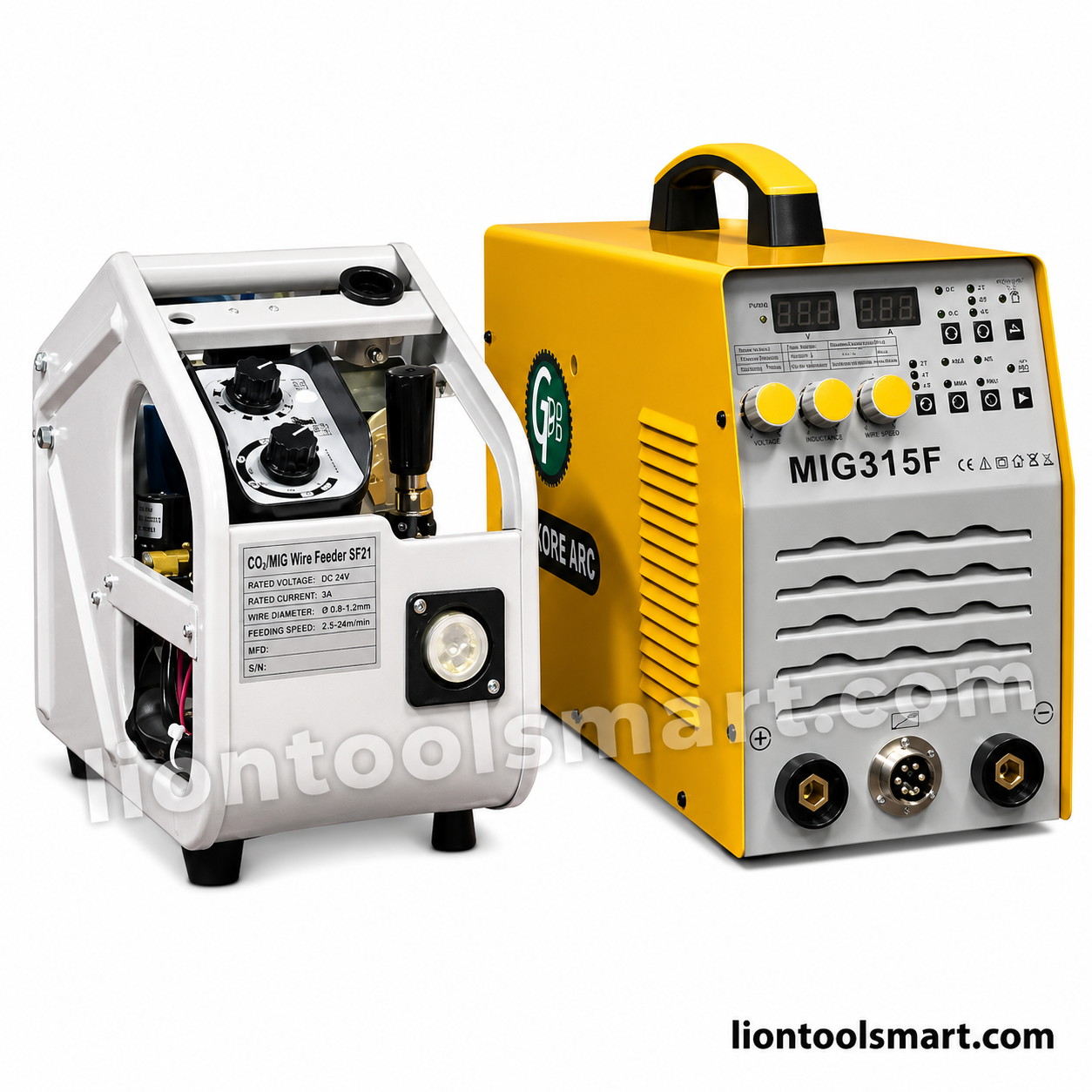

GB MIG 315F Welding Machine – Professional Industrial MIG/MAG Welding Solution

The GB MIG 315F Welding Machine is a heavy-duty 315A CO₂ MIG/MAG inverter welder engineered for industrial fabrication, automotive manufacturing, structural steel work, and workshop applications. Built with advanced IGBT inverter technology, it provides a stable welding arc, smooth wire feeding, deep penetration, and low spatter, ensuring consistent, high-quality welds with improved efficiency.

Designed to operate on a 3 Phase 380–415V AC power supply, the machine features an integrated wire feeder, digital display, and continuously adjustable welding parameters. It supports 0.8mm and 1.0mm MIG welding wire, making it ideal for welding mild steel, carbon steel, and low-alloy steel in demanding industrial environments.

Features:

Brand: GB
Model: MIG 315F
Product Type: CO₂ MIG/MAG Inverter Welding Machine
Technology: Advanced IGBT Inverter Technology
Input Voltage: 3 Phase AC 380–415V
Frequency: 50/60Hz
Output Current Range: 50–315A
Maximum Output Current: 315A
Built-in Wire Feeder
Digital Current & Voltage Display
Stable Arc with Low Spatter
Smooth and Consistent Wire Feeding
Deep Weld Penetration
Suitable for CO₂ and Mixed Shielding Gas
Supports 0.8mm & 1.0mm Welding Wire
Forced Air Cooling System
Over-Voltage, Over-Current & Thermal Protection
Designed for Continuous Industrial Welding

Specifications:

Input Voltage: 3 Phase AC 380–415V
Rated Input Power: 14.4kVA
Output Current: 50–315A
Output Voltage: 16–29.8V
No Load Voltage: 67V
Duty Cycle: 40% @ 315A / 60% @ 260A
Wire Feed Speed: 0.8–24m/min
Wire Diameter: 0.8mm & 1.0mm
Protection Class: IP21S
Insulation Class: F
Dimensions: 530 × 250 × 430mm

GB Kore MIG 315F Welding Machine | 315A 3 Phase IGBT CO₂ MIG/MAG Inverter Welder
