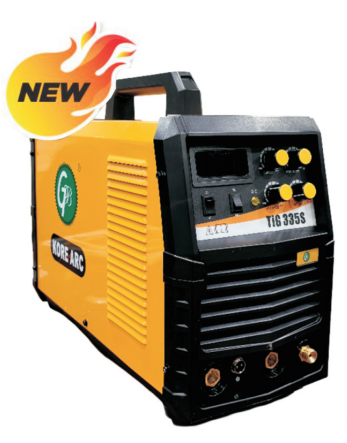

GB TIG 335/335S Welding Machine | Advanced IGBT Inverter Technology

Advanced IGBT Inverter Technology Delivers Superior TIG Performance.
Digital Instrument For The Welding Current
Auto-Protection Against Over-Voltage, Over Current And Over Heated High
Performance Ensure Continuous And Stable Operation Of Welder 2T/4T Function
It Can Used For Welding Of Stainless Steel, Carbon Steel, Copper and Other Colour Metals As Well
The Machine Is Also Compatible And Can Be Used For Traditional Electric Welding
Offers Best In Class Finishing And Efficiency
Labour Savings Of Upto 55%
Power Savings Of Upto 55%

________________________________________________________________________________________________

________________________________________________________________________________________________

PARAMETERS	TIG 335S
POWER VOLTAGE(V)	AC240V±15%
FREQUENCY (HZ)	50/60
RATED INPUT CURRENT (A)	33.6
NO-LOAD VOLTAGE (V)	62
Output current regulation(TIG)（A）	20-335
Rated Output Voltage(TIG)（V）	20
Output Current Regulation (MMA)（A）	20-250
Rated Output Voltage (MMA)（V）	-
Duty cycle（%）	60
No-load loss (W）	40
Power (%）	85
POWER FACTOR	0.73
INSULATION GRADE	F
Protective Grade	IP21
WEIGHT(KG)	13.7kg
Machine Dimension (mm)	490x220x380
Package Dimension (mm）	565x310x425
