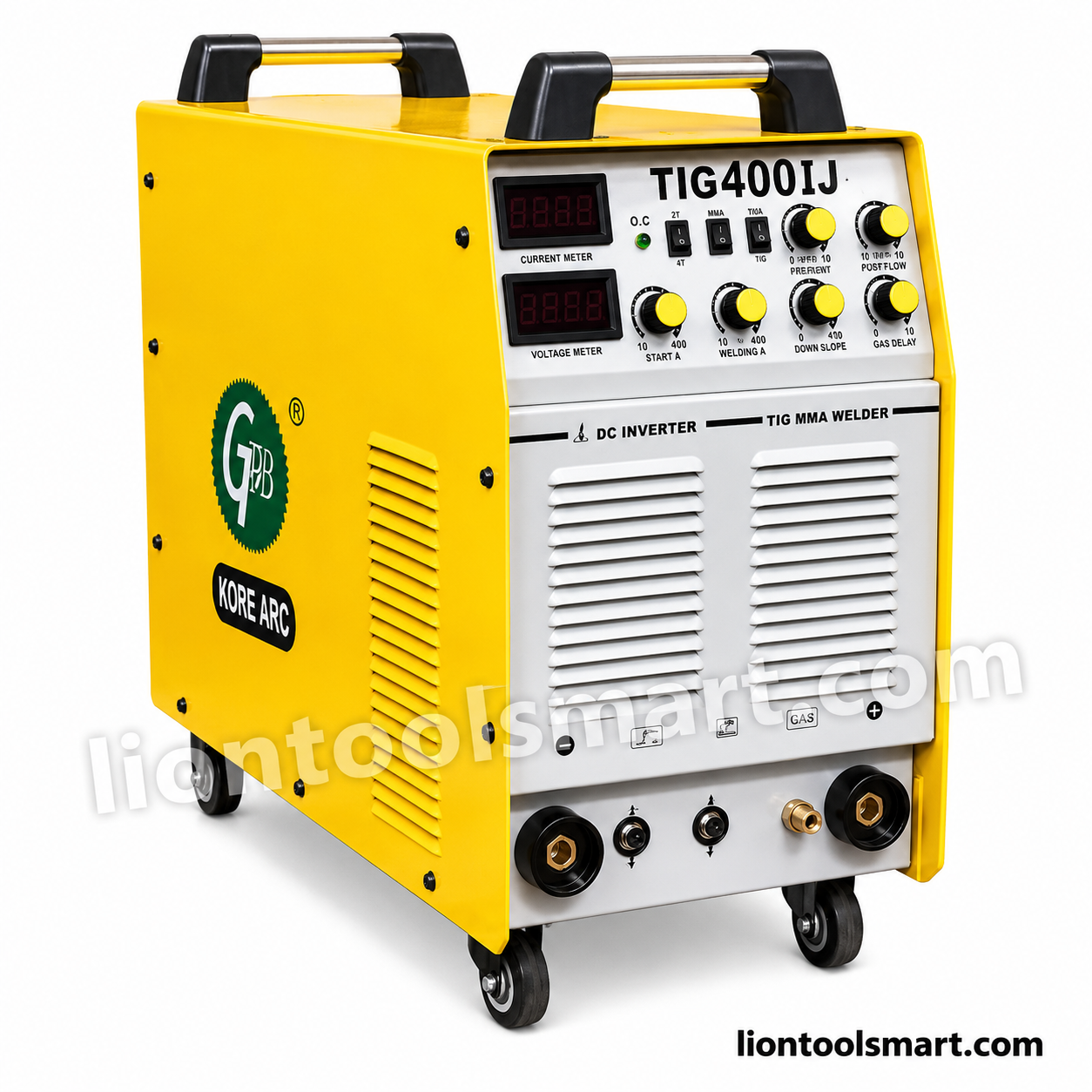

GB TIG 400IJ IGBT MOSFET Welding Machine – Heavy-Duty Industrial TIG & MMA Welding Solution

The GB TIG 400IJ IGBT MOSFET Welding Machine is a high-performance industrial inverter welder designed for DC TIG (GTAW) and MMA (Stick) welding applications. Built with advanced IGBT inverter technology, it delivers excellent arc stability, high energy efficiency, and reliable performance for continuous heavy-duty fabrication and maintenance work. It supports HF (High Frequency) arc starting, making TIG arc ignition smooth and precise while producing high-quality welds with minimal spatter.

Operating on a 3 Phase AC 415V power supply, the TIG 400IJ offers an output current range of 10–400A, making it suitable for welding stainless steel, carbon steel, copper, and other ferrous and non-ferrous metals. With adjustable pulse frequency, upslope/downslope, start and stop current control, and post-gas flow adjustment, it provides excellent flexibility for professional welding applications.

Features:

Brand: GB
Model: TIG 400IJ
Product Type: TIG & MMA Inverter Welding Machine
Technology: Advanced IGBT Inverter Technology
Input Voltage: 3 Phase AC 415V ±15%
Frequency: 50/60Hz
Output Current Range: 10–400A
Maximum Output Current: 400A
Welding Processes: DC TIG & MMA (Stick)
HF (High Frequency) Arc Start
Digital Welding Current Display
Adjustable Arc Initiation Current
Adjustable Arc Stop Current
Adjustable Base Current
Adjustable Pulse Frequency
Current Upslope & Downslope Adjustment
Gas Post Flow Time Adjustment
Auto Protection Against Over-Voltage, Over-Current & Overheating
Forced Air Cooling System
Suitable for continuous industrial operation

Specifications:

Input Voltage: 3 Phase AC 415V ±15%
Output Current: 10–400A
No Load Voltage: 80V
Duty Cycle: 60%
Efficiency: 85%
Power Factor: 0.93
Pulse Frequency: 0.5–15Hz (LF), 14–450Hz (MF)
Post Gas Flow: 1–10 Seconds
Protection Class: IP21S
Insulation Class: H
Dimensions: 560 × 300 × 550mm

Applications:

Stainless steel fabrication
Carbon steel welding
Copper fabrication
Industrial fabrication
Pressure vessel manufacturing
Pipeline fabrication
Heavy engineering
Manufacturing industries
Workshop maintenance
Structural steel fabrication

GB Kore TIG 400IJ IGBT MOSFET Welding Machine | 400A 3 Phase TIG & MMA Inverter Welder
