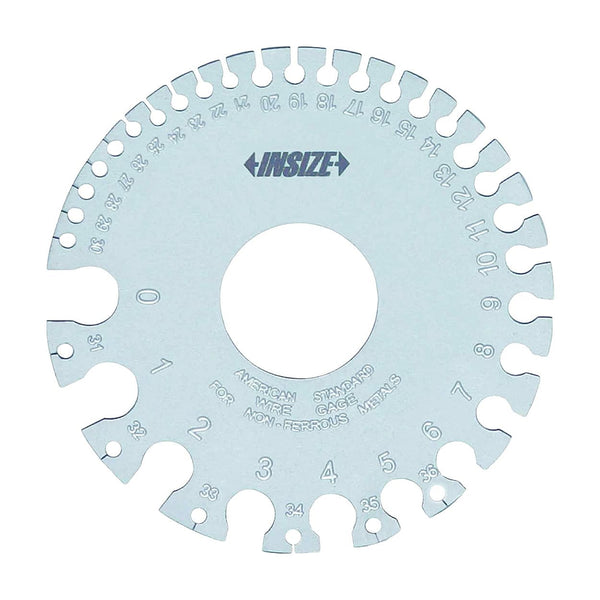

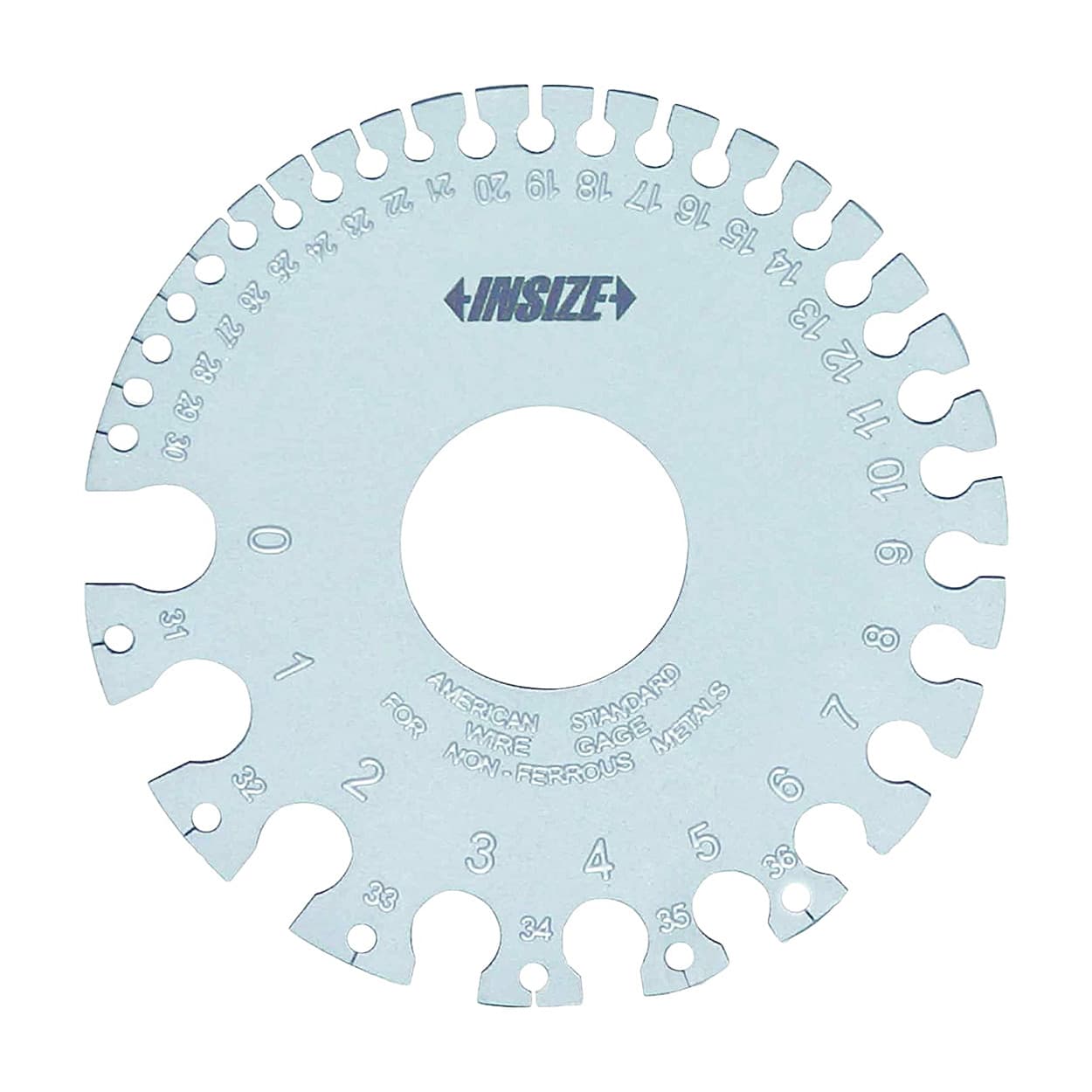

The Insize American Standard Wire Gauge 4808 (0–36 AWG) is a precision measuring tool designed for accurately determining wire diameters in electrical, industrial, and workshop applications. Covering a wide range from 8.250mm to 0.127mm (0.3249" to 0.0050"), it is ideal for measuring and identifying wire sizes based on the American Wire Gauge (AWG) standard.

This gauge features clearly marked slots corresponding to different AWG sizes, allowing quick and easy wire size identification. Manufactured with durable material, it ensures long-lasting performance and reliable measurements in demanding environments.

Compact and easy to use, this tool is essential for electricians, engineers, technicians, and quality inspection professionals.

TECHNICAL DETAILS:

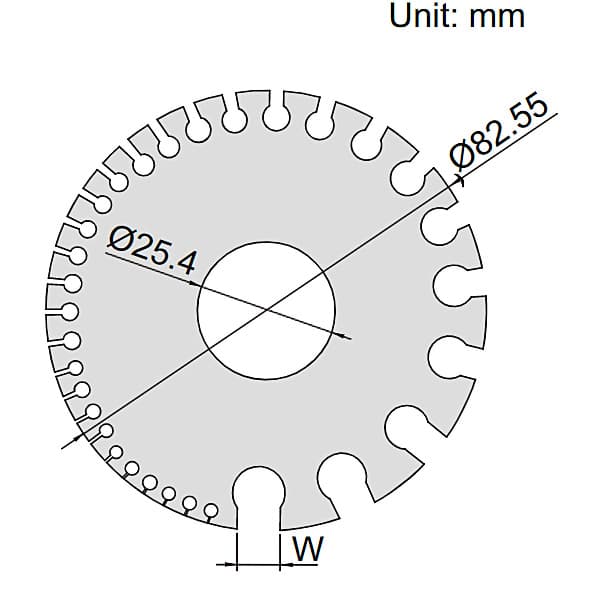

No	W	No	W
0	8.250 mm / 0.3249"	18	1.020 mm / 0.0403"
1	7.350 mm / 0.2893"	19	0.912 mm / 0.0359"
2	6.540 mm / 0.2294"	20	0.813 mm / 0.0320"
3	5.830 mm / 0.2294"	21	0.724 mm / 0.0285"
4	5.190 mm / 0.2043"	22	0.643 mm / 0.0253"
5	4.620 mm / 0.1819"	23	0.574 mm / 0.0226"
6	4.110 mm / 0.1620"	24	0.511 mm / 0.0226"
7	3.670 mm / 0.1443"	25	0.440 mm / 0.0179"
8	3.260 mm / 0.1285"	26	0.404 mm / 0.0159"
9	2.910 mm / 0.1144"	27	0.361 mm / 0.0142"
10	2.590 mm / 0.1019"	28	0.320 mm / 0.0126"
11	2.300 mm / 0.0907"	29	0.287 mm / 0.0113"
12	2.050 mm / 0.0808"	30	0.254 mm / 0.0100"
13	1.820 mm / 0.0720"	31	0.226 mm / 0.0089"
14	1.630 mm / 0.0641"	32	0.203 mm / 0.0080"
15	1.450 mm / 0.0571"	33	0.180 mm / 0.0071"
16	1.290 mm / 0.0508"	34	0.160 mm / 0.0063"
17	1.150 mm / 0.0453"	35	0.142 mm / 0.0056"
		36	0.127 mm / 0.0050"

KEY FEATURES:

Measuring range: AWG 0–36
Diameter range: 8.250–0.127mm (0.3249"–0.0050")
Designed for American Standard Wire Gauge measurement
Clearly marked slots for easy identification
High accuracy and reliable performance
Durable and robust construction
Compact and lightweight design
Ideal for electrical, industrial, and workshop use
