Professional Digital Inside Groove Caliper for Accurate Internal Groove Measurement

Product Description:

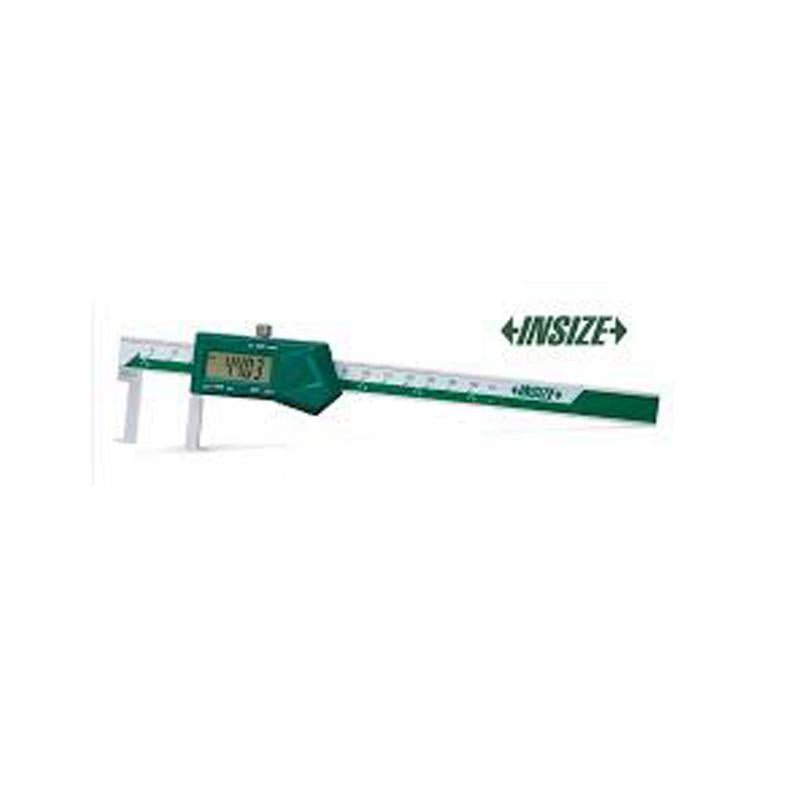

INSIZE 1120-150A Digital Inside Groove Caliper is a specialized precision measuring instrument designed for accurate measurement of internal groove diameters, retaining ring grooves, recesses, and small bore grooves. With a measuring range of 22-150mm (0.87-6 Inch), this digital groove caliper is ideal for machining, manufacturing, engineering, inspection, and quality control applications. It is specifically engineered to measure groove diameters that are difficult to access using standard calipers.

Featuring a large LCD digital display, the caliper provides fast and clear readings in both metric and inch units. Functions such as On/Off, Preset, mm/inch conversion, and Zero Setting improve measurement efficiency and accuracy. Manufactured from high-quality stainless steel, the instrument offers excellent durability, corrosion resistance, and long-term measuring stability.

The built-in data output interface allows connection to SPC and data collection systems for inspection reporting and quality documentation. Designed for machinists, engineers, inspectors, toolmakers, and quality control professionals, the INSIZE 1120-150A Digital Inside Groove Caliper delivers reliable and repeatable measurement performance.

Features:

Measuring range: 22-150mm (0.87-6 Inch)
Designed for internal groove diameter measurement
Large LCD digital display
Metric/Inch conversion
Preset and zero-setting functions
Data output interface
Automatic power off
High measuring accuracy
Stainless steel construction
Resolution: 0.01mm / 0.0005 Inch

Applications:

Internal groove measurement
Retaining ring groove inspection
Bore groove measurement
Internal recess measurement
Precision machining inspection
Manufacturing quality control
Engineering and metrology applications

Benefits:

Measures grooves inaccessible to standard calipers
Fast and accurate digital readings
Supports metric and inch measurement systems
Durable stainless steel construction
Data output for inspection records
Improves measurement efficiency and repeatability

Specifications:

Brand: INSIZE
Model: 1120-150A
Product Type: Digital Inside Groove Caliper
Measuring Range: 22-150mm / 0.87-6 Inch
Accuracy: ±0.04mm
Resolution: 0.01mm / 0.0005 Inch
Display: LCD Digital Display
Material: Stainless Steel
Overall Length (L): 250mm
Lower Jaw Length (D): 30mm
Tip Thickness (E): 1mm
Data Output: Yes
Battery: CR2032
Weight: Approx. 0.53 kg (1.17 lbs)
Operation: Digital
Application: Internal Groove, Bore & Recess Measurement
