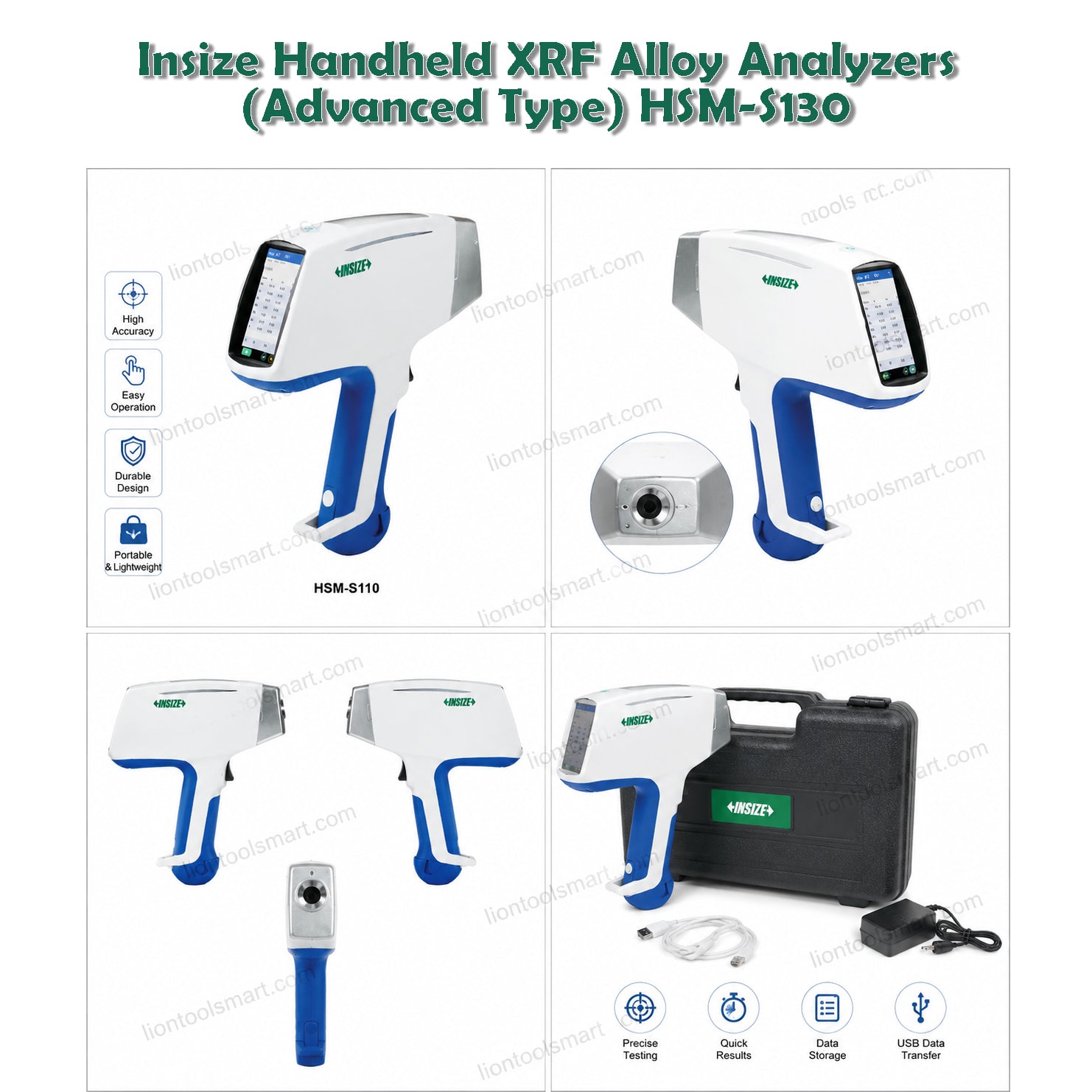

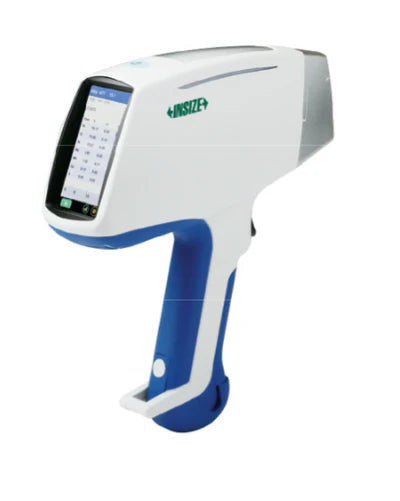

The Handheld XRF Alloy Analyzer (Advanced Type) HSM-S130 is a high-performance portable elemental analysis instrument designed for rapid and non-destructive alloy identification and plating analysis. Equipped with advanced SDD detector technology, it delivers superior accuracy and fast detection of light and heavy elements, making it ideal for industrial metal testing, quality assurance, scrap recycling, aerospace inspection, and Positive Material Identification (PMI).

The analyzer features a rugged ergonomic handheld design, Android operating system, touchscreen interface, and powerful data management capabilities for efficient field and laboratory operations.

Features:

Advanced handheld XRF alloy analyzer
Fast non-destructive elemental analysis
Supports alloy and plating analysis
High-performance SDD detector technology
Detects elements from Mg to U
One-touch rapid analysis within seconds
High-resolution touchscreen display
Built-in alloy grade library with customizable database
Generates Excel and PDF reports
Rugged industrial handheld construction
Suitable for PMI inspection and scrap sorting
Long battery operating time

Specifications:

Model: HSM-S130
Analysis Mode: Alloy Analysis & Plating Analysis
Detector Type: SDD (Silicon Drift Detector)
Elemental Analysis Range: Mg~U
Target Material: Rh Target
Excitation Source: 50kV / 200μA Max.
Display: 4.3-inch Industrial Touchscreen
Operating System: Android
Memory: 32GB
Data Interface: Mini-USB, WiFi, Bluetooth
Battery Capacity: 6600mAh Rechargeable Battery
Working Temperature: -35°C~60°C
Dimensions: 254×79×280 mm
Weight: 1.6 kg
Data Output: Excel & PDF Report Generation
