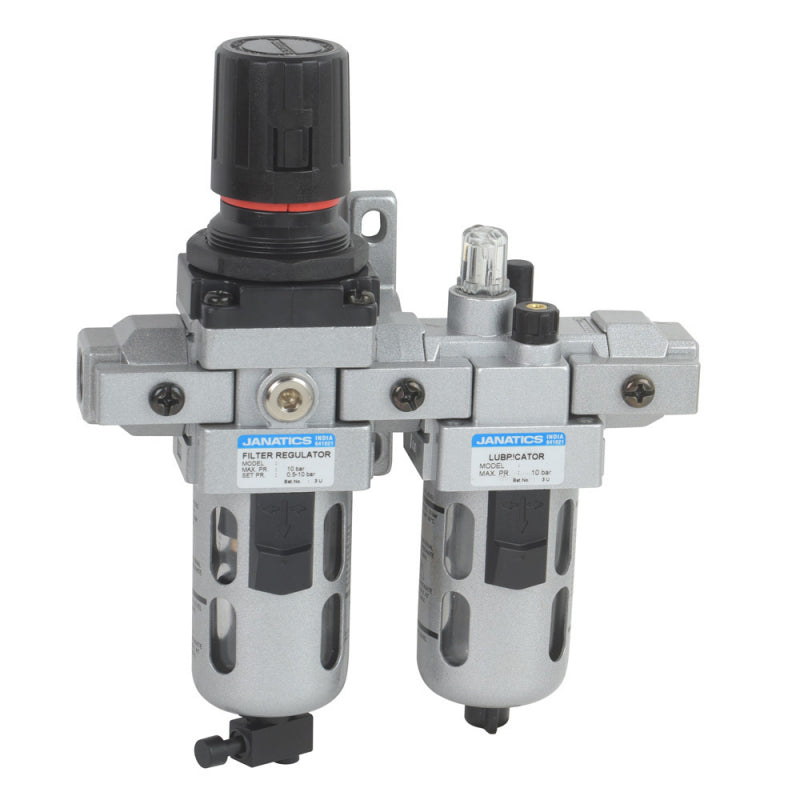

JANATICS FRCLM 136134/W 1/4 FILTER REGULATOR LUBRICATOR MODULAR

Nominal Width:7

Thread Type:BSP

Port Size:1/4

Filteration:40 Microns

Regulating Pressure Range:0.5 - 10 bar

Drain Arrangement:Manual Drain

Bowl Material:Polycarbonate

Flow Rate In LPM:500

Maximum Working Pressure:10 bar

Modular Type:Filter Regulator Combination Lubricator Modular

Modular type for easy and fast maintenance
Suitable for wall mounting
Filter
• Bronze filtering element
• Separator and shield for efficient moisture separation
• Press type manual drain for easy operation
Regulator
• Diaphragm operated, relieving type
• Pressure compensated by Balanced poppet
• ;Non raising Press to Lock adjusting knob for locking at any set pressure
Lubricator
• Fog/Mist type Lubricator
• Fine adjustment of lubrication
• Lubrication proportional to flow
Steel bowlguard, bayonet type on FRCLM14, FRCLM15 and FRCLM17 models and threaded type on FRLM13 model
Good flow and regulating characteristics
