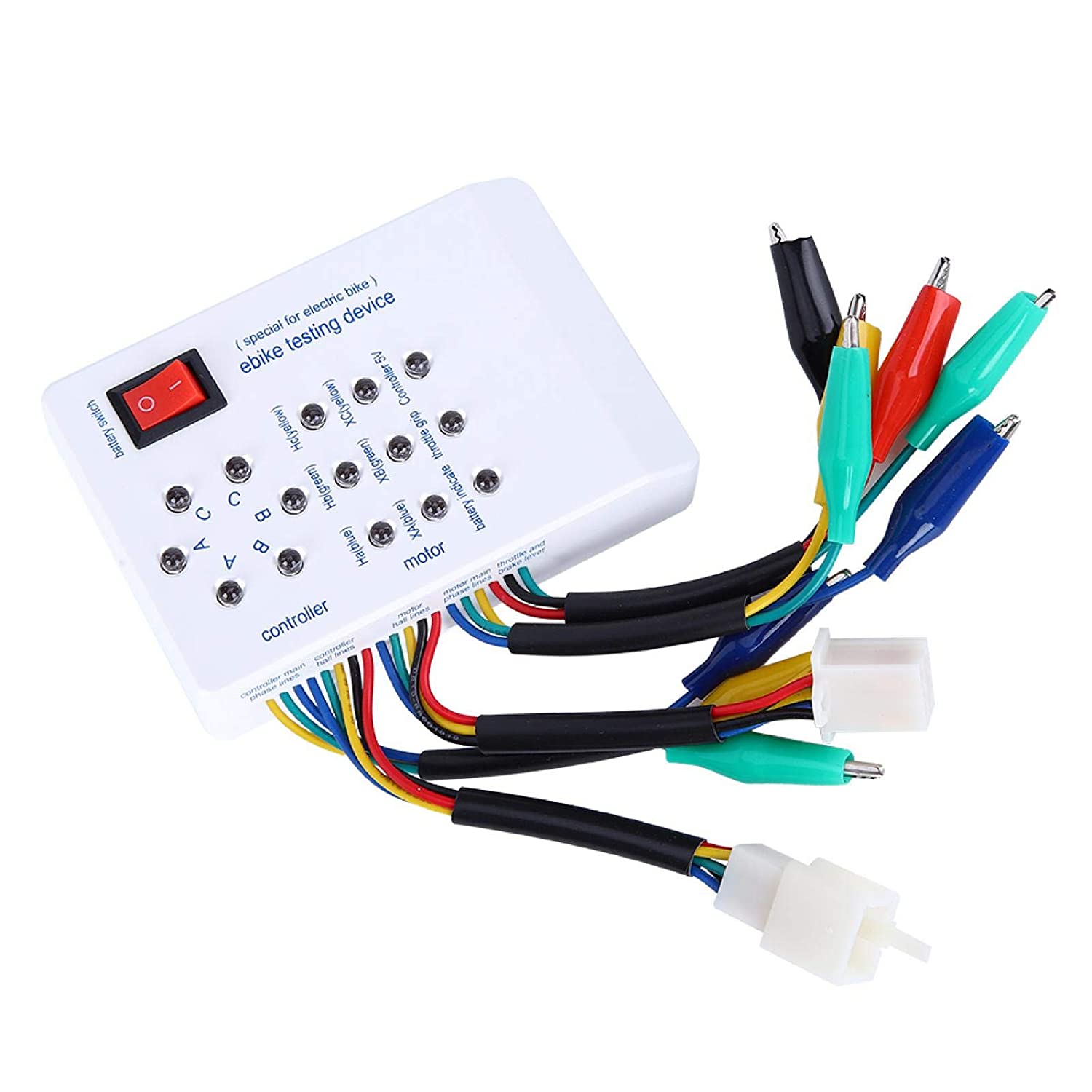

The Lion EV Brushless Motor Tester (also referred to as the Lion EV Testing Device) is an essential diagnostic tool for technicians and electric vehicle enthusiasts. It is designed to quickly identify faults in brushless motors, controllers, and Hall sensors, streamlining the repair process for e-bikes, e-scooters, and e-rickshaws.

Product Features & Diagnostic Capabilities

Comprehensive Motor Testing: Quickly determines if the brushless motor coil is functional or faulty.
Controller Evaluation: Rapidly tests the brushless controller to ensure it is outputting signals correctly.
Hall Sensor Diagnostic: Specifically checks the Hall sensor status within the motor, a common point of failure in EVs.
Phase Sequence & Angle Detection: Automatically identifies the ABC/abc phase sequence and distinguishes between 60-degree and 120-degree phase angles.
Self-Check Function: Features an internal diagnostic mode to verify the tester itself is working correctly before use.
Brake Lever Testing: Capable of checking the signal integrity of vehicle brake levers.

Technical Specifications

Compatibility: Works with 24V, 36V, 48V, 60V, and 72V systems.
Operating Temperature: Reliable performance from -20°C to 50°C.
Dimensions: Compact and portable design (approx. 10.5mm x 7.5mm body).
Application: Suitable for E-Bikes, E-Cycles, and E-Rickshaws
