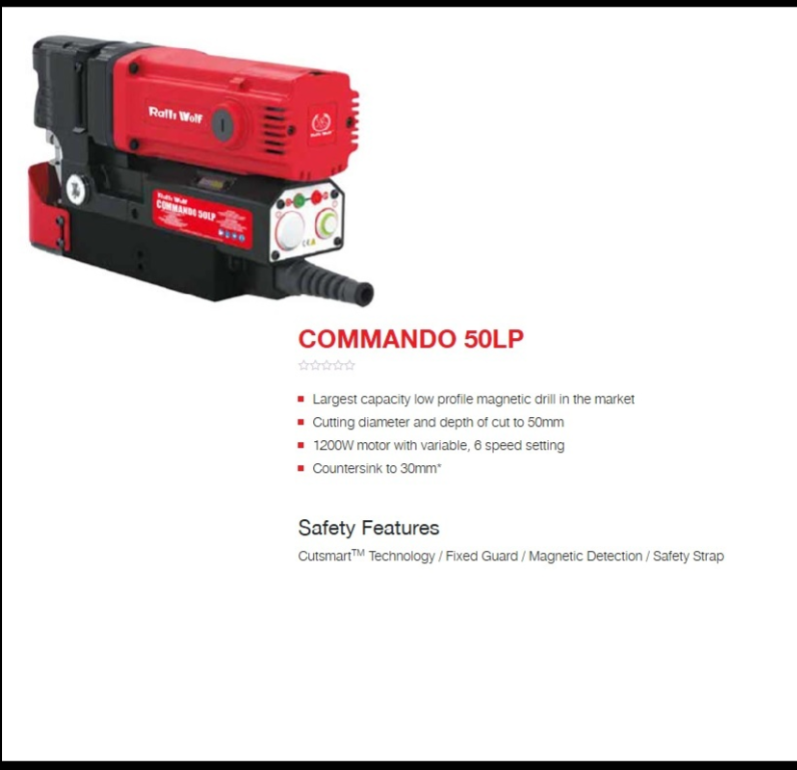

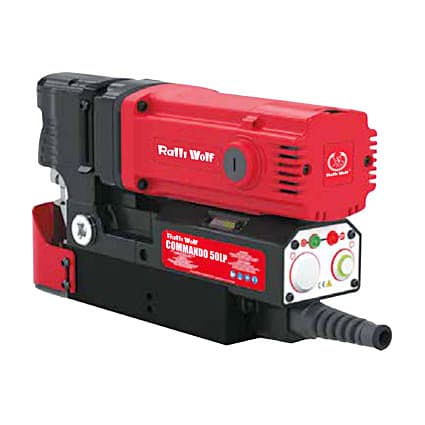

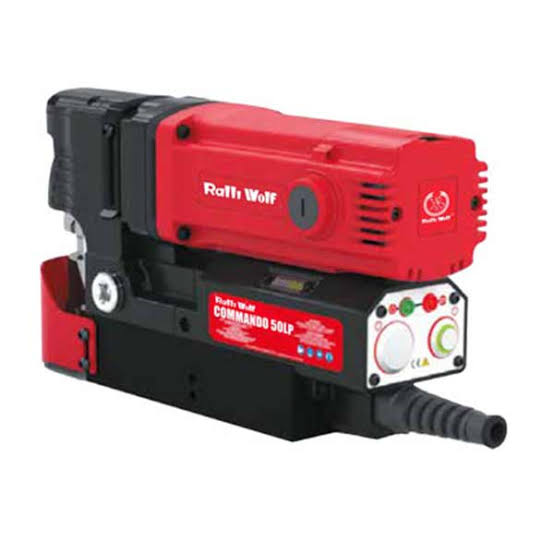

The Ralli Wolf Commando 50LP Magnetic Core Drill Machine is a compact, low-profile drilling solution designed for metal fabrication, structural steelwork and industrial maintenance. Its 1200W motor and six-speed selection provide controlled drilling performance for creating holes up to 50mm in diameter and 50mm deep in suitable ferrous materials.

Designed for confined working spaces, the low-profile body helps operators work where larger magnetic drills may be difficult to position. The machine features variable speed control, a 10,000N magnetic adhesion system and a self-locking 19.05mm adaptor for compatible cutters. Safety features include Cutsmart technology, a fixed guard, magnetic detection and a safety strap.

Key Features

1200W Motor: Designed for dependable metal-drilling performance.
50mm Core Drilling Capacity: Drills holes up to 50mm diameter and 50mm depth.
Low-Profile Design: Suitable for work in restricted-clearance areas.
Six-Speed Selection: Speed range of 250–500 RPM.
Variable Speed Control: Helps adapt operation to different drilling requirements.
10,000N Magnetic Adhesion: Provides strong holding force on compatible ferrous surfaces.
Self-Locking Adaptor: 19.05mm adaptor for compatible core cutters.
30mm Countersinking Capacity: Supports suitable countersinking operations.
Safety Features: Cutsmart technology, fixed guard, magnetic detection and safety strap.
Portable Construction: Approximate net weight of 11kg without accessories.

Applications

Structural steel fabrication
Steel plate and beam drilling
Drilling in restricted-clearance areas
Industrial equipment maintenance
Metal fabrication and assembly
Construction and installation work
Workshop and on-site steel drilling
Countersinking with compatible tooling

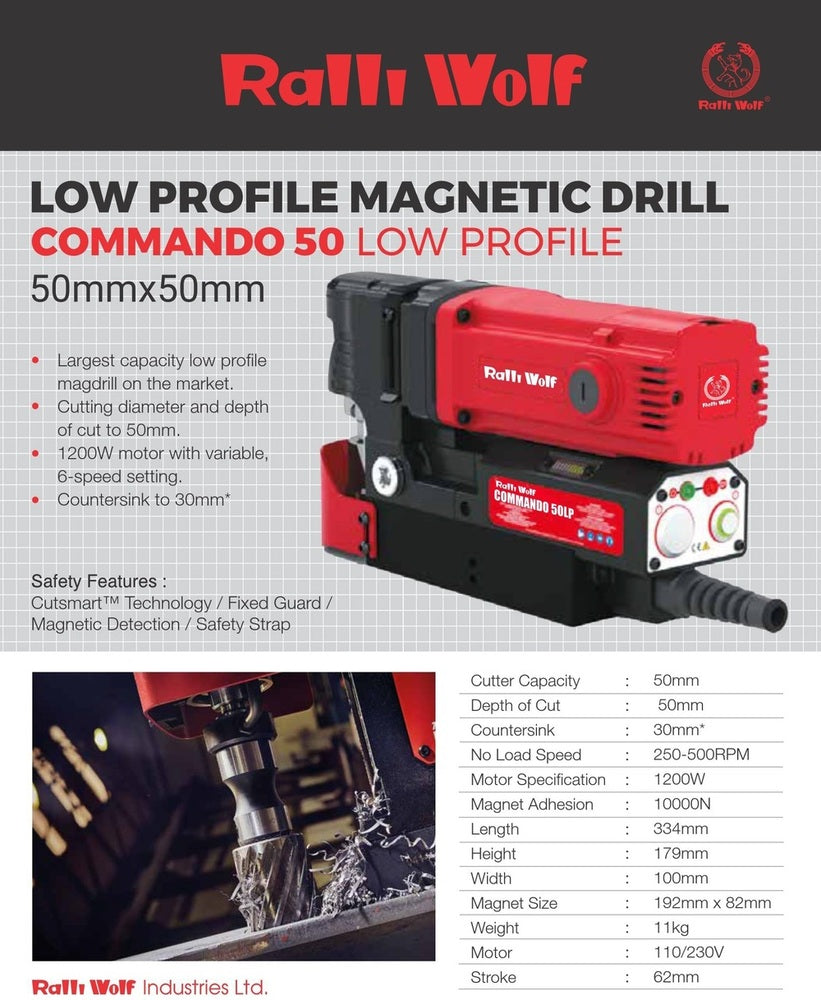

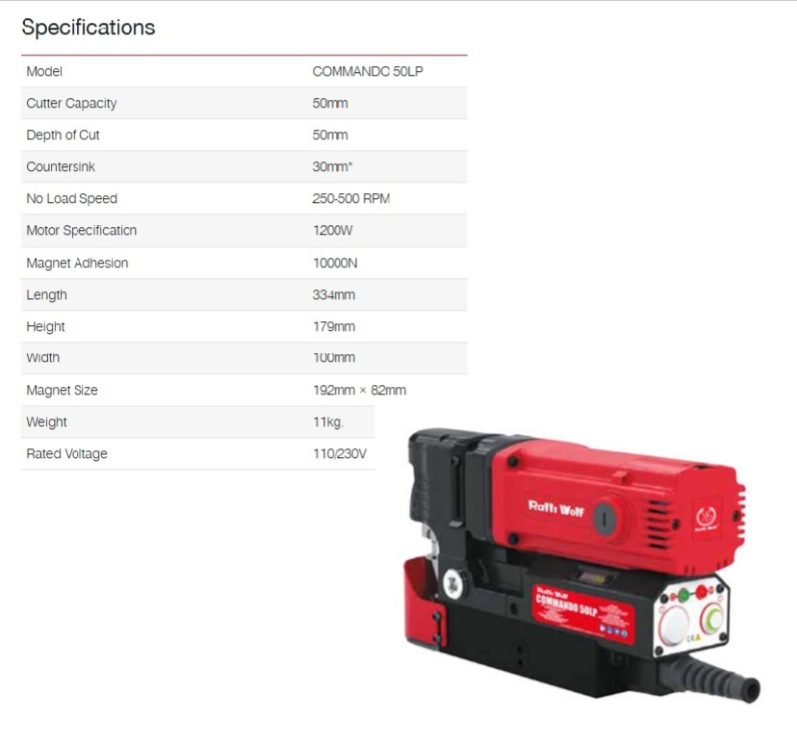

Technical Specifications

Specification	Details
Brand	Ralli Wolf
Model	Commando 50LP
Tool Type	Low-Profile Magnetic Core Drill
Rated Voltage	230V
Rated Input Power	1200W
Speed Selection	6 speeds
No-Load Speed	250–500 RPM
Speed Control	Variable
Maximum Core Drilling Capacity	50mm diameter × 50mm depth
Countersinking Capacity	30mm
Magnetic Adhesion	10,000N
Adaptor Size	Self-locking, 19.05mm
Magnet Dimensions	192 × 82mm
Machine Dimensions (L × W × H)	334 × 100 × 179mm
Stroke	62mm
Approximate Net Weight	11kg without accessories

Package Details

Standard accessories listed by the manufacturer:

1 × Ralli Wolf Commando 50LP Magnetic Core Drill Machine
1 × Allen Key
1 × Coolant Bottle
1 × Ratchet Handle
1 × Safety Belt
1 × Safety Goggle
1 pair × Spare Carbon Brushes

Ralli Wolf Commando 50LP Low Profile Magnetic Core Drilling Machine 1200W, 50mm Drilling Capacity, 6-Speed Variable Control, 10000N Magnetic Adhesion and Self-Locking 19.05mm Adaptor
