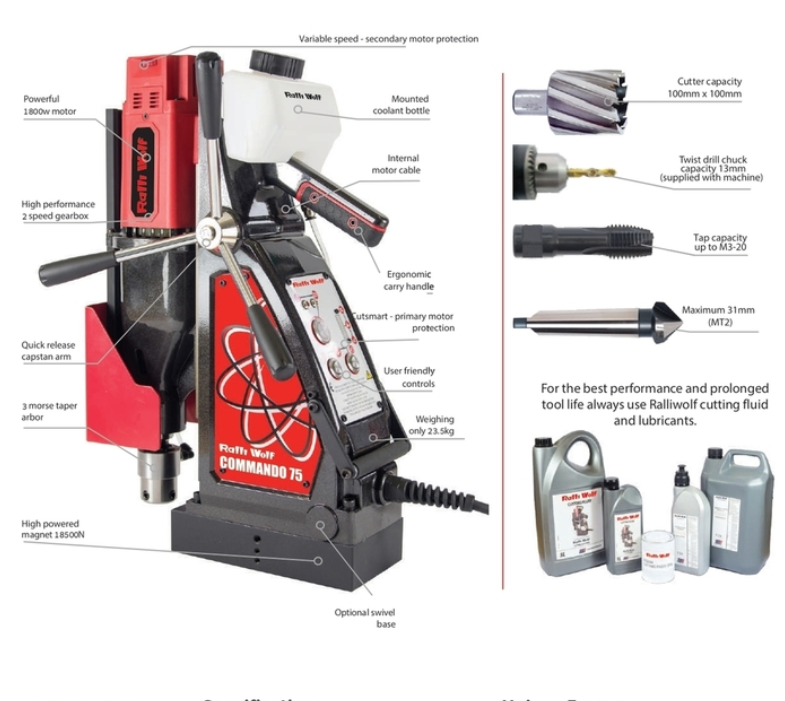

The Ralli Wolf Commando 75 Magnetic Core Drilling Machine is a heavy-duty industrial drilling tool designed for structural steel fabrication, metalworking and construction applications. Its powerful 1800W motor supports core drilling up to 75mm diameter and 75mm depth, making it suitable for demanding drilling operations on compatible steel workpieces.

The machine features a two-speed gearbox with variable speed and reversible rotation, providing flexibility for different drilling and tapping tasks. Its 18,500N magnetic adhesion helps secure the drill to suitable ferrous surfaces during operation. The MT3 spindle system, 26mm twist-drilling capacity and M24 tapping capability make the Commando 75 a versatile choice for fabrication workshops and industrial maintenance.

Key Features

Powerful 1800W Motor: Designed for demanding industrial drilling tasks.
75mm Core Drilling Capacity: Supports core drilling up to 75mm diameter and depth.
Two-Speed Gearbox: Low and high gear settings for different drilling requirements.
Variable and Reversible Operation: Provides speed and rotation control for versatile applications.
18,500N Magnetic Adhesion: Helps hold the machine securely on compatible steel surfaces.
MT3 Spindle: Compatible with suitable drilling adaptors and tooling.
26mm Twist Drill Capacity: Supports conventional twist drilling.
M24 Tapping Capacity: Suitable for compatible thread-cutting operations.
240mm Stroke: Provides extended travel for drilling applications.
Industrial Design: Suitable for heavy fabrication and construction work.

Applications

Structural steel fabrication
Steel plate and beam drilling
Heavy engineering workshops
Industrial machinery maintenance
Construction and infrastructure projects
Metal fabrication and assembly
Pipeline and flange drilling
Core drilling and twist drilling
Tapping and threading operations

Technical Specifications

Specification	Details
Brand	Ralli Wolf
Model	Commando 75
Tool Type	Magnetic Core Drill Machine
Rated Voltage	230V AC
Rated Input Power	1800W
Speed Selection	2 speeds
Low Gear Speed	70–180 RPM
High Gear Speed	200–500 RPM
Variable / Reversible	Yes
Maximum Core Drilling Capacity	75mm diameter × 75mm depth
Maximum Twist Drill Capacity	26mm
Tapping Capacity	M24
Spindle / Adaptor	MT3
Magnetic Adhesion	18,500N
Stroke	240mm
Magnet Dimensions	220 × 114 × 45mm
Approximate Net Weight	22.8kg without accessories

Package Details

Standard accessories listed for the Commando 75 include:

1 × Ralli Wolf Commando 75 Magnetic Core Drill Machine
3 × Side Arms
2 × Allen Keys
1 × Coolant Bottle
1 × Safety Belt
1 × Drift
1 × 16mm Drill Chuck with Key
1 × MT3-B16 Drill Chuck Arbor
2 × Eye Bolts
1 × Safety Goggle
1 × Pilot Pin
1 × MT3 19.05mm Core Drilling Adaptor
1 × MT3 31.75mm Core Drilling Adaptor

Ralli Wolf Commando 75 Professional Magnetic Core Drilling Machine 1800W, 75mm Drilling Capacity, 2-Speed Variable and Reversible Operation, MT3 Spindle and 18500N Magnetic Adhesion
