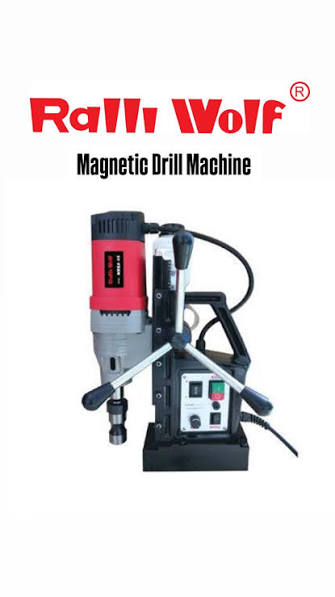

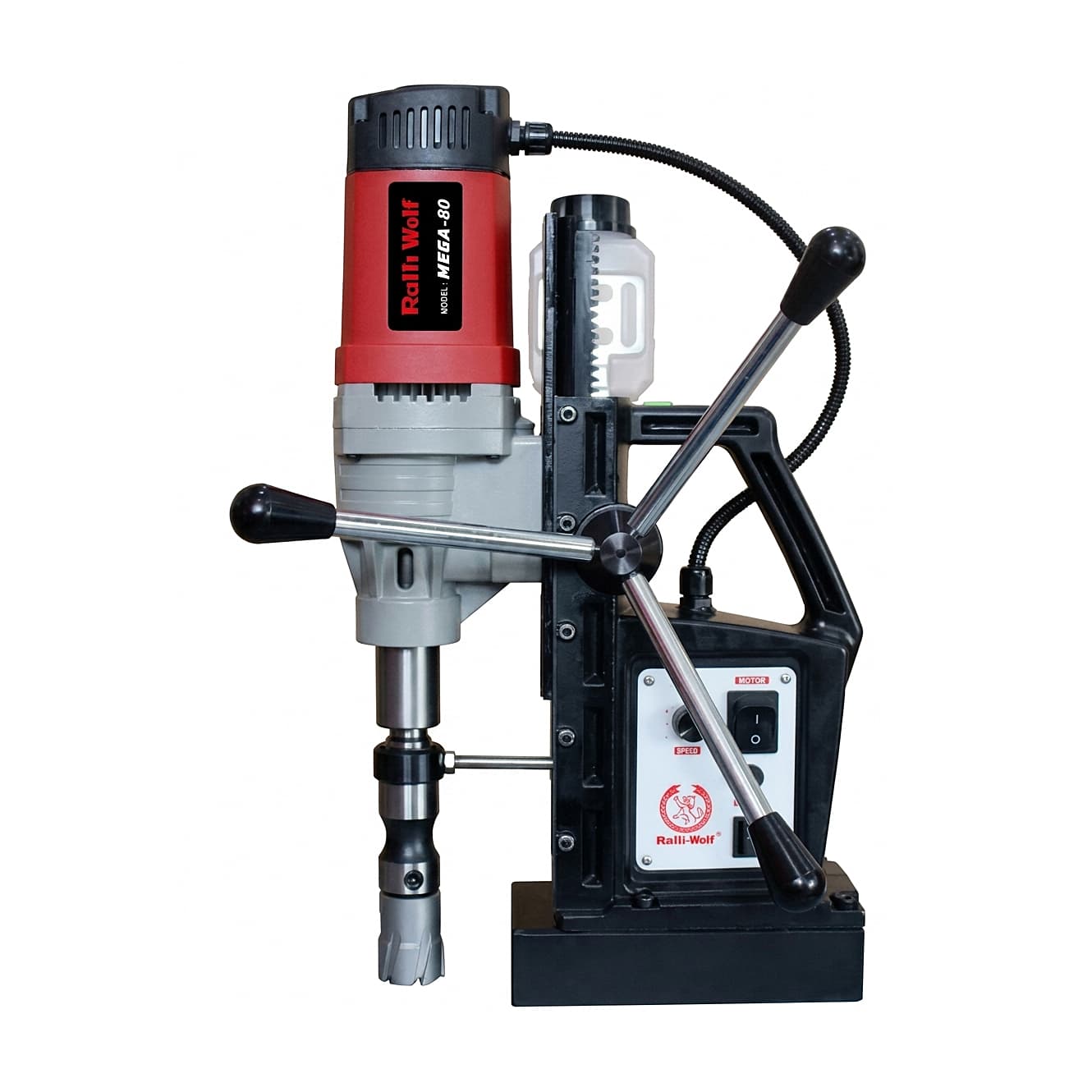

The Ralli Wolf MEGA 80 Magnetic Core Drill Machine is a heavy-duty drilling tool designed for structural steel fabrication, industrial metalworking and construction applications. Powered by a 1950W motor, it supports core drilling up to 80mm and twist drilling up to 28mm, making it suitable for large-hole drilling in compatible ferrous metal surfaces.

The MEGA 80 features variable speed and forward/reverse operation, providing flexibility for core drilling, twist drilling and tapping tasks. Its magnetic base delivers a maximum attraction force of 16,700N to help secure the machine to suitable steel workpieces. With an MT3 Morse taper and 220mm stroke, this machine is designed for demanding fabrication and workshop use.

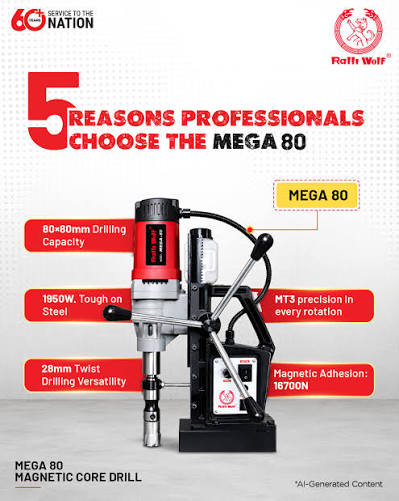

Key Features

Powerful 1950W Motor: Designed for demanding metal-drilling applications.
80mm Core Drilling Capacity: Supports large-diameter core drilling.
28mm Twist Drill Capacity: Suitable for conventional twist drilling.
Variable Speed Control: Speed range of 100–510 RPM.
Forward and Reverse Operation: Adds versatility for different drilling tasks.
Strong Magnetic Base: Maximum magnetic attraction of 16,700N.
MT3 Morse Taper: Accepts compatible drilling tooling and accessories.
220mm Stroke: Provides travel for drilling operations.
Multi-Purpose Functionality: Suitable for core drilling, twist drilling and tapping.
Industrial Construction: Designed for fabrication shops and construction sites.

Applications

Structural steel fabrication and erection
Drilling steel beams, plates and columns
Industrial machinery maintenance
Construction and infrastructure projects
Heavy engineering workshops
Shipbuilding and metal fabrication
Core drilling and twist drilling in steel
Tapping operations with compatible tooling

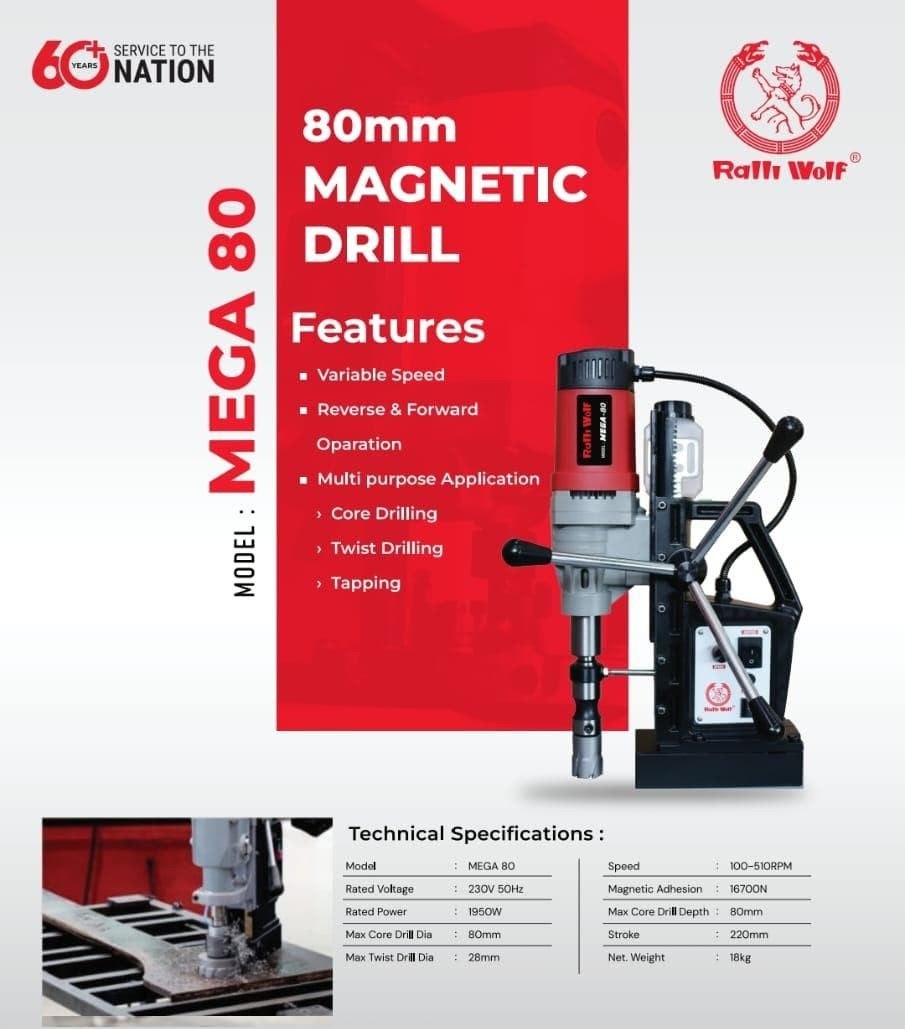

Technical Specifications

Specification	Details
Brand	Ralli Wolf
Model	MEGA 80
Tool Type	Magnetic Core Drill Machine
Rated Voltage	230V
Rated Frequency	50–60Hz
Rated Input Power	1950W
Maximum Core Drill Diameter	80mm
Maximum Twist Drill Diameter	28mm
No-Load Speed	100–510 RPM
Magnetic Adhesion	16,700N
Morse Taper	MT3
Stroke	220mm
Approximate Net Weight	18kg

Package Details

1 × Ralli Wolf MEGA 80 Magnetic Core Drill Machine
Standard accessories: confirm the exact included accessories with the supplier before publishing.

Ralli Wolf MEGA 80 80mm Magnetic Core Drilling Machine 1950W, 100–510 RPM Variable Speed, 16700N Magnetic Adhesion, MT3 Morse Taper and 28mm Twist Drill Capacity
