The Ralli Wolf RC10 CUT100 Air Plasma Cutting Machine is an industrial metal-cutting solution designed for fabrication workshops, engineering industries and construction applications. With an adjustable cutting current of 20–100A and a stated cutting thickness range of 1–30mm, it is suitable for cutting various conductive metals.

Powered by IGBT inverter technology, the RC10 features pilot-arc transfer to support reliable arc starting and help extend consumable life. It is designed to cut stainless steel, carbon steel, aluminium, copper and other compatible metals.

The machine also includes an MMA welding facility rated at 400A and supports CNC integration for compatible automated cutting setups. Its 415V three-phase input makes it suitable for industrial workshops and heavy fabrication environments.

Key Features

100A maximum plasma cutting current for industrial cutting tasks.
IGBT inverter technology for efficient cutting performance.
Pilot-arc transfer to support arc starting and consumable durability.
Cutting thickness up to 30mm, depending on material and cut quality requirements.
Built-in MMA welding facility rated at 400A, according to the product listing.
CNC interface support for compatible automated cutting systems.
Suitable for stainless steel, carbon steel, aluminium, copper and other conductive metals.
Designed for fast, economical metal cutting.
415V three-phase power supply for industrial applications.
Optional trolley and machine-mounting torch configurations may be available.

pplications

General metal fabrication
Steel plate and sheet-metal cutting
Stainless steel and aluminium cutting
Automotive body-building workshops
Railway and infrastructure industries
Construction and engineering workshops
Machinery manufacturing and maintenance
Scrap metal cutting
CNC-integrated metal-cutting operations
Combined plasma cutting and MMA welding tasks

Technical Specifications

Specification	Details
Brand	Ralli Wolf
Model	RC10
Product Series	CUT 100 IJ / CUT100
Product Type	Air Plasma Cutting Machine
Maximum Cutting Current	100A
Output Current Range	20–100A
Input Voltage	AC 415V ±15%
Phase	3-Phase
Frequency	50/60Hz
Rated Input Current	21A
Power Rating	15.1 kVA
No-Load Voltage	295–320V, depending on published specification
Rated Output Voltage	120V
Duty Cycle	60%
Inverter Technology	IGBT
Arc Transfer Method	Pilot Arc
Required Air Pressure	4.5–6 kg/cm²
Cutting Thickness	1–30mm
Efficiency	85%
Power Factor	0.93
Insulation Grade	F
Housing Protection	IP21 / IP21S, depending on specification
No-Load Loss	80W
MMA Welding Facility	Available; listed as 400A
CNC Interface	Available
Net Weight	Approx. 26.5–39kg; varies across published listings

Package Details

The standard accessory list includes:

Plasma cutting torch
FRL unit (filter-regulator-lubricator)
Earthing cable with clamp

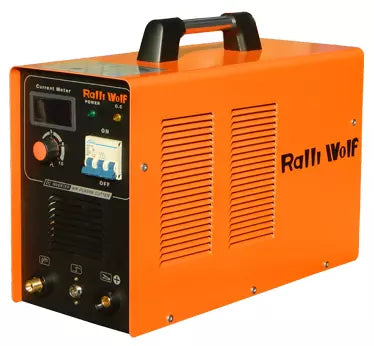

Ralli Wolf RC10 CUT100 IJ 100A IGBT Air Plasma Cutting Machine with Pilot Arc Technology, CNC Interface and 400A MMA Welding Facility – 415V 3-Phase
