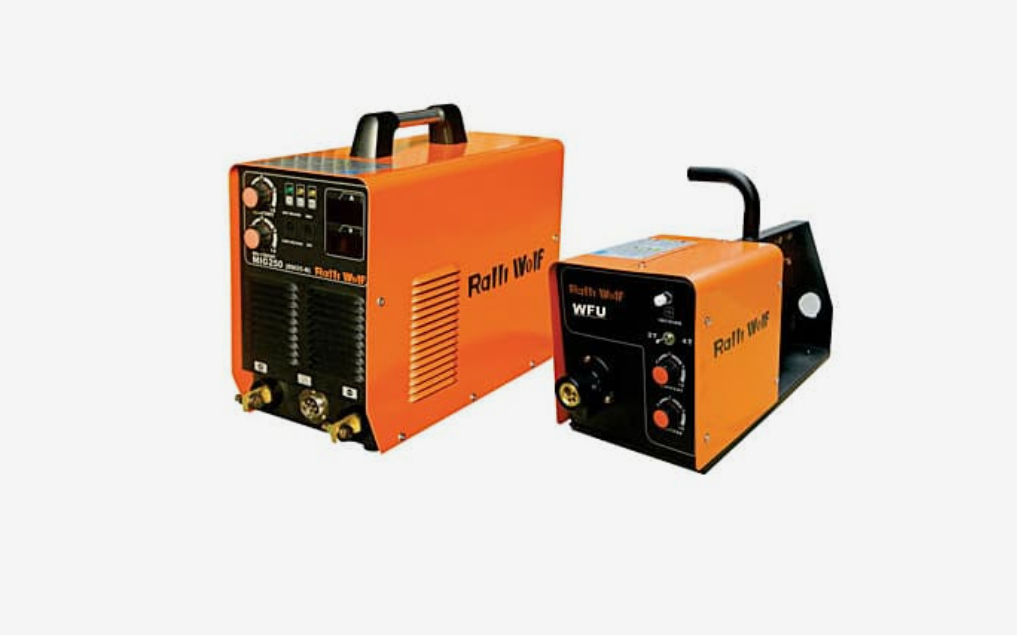

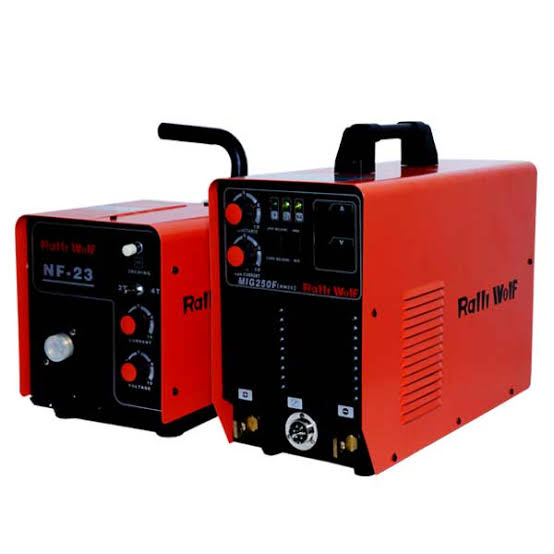

The Ralli Wolf RM25 MIG 250 is a compact and efficient inverter welding machine designed for fabrication workshops, engineering industries and general metalworking applications. Featuring advanced IGBT inverter technology, it provides an adjustable welding current range of 50–250A for versatile MIG welding operations.

The machine comes with a separate wire feeder that offers greater flexibility in positioning during welding work. Its integrated MMA welding facility allows users to perform stick welding as well as MIG welding, making it a versatile solution for various fabrication requirements.

Operating on a 415V three-phase power supply, the Ralli Wolf RM25 is designed to deliver stable arc performance, deep penetration and reduced spatter for efficient welding results.

Key Features

250A MIG inverter welding machine
Advanced IGBT inverter technology
MIG and MMA welding facilities
Separate wire feeder for flexible operation
415V three-phase power supply
Adjustable welding current from 50A to 250A
Stable arc performance
Deep weld penetration with reduced spatter
Adjustable wire-feeding speed
Energy-efficient operation
Compact and portable power source
Suitable for fabrication and industrial metalworking

Applications

General metal fabrication
Engineering workshops
Pipe welding
Construction and structural metalwork
Automobile repair and maintenance
Railway component fabrication
Furniture manufacturing
Industrial maintenance and repair
General MIG and MMA welding applications

Technical Specifications

Specification	Details
Brand	Ralli Wolf
Model	RM25
Welding Model	MIG 250
Machine Type	IGBT Inverter MIG / MMA Welding Machine
Input Voltage	AC 415V ±15%
Phase	Three Phase
Frequency	50/60 Hz
Rated Input Current	11.1 A
Rated Input Power	8.4 kVA
Output Current Range	50–250 A
Rated Output Voltage	16.5–26.5 V
Duty Cycle	60%
Power Factor	0.93
Efficiency	85%
Wire Feeding Speed	2.5–18 m/min
Compatible Wire Diameter	0.8 / 1.0 mm
Output Cable Size	25+ mm²
Welding Processes	MIG and MMA
Inverter Technology	IGBT
Wire Feeder Type	Separate, 2-roll
Approximate Net Weight	18 kg

Package Details

Ralli Wolf RM25 MIG 250 welding power source
Separate wire feeder unit
MIG torch cable
MMA electrode holder cable

Ralli Wolf RM25 MIG 250A IGBT Inverter Welding Machine with Separate 2-Roll Wire Feeder and MMA Welding Facility – 415V 3-Phase
