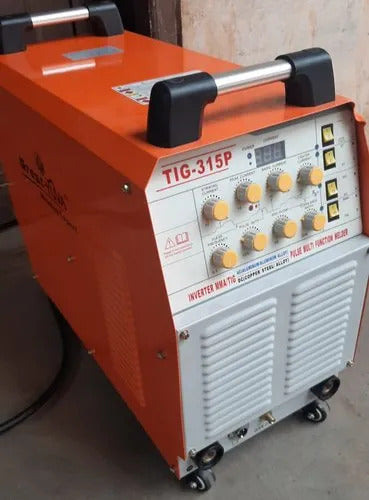

The Ralli Wolf RT31A TIG 315P AC/DC Pulse Inverter Welding Machine is a professional welding solution designed for precision fabrication, aluminium welding and industrial metalworking. With AC/DC TIG welding and MMA functionality, it offers flexibility for welding aluminium, mild steel, stainless steel and other compatible metals.

Its pulse welding capability allows operators to adjust pulse frequency and pulse width for greater control over heat input and weld appearance. High-frequency arc starting, adjustable up-slope and down-slope, and post-flow control help deliver smooth, controlled welding performance.

Operating on a 415V three-phase power supply, the RT31A is suitable for fabrication workshops, pipe welding, aluminium products, pressure vessels and construction-related metalworking applications.

Key Features

315A maximum welding output for professional fabrication work.
AC/DC TIG welding for aluminium and steel applications.
Pulse welding function with adjustable pulse frequency and pulse width.
MMA welding facility for manual stick welding.
MOSFET inverter technology for reliable welding performance.
High-frequency arc starting for convenient TIG ignition.
Adjustable up-slope and down-slope for controlled weld starts and finishes.
Adjustable start, base, peak and crater current for precise welding control.
2T, 4T and repeat functions for different welding workflows.
Adjustable post-flow to help protect the weld area and tungsten electrode.
Remote control function for added operating flexibility.
60% duty cycle at the manufacturer's specified rating.

Applications

Aluminium and aluminium-alloy welding
Stainless steel and mild steel fabrication
Precision metal fabrication
Pipe and high-pressure vessel welding
Industrial equipment manufacturing
Decorative metalwork and aluminium products
Construction and engineering workshops
Automobile and component manufacturing
Industrial repair and maintenance

Technical Specifications

Specification	Details
Brand	Ralli Wolf
Model	RT31A
Product Type	AC/DC Pulse TIG Inverter Welding Machine
Maximum Welding Current	315A
Input Supply	AC 415V ±15%
Phase	3-Phase
Frequency	50Hz
Power Rating	12.9 kVA
Output Current Range	5–315A
Welding Output	AC and DC
Pulse Mode	Available
Duty Cycle	60%
Inverter Technology	MOSFET
No-Load Voltage	54V
Rated Output Voltage	22V
Rated Input Current	12.3 / 17.9A
No-Load Loss	80W
Efficiency	85%
Power Factor	0.93
Pre-Flow Time	0–2 seconds
Post-Flow Time	0–5 seconds; extended adjustment may vary by specification
Arc Starting	High Frequency
MMA Function	Available
Net Weight	Approx. 34kg

Package Details

Typical listed standard accessories include:

TIG welding torch and cable
MMA electrode holder and cable

Earthing clamp and cable

Ralli Wolf RT31A TIG 315P AC/DC Pulse 315A MOSFET Inverter Welding Machine with MMA Function, High-Frequency Arc Starting and Adjustable Pulse Control – 415V 3-Phase
