The Ralli Wolf RW-CV35-3M 35mm Vibration Rod is designed for efficient concrete compaction and consolidation at construction sites. Powered by a 1100W, 100% copper motor, it delivers a high operating speed of 4400 RPM to help remove trapped air pockets from freshly poured concrete and achieve a dense, strong concrete structure.

Featuring a 35mm diameter vibrating rod with a 3-metre length, this machine provides extended working reach for concrete slabs, beams, columns, foundations and other reinforced concrete applications.

The unit features an aluminium gearbox for durability, a long-life output shaft and double-insulated construction. Its ergonomic soft-grip design and rear D-handle provide improved handling and operating stability.

Key Features

1100W powerful motor for efficient concrete compaction.
100% copper motor for reliable performance and durability.
35mm vibration rod diameter for effective concrete consolidation.
3-metre vibration rod length for extended working reach.
4400 RPM no-load speed for high-speed vibration.
Aluminium gearbox for long service life.
Long-life output shaft for dependable operation.
Quick-change carbon brush system for convenient maintenance.
Ergonomic soft-grip design for comfortable operation.
Rear D-handle for improved stability and safety.
Double-insulated construction for electrical protection.
Efficient motor ventilation system for reliable operation.

Applications

Concrete compaction and consolidation.
Removing trapped air pockets from freshly poured concrete.
Foundation and footing concreting.
Concrete slab and floor construction.
Beam and column concreting.
Reinforced concrete construction.
Building and infrastructure projects.
Civil engineering and construction applications.

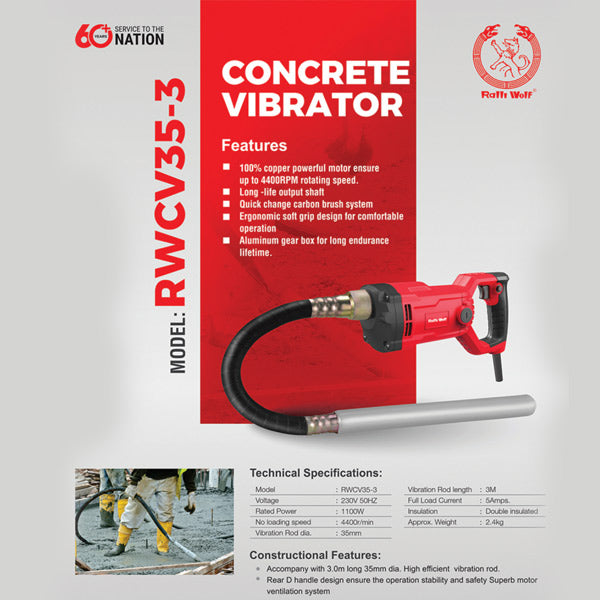

Technical Specifications

Specification	Details
Brand	Ralli Wolf
Model	RW-CV35-3M
Product Type	Concrete Vibration Rod
Rated Power	1100W
Voltage	230V AC
Frequency	50Hz
No-Load Speed	4400 RPM
Vibration Rod Diameter	35mm
Vibration Rod Length	3 Metres
Full Load Current	5A
Motor Type	100% Copper Motor
Gearbox	Aluminium
Insulation	Double Insulated
Approx. Weight	2.4 kg

Size/Model-wise Table

Model	Power	Rod Diameter	Rod Length
RW-CV35-3M	1100W	35mm	3M

Ralli Wolf RW-CV35-3M 35mm Concrete Vibration Rod | 1100W Motor | 3 Metre Heavy-Duty Concrete Vibrator Shaft | 4400 RPM
