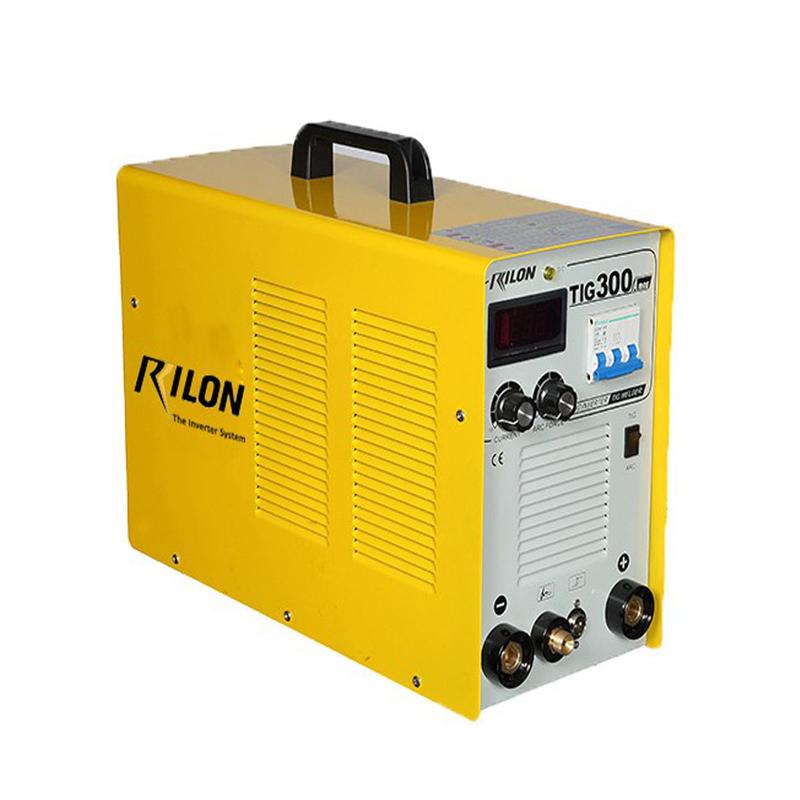

Rilon Tig 300 Single Phase MOSFET Welding Machine

Dual welding process: TIG DC / MMA (Stick).
Arc stability and control.
With HF arc starting.
Possibility of choosing between welding cycle 2T or 4T.
Slope down time adjustable.
Post-gas time adjustable.
Automatic Hot Start boosts the current during starting to make striking an arc easier.
Digital instrument for the welding current.
Auto-Protection against over-voltage,over-current and over-heated.
Smaller, lighter and portable, this equipment is protected by a solid metal casing.

Parameters	Specification
Rated Input Voltage(V)	AC220V±15% 1P
Arc-Initiating(TIG)	H-F
Rated Input Current(A)	TIG:41 MMA:58
Efficiency(%)	85
Input Frequency (HZ)	50/60
Power Factor	0.73
Rated Input Power(KVA)	TIG:8.4 MMA:12
Protection Grade	IP21
Open Circuit Voltage(V)	56
Weight(kg)	11
Current Range(A)	10-300
Dimension(mm)	505203375
Duty cycle at maximum current	60%@25
