Buy Rilon TIG 315P AC/DC Online | Heavy Duty TIG Welder

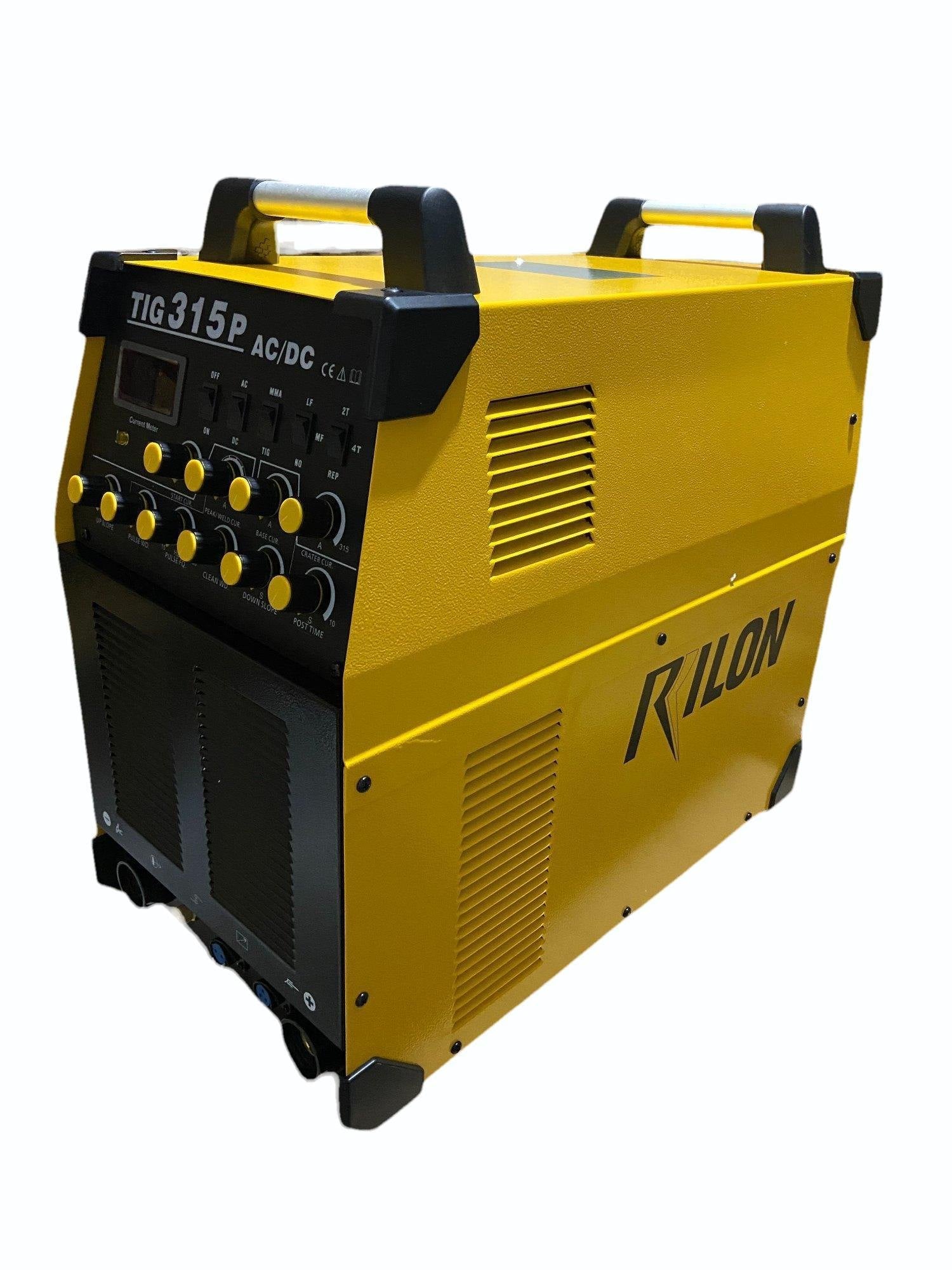

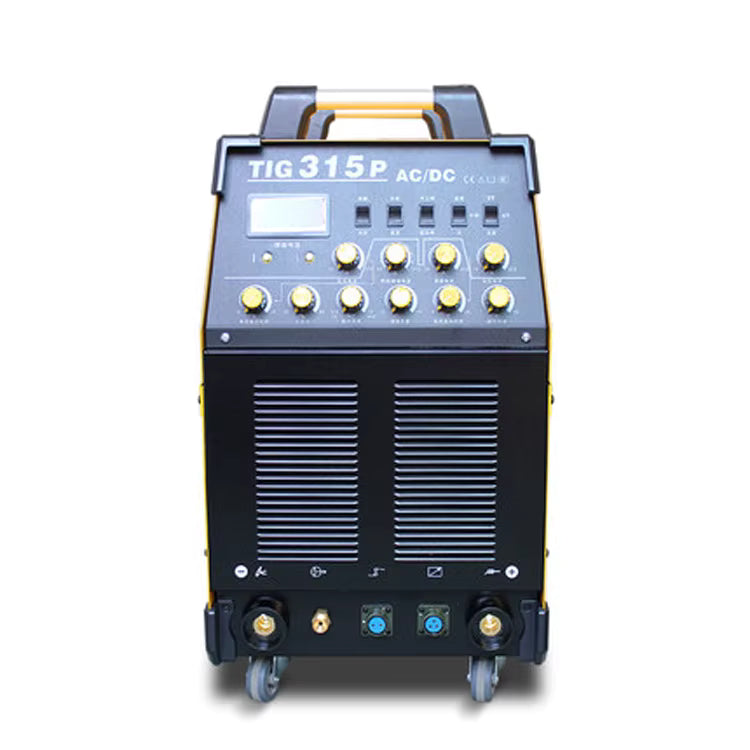

Rilon Tig 315P AC/DC Three Phase Inverter Based Welding Machine

The Rilon TIG 315P AC/DC is a high-capacity, industrial-grade inverter welding machine designed for heavy-duty fabrication. Operating on three-phase power, it provides the high amperage and duty cycle required for thick metal sections, particularly aluminum, stainless steel, and copper alloys. Its "P" designation signifies Pulse technology, allowing for superior control over heat input and bead appearance.

KEY FEATURES:

• Input Power: Three Phase AC 380V/415V ± 15%.

• Output Current: 10A – 315A (Industrial strength).

• Duty Cycle: 60% at 40°C (designed for continuous industrial use).

• Pulse Frequency: 0.5 – 5.0 Hz (Low) / 50 – 200 Hz (High).

• AC Balance: 20% – 50% (Precision cleaning for aluminum).

• Post-Flow Gas: 0 – 10 seconds (Adjustable for cooling).

• Weight: Approx. 25 - 30 kg (Heavy-duty build).
