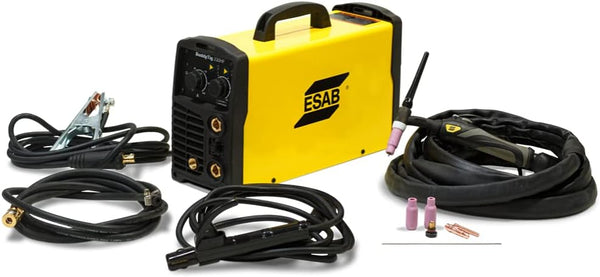

Esab Tig 200/Rogue ET 200iP Single Phase Welding Machine
The High-frequency TIG start ensures you do not experience failure on ignition. The advanced TIG controls including gas pre-flow, post flow, start current, end current helps deliver superior quality.
Rogue ET performs with exceptional arc characteristics, both in TIG and MMA modes. Its user adjustable Hot Start or Arc Force helps you match the best welding performance in MMA applications.
FEATURES:
Perfect heat input control with Pulse features.
Robust and rigid fiberglass-molded housing to withstand high impact.
Enclosure class IP23S suitable for both fabrication floor and site applications.
Large precise digital display.
TECHNICAL DETAILS:
Mains Supply, V / Ph,Hz
230V ± 15% / 1, 50/60
Maximum Input Current, A
43
I1eff, A
21.5
MMA Output Range, A
20-200
TIG Output Range, A
10-200
Open Circuit Voltage,V
63
Duty Cycle
MMA200 A / 28 V @ 25% 129 A / 25.2 V @ 60% 100 A / 24 V @ 100%
TIG200 A / 18 V @ 25% 129 A / 15.2 V @ 60% 100 A / 14 V @ 100%
