Features:
-
Advanced IGBT Inverter Technology Delivers Superior TIG Performance.
-
Digital Instrument For The Welding Current
-
Auto-Protection Against Over-Voltage, Over Current And Over Heated High
-
Performance Ensure Continuous And Stable Operation Of Welder 2T/4T Function
-
It Can Used For Welding Of Stainless Steel, Carbon Steel, Copper and Other Colour Metals As Well
-
The Machine Is Also Compatible And Can Be Used For Traditional Electric Welding
-
Offers Best In Class Finishing And Efficiency
-
Labour Savings Of Upto 55%
-
Power Savings Of Upto 55%
________________________________________________________________________________________________
Applications:
-

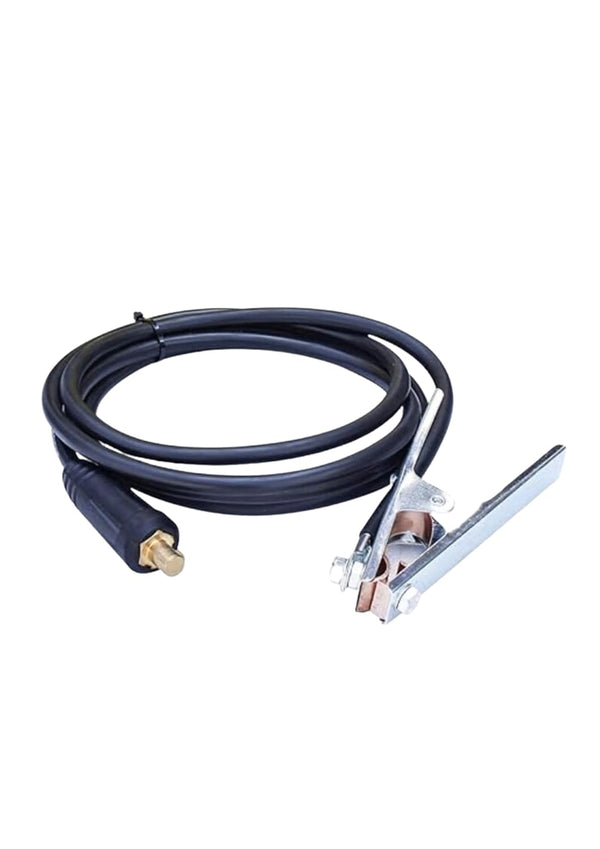

Earth Clamp with Cable
-

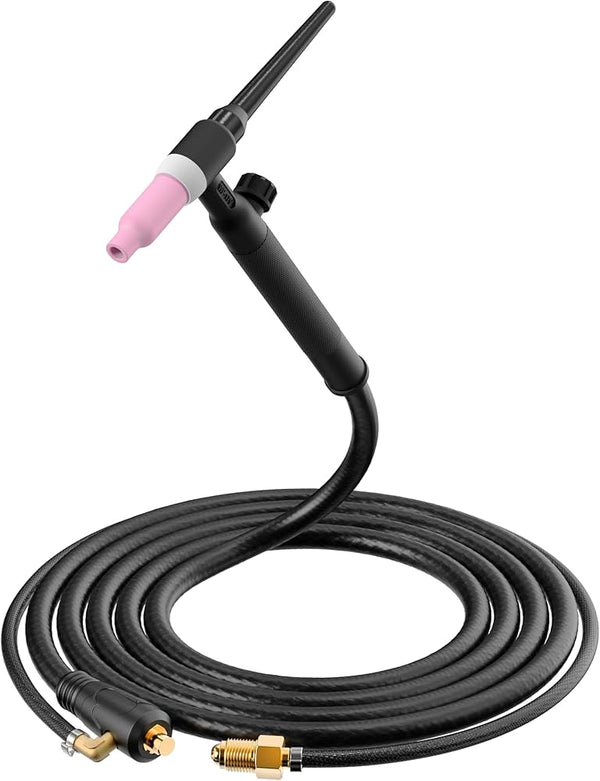

Tig Torch
________________________________________________________________________________________________
Technical Specification:
PARAMETERS |
TIG 335S |
|---|---|
POWER VOLTAGE(V) |
AC240V±15% |
FREQUENCY (HZ) |
50/60 |
RATED INPUT CURRENT (A) |
33.6 |
NO-LOAD VOLTAGE (V) |
62 |
Output current regulation(TIG)(A) |
20-335 |
Rated Output Voltage(TIG)(V) |
20 |
Output Current Regulation (MMA)(A) |
20-250 |
Rated Output Voltage (MMA)(V) |
- |
Duty cycle(%) |
60 |
No-load loss (W) |
40 |
Power (%) |
85 |
POWER FACTOR |
0.73 |
INSULATION GRADE |
F |
Protective Grade |
IP21 |
WEIGHT(KG) |
13.7kg |
Machine Dimension (mm) |
490x220x380 |
Package Dimension (mm) |
565x310x425 |
