Esab Mig 402I 3 Phase IGBT Inverter Welding Machine

Esab

Product Code:

Availability:In stock

Rs. 120,360/- 120,360

Qty

Ask about this product
Add to Compare

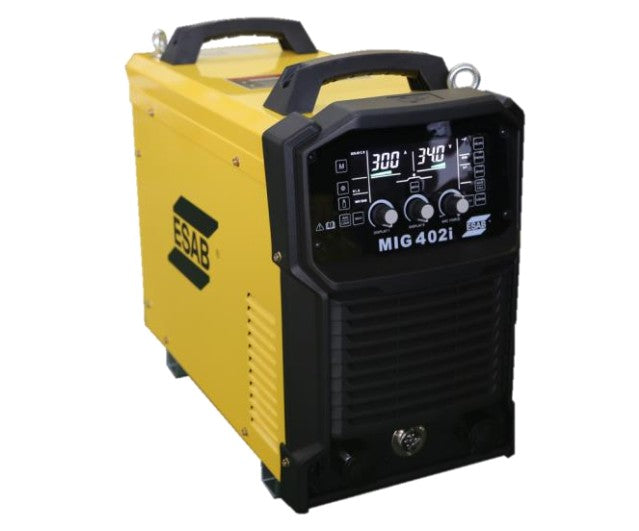

Esab Mig 402I 3 Phase IGBT Inverter Welding Machine

The ESAB Mig 402i is a high-performance, industrial-grade IGBT inverter-based welding power source designed for high-productivity MIG/MAG welding. Unlike traditional step-controlled machines, the inverter technology in the 402i offers superior arc stability and massive energy savings.

TECHNICAL DETAILS:

Mains Voltage, V/Ph, Hz

415 (+15%/-20%) / 3, 50/60

Rated Input Power, KVA

17.8

No Load Voltage, V

70

Output Current Range MIG / MMA / TIG, A

MIG 30 - 400; MMA & TIG 20 – 400

Output Voltage Range MIG / MMA / TIG, V

15.5 - 34 ; 21 - 36 ; 10.8 - 26

Permissible load at 100% Duty Cycle MIG / MMA, A

400

Maximum Input power at idle mode, W

<30

Power factor at maximum current

0.91

Efficiency at maximum current, %

90

Insulation class

H

Enclosure class

IP21S

Dimension (LXWXH), mm

615x290x510

Weight, Kg

31.5

Standards of Conformity

IEC 60974-1

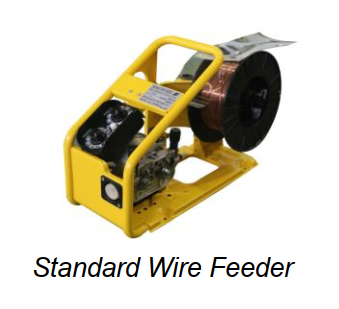

Wire Feeder



Wire Feed Drive

4 Roll

Wire Feeder Speed, m/min

1.5 – 20.0

Torch Connection

Euro

Wire Dimensions, mm (MS/SS/AL/FCW)

0.8 - 1.2

Weight, Kg

10
