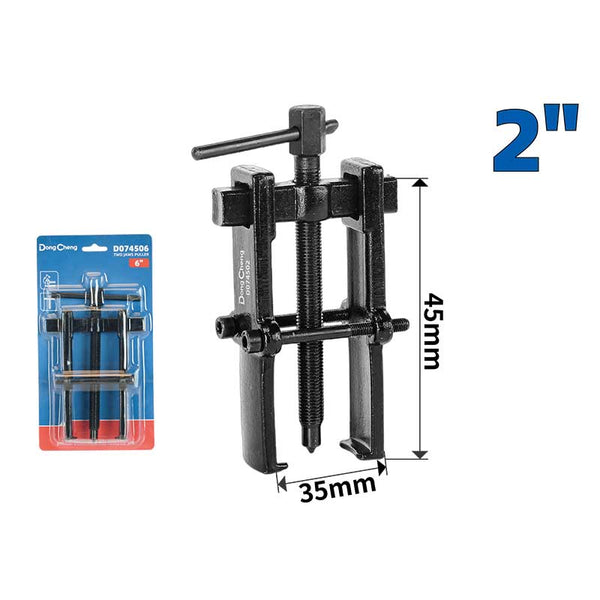

The DONGCHENG HD074502 Two Jaws Puller has a 45 mm stroke and a 35 mm opening size, with a maximum force of 450 kg. The jaws are made from 45# steel with a black oxide coating for strength and corrosion resistance. Hook the jaws behind the part, then turn the centre screw to draw it off the shaft. It is made for mechanics, motor winders, and maintenance teams.
Key Features
Two jaws: hook behind bearings, gears, and pulleys
450 kg max force
45 mm stroke and 35 mm opening size
45# steel: strong and durable
Black oxide coating: corrosion resistance
Packed by slide blister
Application
Removing small bearings from shafts
Pulling gears, pulleys, and bushes
Motor, pump, and appliance repair
Automotive and two-wheeler maintenance
Workshop and maintenance use
Technical Specification
Specification
Detail
Brand
DONGCHENG
Model
HD074502
Product Type
Two Jaws Puller
Size
2"
Jaws
2
Max Force
450 kg
Stroke
45 mm
Opening Size
35 mm
Material
45# steel
Surface Treatment
Black oxide coating
Packaging
Slide blister
Safety Note: Do not exceed the rated force. Keep the puller centred on the shaft and the jaws fully hooked. Wear eye protection, and do not use a hammer on the screw or jaws.
