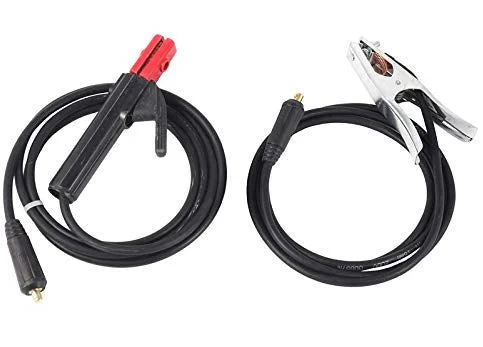

files/EarthcableandEarthclamparcseries.webp
files/ChatGPT_Image_Apr_8_2026_08_07_15_PM.png

Rilon ARC 300 3 Phase MOSFET Welding Machine

RILON

Product Code:

Availability:In stock

Rs. 17,016/- Rs. 11,500/- 11,500

Qty

Ask about this product
Add to Compare

Rilon ARC 300 3 Phase MOSFET Welding Machine

Built with high-performance MOSFET inverter technology, the ARC 300 delivers industrial-level constant current with precise feedback control. It is optimized for structural fabrication and heavy workshop use, offering a powerful 300A output while remaining significantly more energy-efficient than traditional SCR machines.

KEY FEATURES:

  • Arc-Force for Anti-Sticking

  • Hot-Start to start the Welding Arc Smoothly

  • Remote-Control Function Optional.

  • Wide Range for Input Voltage: 380 +- 15%

  • Dust-Free Cooling System with Upgraded Duty Cycle

  • With Advanced Single IGBT Technology.

TECHNICAL DETAILS:

Parameters

Specification

Rated Input Voltage(V)

AC380V±15% 3P

Efficiency(%)

85

Rated Input Current(A)

19.6

Power Factor

0.93

Input Frequency(HZ)

50/60

Protection Grade

IP21

Rated Input Power(KVA)

9.9

Weight(kg)

19

Current Range(A)

30-300

Electrode Diameter(mm)

2.5-4.0

Open Circuit Voltage(V)

65

Dimension(mm)

426*212*357

Duty cycle at maximum current

40%@40
