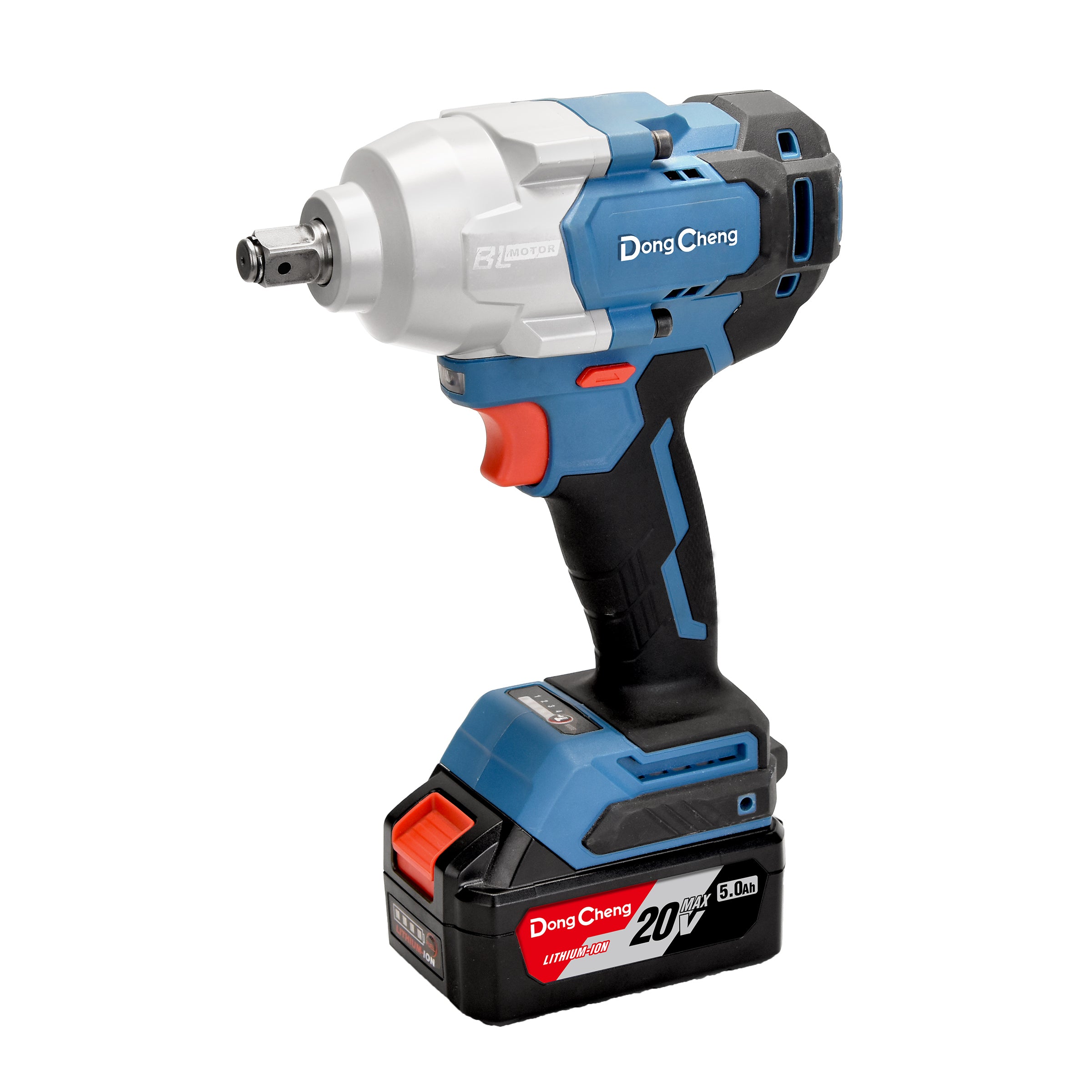

DongCheng DCPB698 20V MAX Cordless Brushless Impact Wrench, 1/2-Inch Square Drive with 698Nm Maximum Torque, 910Nm Nut-Busting Torque and 4-Speed Control
The DongCheng DCPB698 Cordless Brushless Impact Wrenchis a high-performance fastening tool designed for demanding automotive, industrial, construction, and mechanical maintenance applications. Powered by a 20V MAX battery platform, it delivers up to 698Nm of maximum torque and 910Nm of nut-busting torque for challenging bolt-tightening and removal tasks.
Featuring a brushless motor, four-speed control, and adjustable torque settings, this impact wrench allows users to select suitable operating settings for different fastening requirements. Its compact body and optimized air duct design support convenient handling and efficient motor cooling. The 12.7mm (1/2-inch) square drive is compatible with suitable impact sockets, making it a versatile tool for professional workshops and on-site maintenance.
Key Features
Brushless Motor:Delivers efficient, powerful, and durable performance.
Maximum Torque of 698Nm:Suitable for demanding fastening applications.
Nut-Busting Torque of 910Nm:Helps loosen stubborn nuts and bolts.
Four-Speed Control:Provides four operating speed settings.
Four Torque Settings:Offers adjustable torque from 300Nm to 698Nm.
20V MAX Battery Platform:Supports convenient cordless operation.
Optimized Air Duct Design:Designed to improve airflow through the tool.
Compact Body:Easy to carry and comfortable to hold.
1/2-Inch Square Drive:Compatible with suitable impact sockets.
M10–M24 Bolt Compatibility:Suitable for the specified standard bolt size range.
Applications

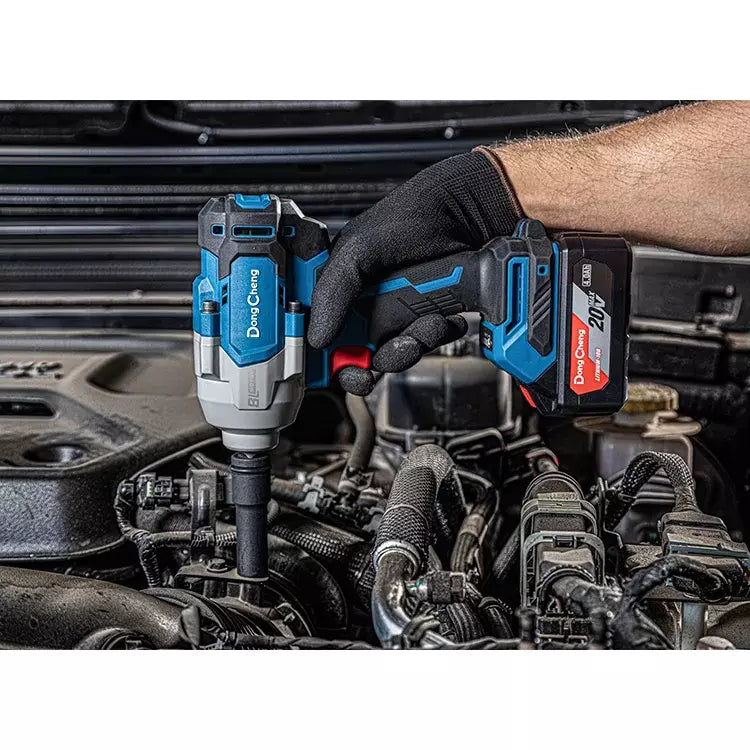

Automotive repair and maintenance.
Heavy-duty bolt tightening and loosening.
Machinery installation and servicing.
Construction and equipment assembly.
Industrial maintenance work.
Workshop fastening operations.

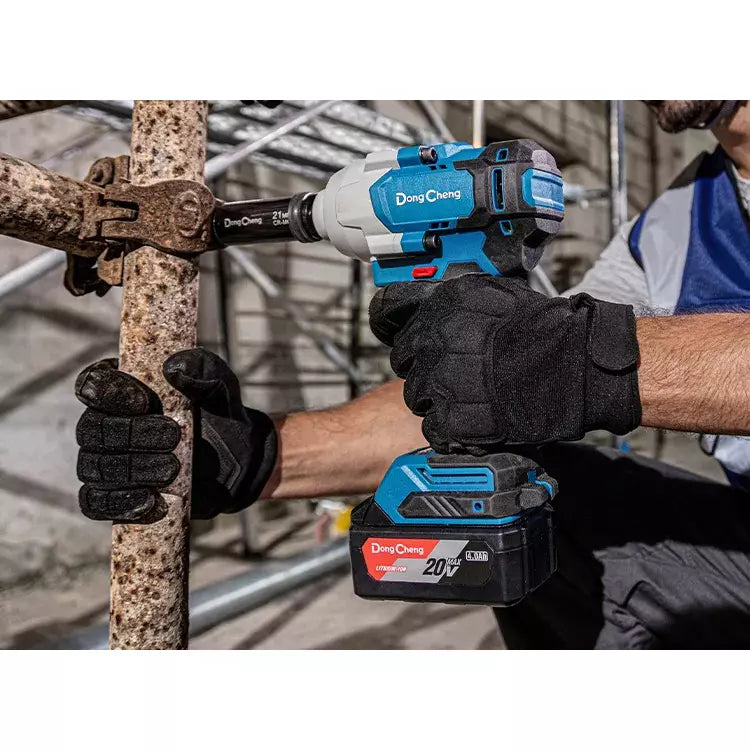

Removing stubborn nuts and bolts from compatible assemblies.
Technical Specifications
Specification
Details
Brand
DongCheng
Model
DCPB698
Product Type
Cordless Impact Wrench
Motor Type
Brushless
Battery Platform
20V MAX
Maximum Power Output
750W
Square Drive Size
12.7mm (1/2 inch)
Speed Settings
4
Speed – Gear 1
500 RPM
Speed – Gear 2
1,200 RPM
Speed – Gear 3
1,900 RPM
Speed – Gear 4
2,200 RPM
Impact Frequency – Gear 1
1,000 impacts/min
Impact Frequency – Gear 2
1,700 impacts/min
Impact Frequency – Gear 3
2,400 impacts/min
Impact Frequency – Gear 4
2,700 impacts/min
Torque – Gear 1
300Nm
Torque – Gear 2
400Nm
Torque – Gear 3
500Nm
Torque – Gear 4
698Nm
Maximum Torque
698Nm
Nut-Busting Torque
910Nm
Standard Bolt Size
M10–M24
Battery Configurations

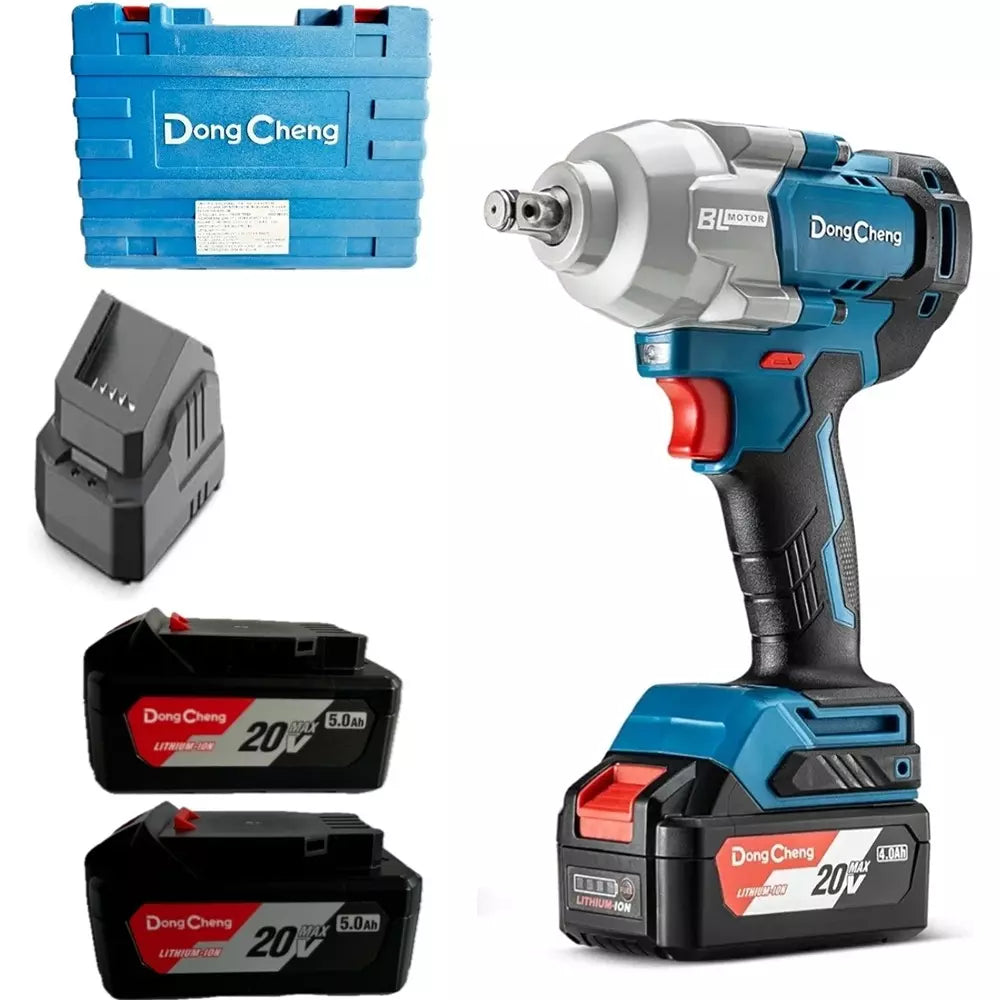

5.0Ah × 1 / 5.0Ah × 2 / 6.0Ah × 2 / Solo
Net Weight
2.5kg / 2.5kg / 2.7kg / 1.9kg, depending on variant
