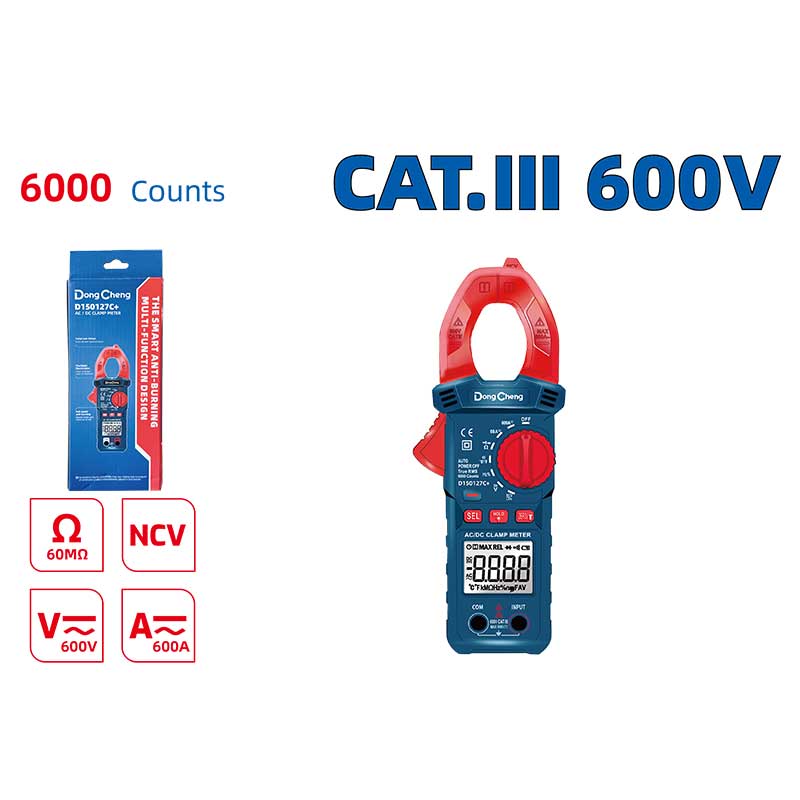

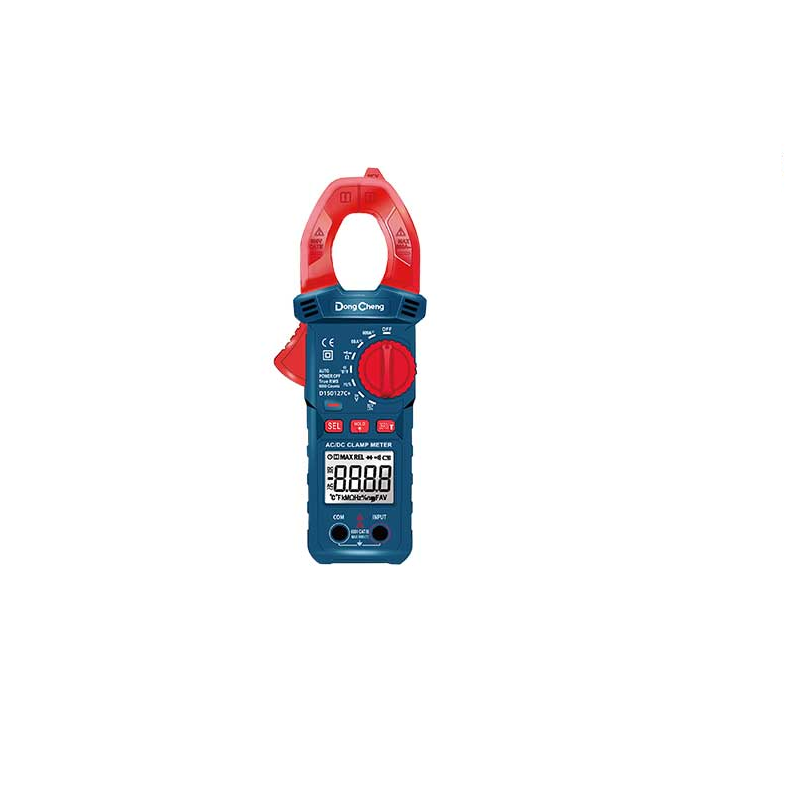

Buy Dongcheng HD150127C DC/AC Clamp Meter 6000 Counts 600A Online at Best Price in India

The DONGCHENG HD150127C DC/AC Clamp Meter measures both AC and DC current up to 600 A, so it works on motor drives, battery systems, and solar and EV circuits as well as standard AC wiring. The 6000-count backlit LCD gives clear readings. It also measures AC and DC voltage up to 600 V, resistance up to 60 MΩ, capacitance, frequency from 10 Hz up to 10 MHz, and duty cycle from 1% to 99%. A temperature function reads from -20°C to 1000°C (-4°F to 1832°F). The non-contact voltage (NCV) function detects live wires without touching them. Auto power off saves the batteries, and the CAT.III 600V rating suits installation-level work. It comes with 2 AAA (LR03) batteries. It is made for electricians, technicians, and engineers.

Key Features

• 6000-count backlit LCD: clear reading in low light
• AC and DC current up to 600 A
• AC voltage 600 V and DC voltage 600 V
• Resistance up to 60 MΩ
• Capacitance and frequency (10 Hz-10 MHz)
• Duty cycle 1%-99%
• Temperature -20 to 1000°C (-4 to 1832°F)
• Non-contact voltage (NCV) detection
• CAT.III 600V safety rating
• Auto power off
• 2 AAA (LR03) batteries included
• Packed by colour box

Application

• Measuring AC and DC load current on cables and motors
• Battery, solar, and EV circuit checks
• Drive and inverter troubleshooting
• Testing capacitors, frequency, and duty cycle
• Temperature checks with a probe
• Electrical maintenance and industrial service

Technical Specification

Safety Note:

Do not measure above the rated voltage or current. Clamp around one conductor only. Check the leads and insulation before use.
