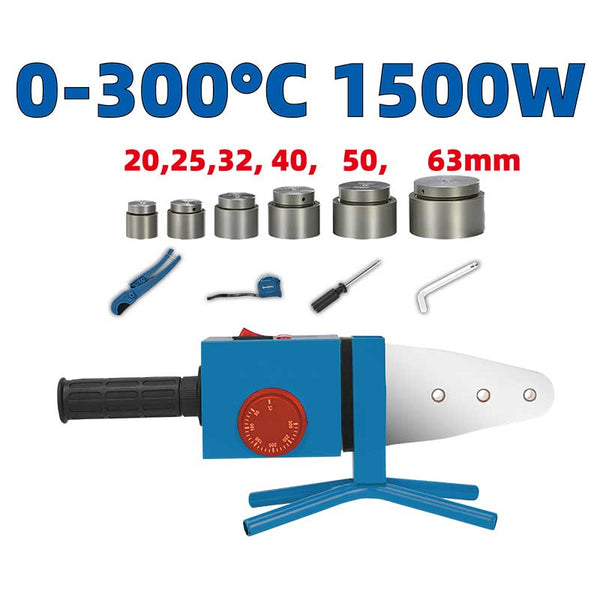

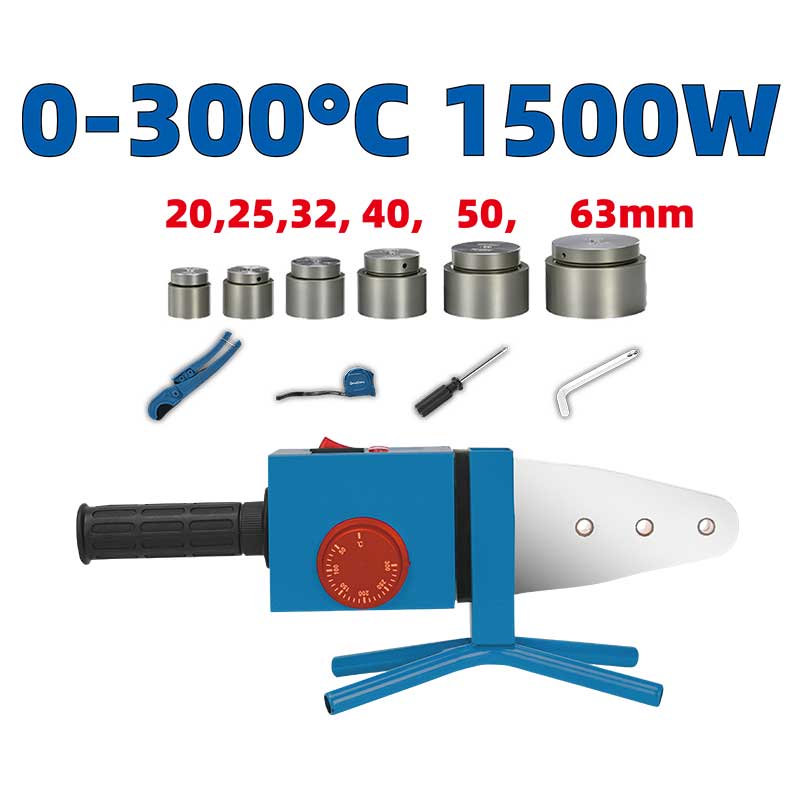

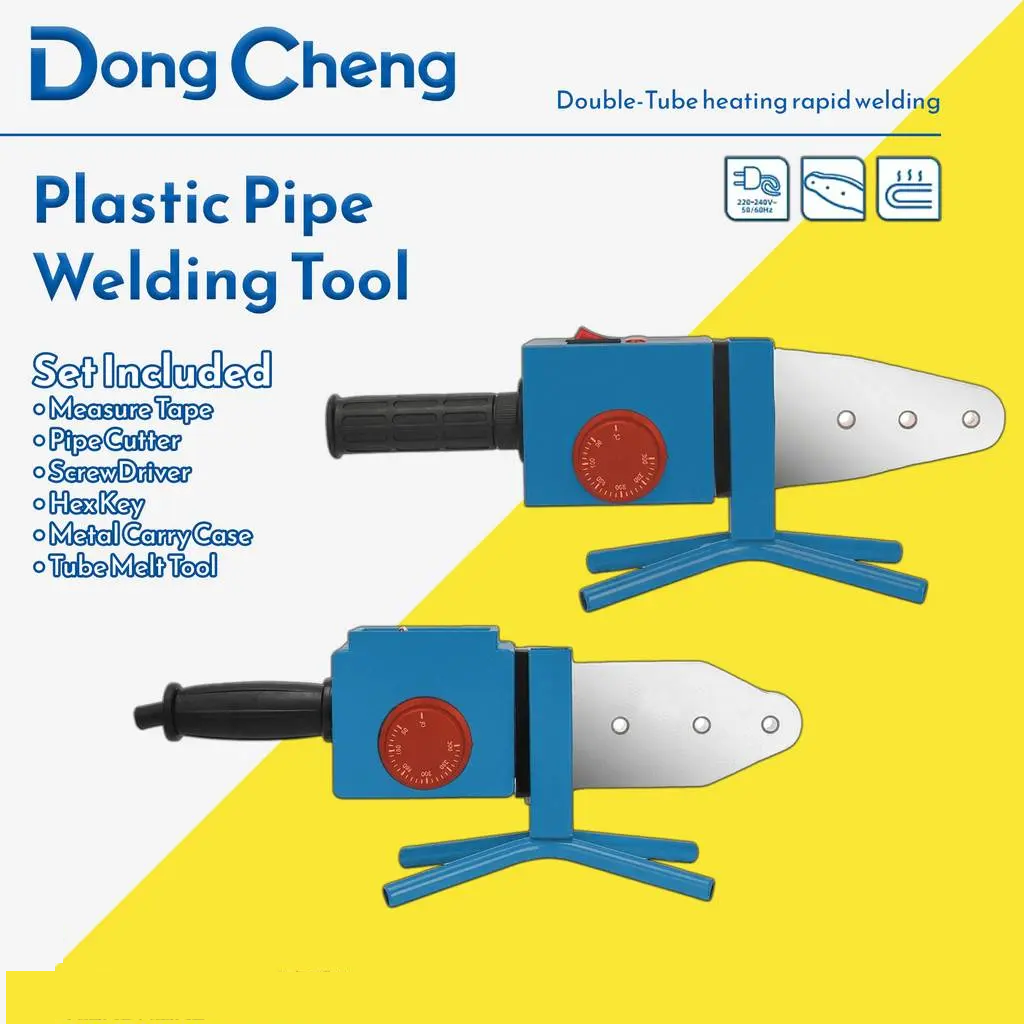

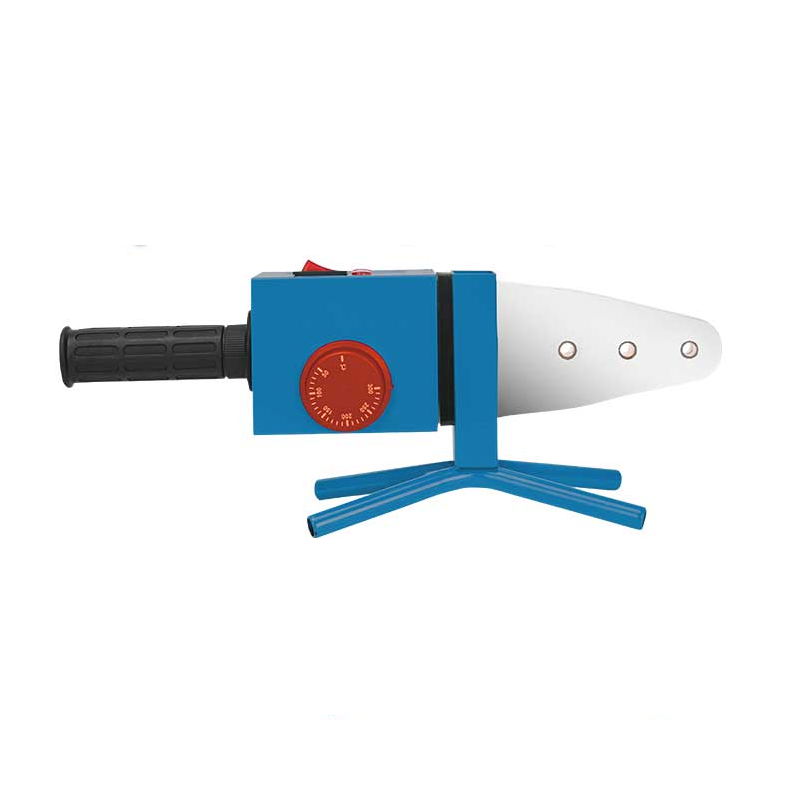

DONGCHENG 1500W Plastic Tube Welding Tool, 0-300°C, 20-63 mm Die Heads (HD162063A)-A 1500 W socket fusion welder for joining plastic pipes and fittings from 20 to 63 mm.
DONGCHENG 1500W Plastic Tube Welding Tool, 0-300°C, 20-63 mm Die Heads (HD162063A)-A 1500 W socket fusion welder for joining plastic pipes and fittings from 20 to 63 mm.
The DONGCHENG HD162063A Plastic Tube Welding Tool heats pipes and fittings so they fuse into one leak-free joint. It works from 0 to 300°C and takes die heads for 20, 25, 32, 40, 50, and 63 mm pipe. The thickened Teflon-coated die heads give an even heat and let the plastic release cleanly. Dual protection (a thermostat plus a fuse) helps guard against overheating. It runs on 220-240 V, 50/60 Hz at 1500 W with a 16 A rating, and comes in a colour box with an iron box. It is made for plumbers, installers, and contractors working with plastic water pipes.
Key Features
1500 W power, 0-300°C: quick heat-up and adjustable temperature
Six die heads: 20, 25, 32, 40, 50, and 63 mm
Thickened Teflon die heads: even heat and clean release
Dual protection: thermostat plus fuse
16 A rating
220-240 V, 50/60 Hz
Packed by colour box and iron box
Application
Joining plastic water supply pipes and fittings
Plumbing installation and repair
Hot and cold water systems
Building and renovation plumbing
Plumbing contractor and site use
Technical Specification
Specification
Detail
Brand
DONGCHENG
Model
HD162063A
Product Type
Plastic Tube Welding Tool (Socket Fusion Welder)
Voltage
220-240 V, 50/60 Hz
Input Power
1500 W
Rated Current
16 A
Working Temperature
0-300°C
Working Range
20, 25, 32, 40, 50, 63 mm
Die Head
Thickened Teflon
Protection
Thermostat + fuse
Packaging
Colour box and iron box
Safety Note:
Heating plates and die heads are extremely hot. Use on a stable surface, wear heat-resistant gloves, and never touch the heads while hot. Allow it to cool before storing. Use only pipe and fittings of the right size and material, and unplug it when not in use.
