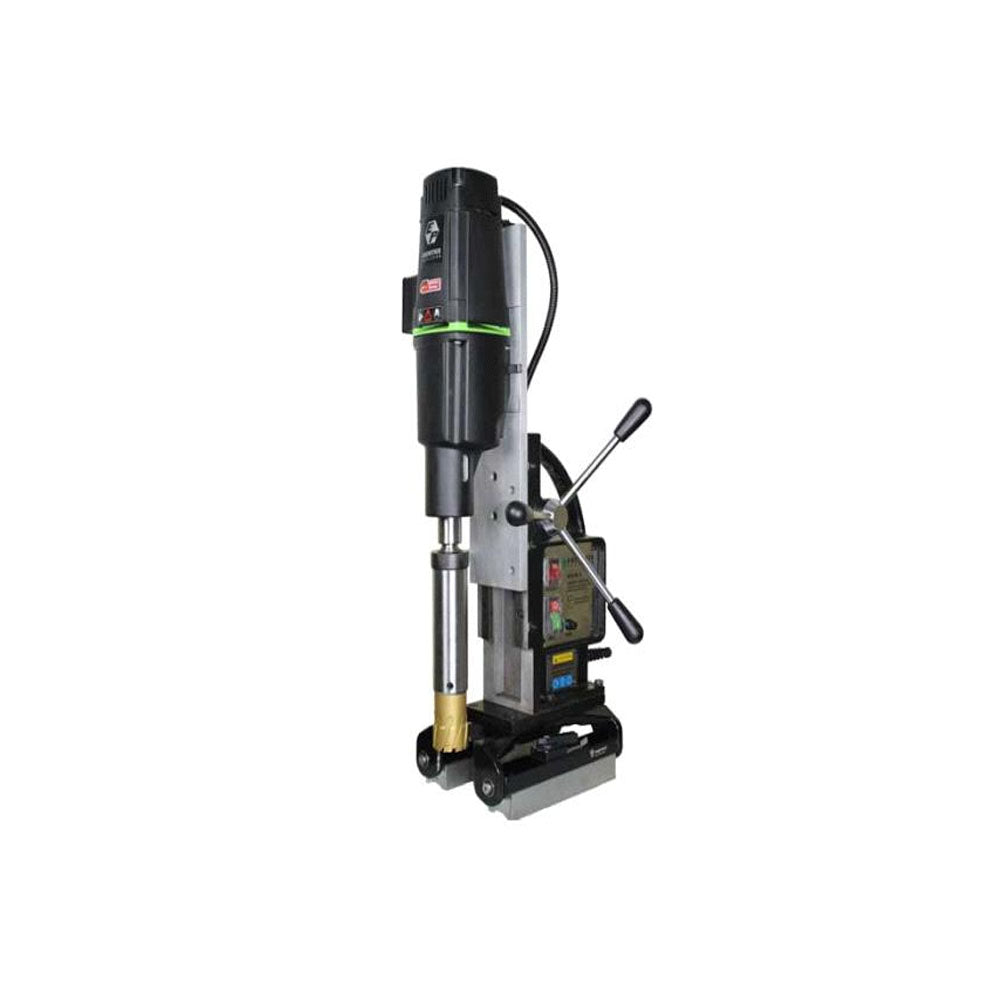

EIBEN STOCK PDM 85-3 X PERMANENT MAGNETIC PIPE CORE DRILLING MACHINE

SPECIFICATIONS

MODEL	PDM 85-3 X
RATED VOLTAGE (V)	220-240
POWER INPUT (W)	1700
RATED SPEED (RPM)	110/190/280
CORE CUTTING CAPACITY (MM)	12 to 60
MINIMUM PIPE SIZE (MM)	100
MAXIMUM PIPE SIZE (MM)	500
MAXIMUM THICKNESS OF PIPE (MM)	13
MINIMUM SQUARE PIPE SIZE (MM)	90
WEIGHT (KG)	28

FEATURES

Powerful permanent Magnetic pipe drilling machine with 3 speed mechanical oil cooled gear box delivering 1700 watt power with MK3 spindle is a work horse for Pipe industry. It can drill from 12mm – 60 mm diameter holes comfortably in up-to 500 mm pipe size. The sites where user needs to drill many holes in a single day, every day this machine lives up to expectations of the user. The user can also use twist drills up to 32mm with this machine.
