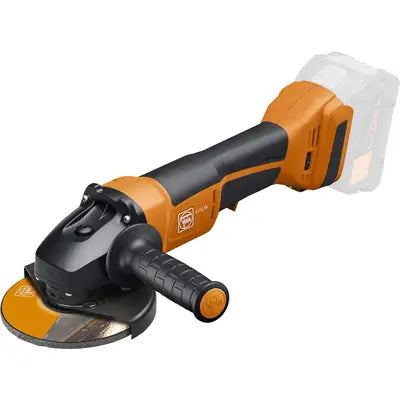

The Fein CCG 18-115-12 PD AS N00 71221761000 is a professional 18V cordless angle grinder designed for demanding cutting, grinding, deburring, brushing and surface-finishing applications. It features a 115mm disc diameter, powerful brushless motor and adjustable no-load speed from 2,500 to 8,500 RPM, allowing users to select an appropriate speed for different applications.
A key feature of this model is the integrated AutoStop dead-man switch, which is designed to stop the machine when the switch is released, providing an additional level of operator safety. The grinder also incorporates electronic overload protection, restart protection, blockage monitoring, soft start, electronic speed preselection and a brake.
The grinder uses an 18V AMPShare battery interface and is compatible with 18V AMPShare ProCORE Li-ion batteries and chargers. It can also be used with compatible 18V Bosch Professional cordless batteries, providing additional flexibility for users already working within those battery platforms.
The fully enclosed motor housing helps protect the motor against aggressive ceramic and mineral dust, while the cooling design supports heat dissipation. FEIN also incorporates POWERtronic tacho electronics for electronic motor control and speed regulation.
Important package note: The N00 / 71221761000 version is supplied without battery and charger. The standard package includes a protective guard, tool-free quick-clamping nut, anti-vibration handle, pin spanner and L-BOXX 238 storage case.
Product Features
18V Cordless Operation: Provides excellent mobility without the restrictions of a power cable.
115mm Grinding Disc: Designed for compatible 115mm grinding and cutting discs.
Powerful Brushless Motor: Provides efficient and durable motor performance for professional applications.
Variable Speed: Electronic speed selection from 2,500 to 8,500 RPM allows the tool to be adapted to different applications.
AutoStop Dead-Man Switch: Helps improve operator safety by stopping the grinder when the switch is released.
POWERtronic Tacho Electronics: Provides electronic motor control and speed regulation.
Electronic Speed Preselection: Allows the user to select an appropriate operating speed.
Soft Start: Helps provide controlled start-up operation.
Restart Protection: Helps prevent unintended restarting after an interruption of power.
Blockage Monitoring: Monitors the tool for blockage conditions.
Electronic Overload Protection: Helps protect the motor and electronics against overload.
Integrated Brake: Helps stop the rotating tool quickly after operation.
Dust-Resistant Motor Housing: Fully enclosed motor housing helps protect against aggressive ceramic and mineral dust.
Tool-Free Quick-Clamping Nut: Enables faster accessory changes without requiring a conventional wrench.
Anti-Vibration Handle: Helps improve comfort and control during extended grinding work.
18V AMPShare Compatibility: Compatible with AMPShare ProCORE batteries and chargers.
Bosch Professional Compatibility: Suitable for compatible 18V Bosch Professional cordless batteries.
L-BOXX Storage: Supplied with an L-BOXX 238 system case for convenient transportation and storage.
Professional FEIN Construction: Designed for demanding assembly, fabrication, maintenance and workshop applications.
Product Specifications
Brand: Fein
Product Type: Cordless Angle Grinder
Model:CCG 18-115-12 PD AS
Product Number:7 122 17 61 00 0
Your Model Code:71221761000
Battery Voltage:18V
Battery Interface:18V AMPShare
Motor Type:Brushless
Battery Compatibility: Li-ion / ProCORE Li-ion
No-Load Speed:2,500–8,500 RPM
Grinding Disc Diameter:115mm
Backing Pad Diameter:115mm
Spindle/Flange Thread:M14
Dead-Man Switch:AutoStop
Speed Control: Electronic
Soft Start: Yes
Restart Protection: Yes
Blockage Monitoring: Yes
Electronic Overload Protection: Yes
Brake: Yes
Motor Protection: Fully enclosed motor housing
Sound Pressure Level:89.3 dB(A)
Sound Power Level:97.3 dB(A)
Vibration Value:3.7 m/s² / 1.9 m/s², depending on application.
Battery Included:No
Charger Included:No
Storage Case:L-BOXX 238
Included Accessories: Cutting guard, tool-free quick-clamping nut, anti-vibration handle and pin spanner.
Wide Applications

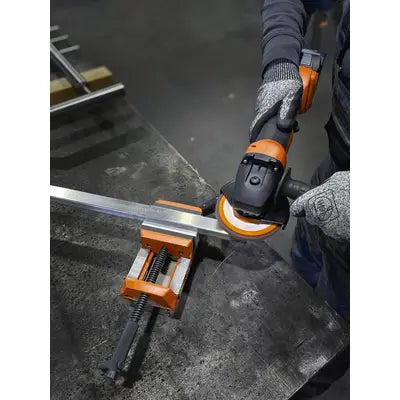

Metal Cutting – Suitable for cutting compatible metal materials using the correct 115mm cutting disc.
Grinding – Ideal for material removal, surface correction and general metal grinding.
Deburring – Particularly suitable for removing burrs and sharp edges from fabricated or machined components.
Weld Finishing – Useful for smoothing welds and preparing fabricated metal surfaces.
Brushing – Suitable for surface cleaning and rust removal using compatible wire brushes.
Satin Finishing – Can be used for controlled surface finishing with suitable accessories.
Fabrication Workshops – Useful for cutting, grinding and finishing fabricated metal components.
Automotive Maintenance – Suitable for compatible automotive repair and metalworking applications.
Industrial Maintenance – Useful for machinery maintenance, repair and component preparation.
Construction Applications – Suitable for compatible metal cutting and grinding tasks at construction sites.
Engineering Workshops – Useful for professional metalworking and maintenance operations.
Assembly Work – FEIN specifically positions the tool for effective cutting, grinding and deburring work during assembly jobs.
