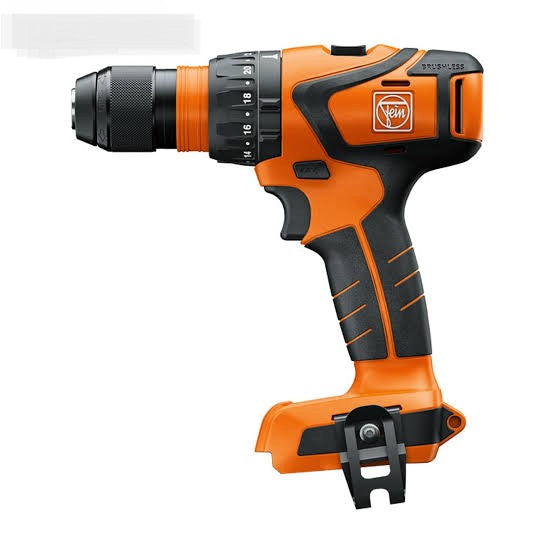

Fein ABS 18 Q AS is a professional 18V cordless drill driver designed for demanding drilling and screwdriving applications in workshops, construction, installation and maintenance environments. It features a brushless FEIN PowerDrive motor, a durable 2-speed all-metal gearbox and the versatile FEIN QuickIN interface, allowing one compact tool to handle a wide range of drilling and fastening tasks. The exact product number is 7 113 24 61 00 0 / 71132461000.
The ABS 18 Q AS delivers 60Nm maximum hard torque and 38Nm soft torque, with 22 + 1 mechanical torque settings for controlled screwdriving. Its two-speed gearbox provides 450 RPM in first gear and 2,000 RPM in second gear, giving the operator a choice between higher torque and higher drilling speed.
The integrated FEIN QuickIN system allows compatible accessories to be changed rapidly, increasing the versatility of the tool. The supplied QuickIN metal drill chuck has a 1.5–13mm clamping range and a 120Nm chuck capacity, with carbide-tipped clamping jaws designed for strong bit retention.
The ABS 18 Q AS is part of the 18V AMPShare battery platform and is compatible with suitable AMPShare batteries and Bosch Professional 18V batteries. This N00 version is supplied without a battery and charger, making it suitable for users who already have compatible 18V batteries.
Product Features & Specifications
Brand: Fein
Model:ABS 18 Q AS
Part Number:71132461000
Product Number:7 113 24 61 00 0
Product Type:Cordless Drill Driver
Battery Voltage:18V
Battery Type:Li-ion / ProCORE Li-ion
Battery Interface:18V AMPShare
Motor:Brushless FEIN PowerDrive Motor
Gearbox:2-Speed All-Metal Gearbox
Accessory Interface:FEIN QuickIN
No-Load Speed:450 / 2,000 RPM
Maximum Torque:60Nm Hard / 38Nm Soft
Torque Settings:22 + 1
Drill Chuck:QuickIN Metal Drill Chuck
Chuck Clamping Range:1.5–13mm
Chuck Capacity:120Nm
Maximum Drilling Diameter in Steel:13mm
Maximum Drilling Diameter in Wood:50mm
Maximum Fastening Capacity:8 × 300mm
Tapping Capacity:M10
Impact Function:No – this model is a drill driver rather than the impact/hammer version ASB 18 Q AS.
Brushless Motor: Provides high efficiency, long service life and reduced maintenance.
FEIN PowerDrive Motor: Designed for efficient power delivery and demanding professional applications.
All-Metal Gearbox: Provides improved durability and reliability under heavy workloads.
Mechanical Torque Setting: Provides precise adjustment for different screwdriving requirements.
QuickIN Interface: Allows fast changes between compatible drill chucks and other QuickIN accessories.
Removable Drill Chuck: Provides additional flexibility for accessory changes.
Compact Design: Supports convenient handling in confined or difficult-to-reach areas.
Bit Holder: Provides convenient storage for frequently used screwdriver bits.
Belt Holder: Allows the tool to be carried conveniently during mobile installation work.
AMPShare Compatibility: Works with compatible 18V AMPShare batteries and chargers.
Bosch Professional Compatibility: Compatible with suitable Bosch Professional 18V batteries.
Electronic Cell Protection: Compatible AMPShare battery technology helps protect batteries against overload, overheating and deep discharge.
Tool-Only Configuration: The N00 version does not include battery or charger.

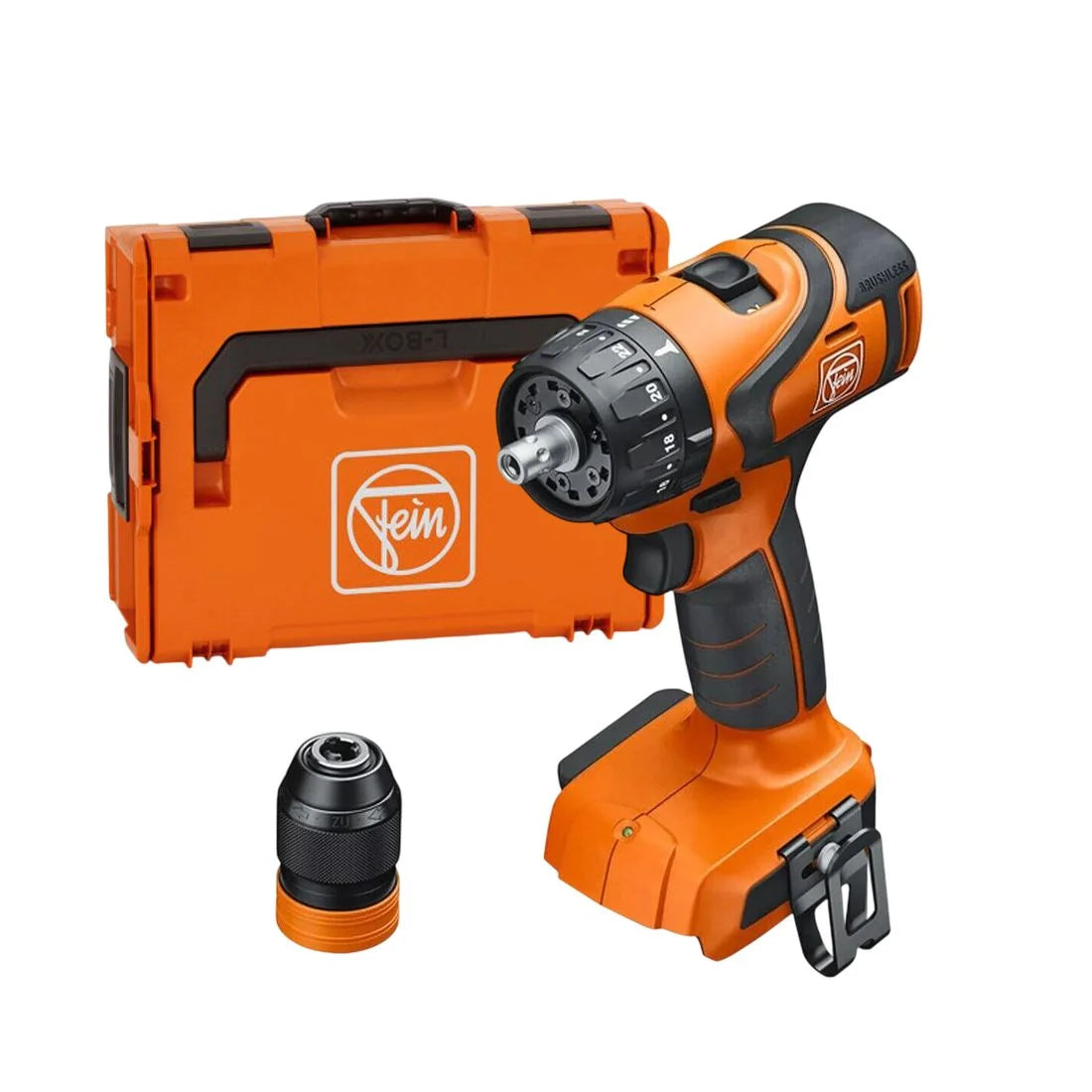

L-BOXX Compatibility: Designed for convenient storage, transport and organization using the L-BOXX system.
Drilling & Fastening Capacities
Steel Drilling: Up to 13mm
Wood Drilling: Up to 50mm
Screwdriving: Up to 8 × 300mm
Tapping: Up to M10
Chuck Range:1.5–13mm
Maximum Torque:60Nm hard / 38Nm soft
Speed Range:450–2,000 RPM
Key Benefits
18V cordless operation provides freedom of movement without a power cable.
Brushless FEIN PowerDrive motor provides efficient performance and long service life.
60Nm maximum hard torque provides strong drilling and fastening capability.
2-speed gearbox provides flexibility between high-torque and high-speed applications.
450–2,000 RPM speed range supports different drilling and screwdriving requirements.
22 + 1 torque settings provide excellent fastening control.
13mm steel drilling capacity is suitable for many professional metalworking and installation tasks.
