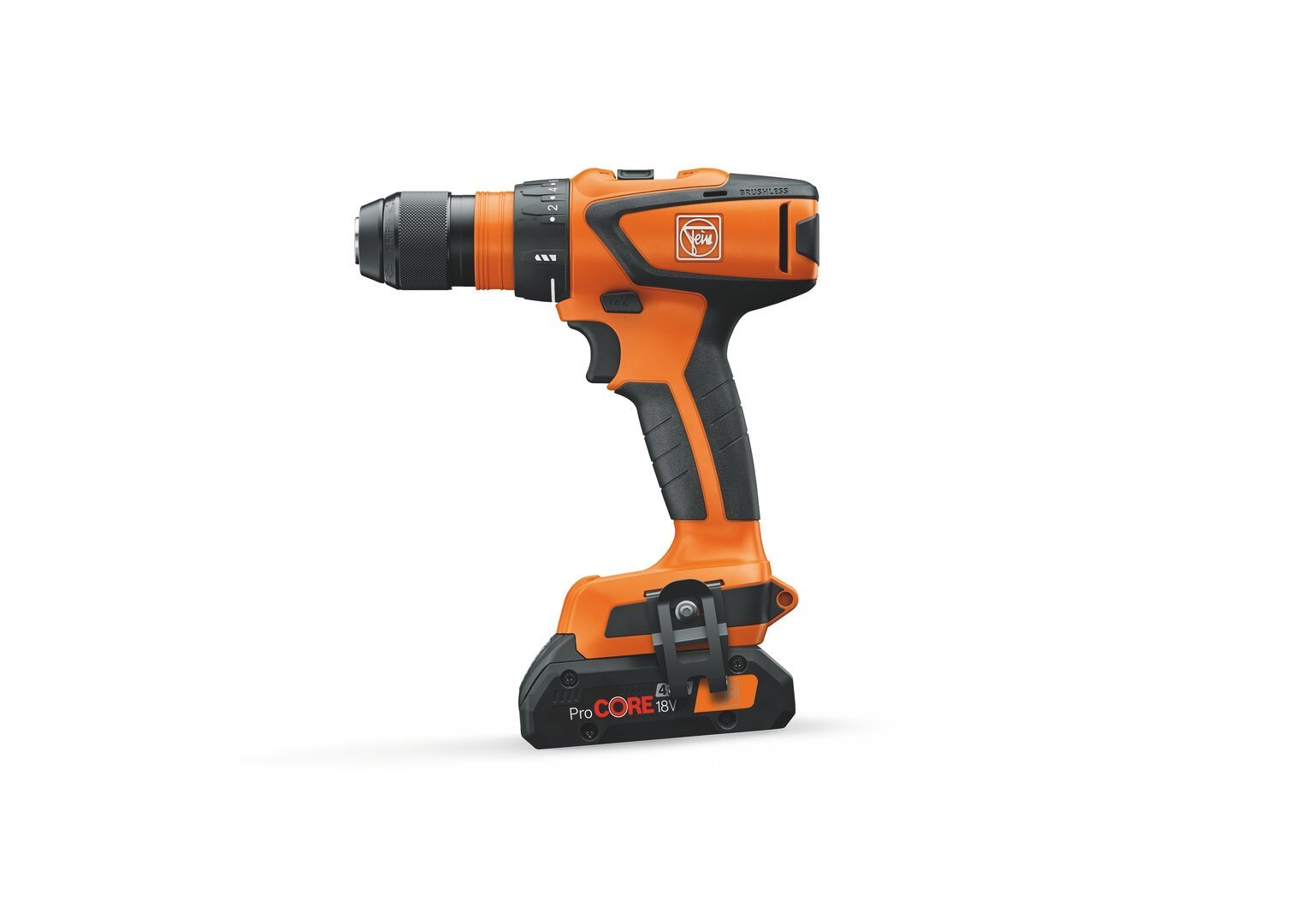

The Fein ASCM 18 QSW AS N00 is a compact and lightweight 18V cordless drill driver designed for professional drilling and screwdriving applications. The requested Part No. 71161461000 corresponds to FEIN Product No. 7 116 14 61 00 0. It combines a brushless FEIN PowerDrive motor, 4-speed solid-metal gearbox and the versatile FEIN QuickIN interface.
With a maximum torque of 40Nm in hard applications and 30Nm in soft applications, the ASCM 18 QSW AS provides four selectable speed ranges from 400 to 2500 RPM. Its 20+1 mechanical torque settings allow controlled fastening, while the 1.5–13mm QuickIN drill chuck provides a wide clamping range for drilling accessories.
The compact tool weighs approximately 0.99kg without the battery, making it particularly suitable for extended professional use. The QuickIN system allows accessories to be changed quickly, making one tool suitable for applications in metal and timber.
Product Features & Specifications
Brand: Fein
Model:ASCM 18 QSW AS
Part Number:71161461000
Product Number:7 116 14 61 00 0
Product Type: Cordless Drill Driver
Battery Voltage:18V
Battery Platform:18V AMPShare
Battery: Not included
Charger: Not included
Motor:Brushless FEIN PowerDrive
Gearbox:4-speed solid metal
Accessory Interface:QuickIN
No-Load Speed:400 / 700 / 1,400 / 2,500 RPM
Maximum Torque – Hard:40Nm
Maximum Torque – Soft:30Nm
Torque Settings:20 + 1
Drill Chuck Capacity:1.5–13mm
Drilling Capacity in Steel:13mm
Drilling Capacity in Wood:40mm
Fastening Capacity:8 × 200mm
Tapping Capacity:M8
Weight Without Battery:0.99kg
Battery Compatibility: Li-ion / ProCORE Li-ion
Battery Interface: 18V AMPShare
Storage:L-BOXX system
Key Benefits
18V cordless operation for excellent mobility.
40Nm maximum hard torque for demanding fastening.
30Nm soft torque for controlled applications.
4-speed gearbox for optimized drilling performance.
400–2500 RPM speed range.
20+1 torque settings for fastening precision.
1.5–13mm drill chuck for versatile accessory compatibility.
13mm steel drilling capacity.
40mm wood drilling capacity.
M8 tapping capacity.
Brushless motor for efficiency and durability.
QuickIN interface for rapid accessory changes.
0.99kg tool weight without battery for comfortable handling.
AMPShare compatibility with compatible 18V batteries.
Bosch Professional 18V battery compatibility.
L-BOXX compatibility for convenient storage and transportation.
