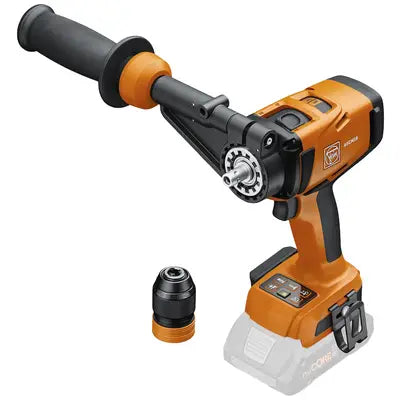

The Fein ASCM 18-4 QM AS QUICKIN Set 71161566000 is a professional 18V cordless drill driver set designed for versatile drilling, screwdriving, tapping, countersinking and core drilling applications. It combines a brushless FEIN PowerDrive motor, 4-speed solid metal gearbox and the highly versatile QuickIN system, allowing users to switch between compatible accessories quickly and efficiently.
The drill provides up to 130Nm maximum torque and offers four speed settings of 430, 850, 2000 and 4000 RPM, providing suitable working speeds for different materials and applications. The QuickIN solid metal drill chuck provides strong clamping performance, while the electronic torque adjustment offers precise control during fastening work.
The QUICKIN Set comes with a 7-piece QuickIN accessory set for increased application versatility. Unlike the QUICKIN TOP version, this set is supplied without a battery and charger, making it suitable for users who already have compatible 18V AMPShare or Bosch Professional 18V batteries.
Product Features & Specifications
Brand: Fein
Product Type:Cordless Drill Driver Set
Model:ASCM 18-4 QM AS QUICKIN
Part Number:71161566000
EAN:4014586900735
Battery Voltage:18V
Battery System:AMPShare
Motor:Brushless FEIN PowerDrive
Gearbox:4-Speed Solid Metal
Accessory Interface:QuickIN
No-Load Speed:430 / 850 / 2000 / 4000 RPM
Maximum Torque:130Nm
Hard Torque:70Nm
Soft Torque:50Nm
Torque Settings:15 + 1

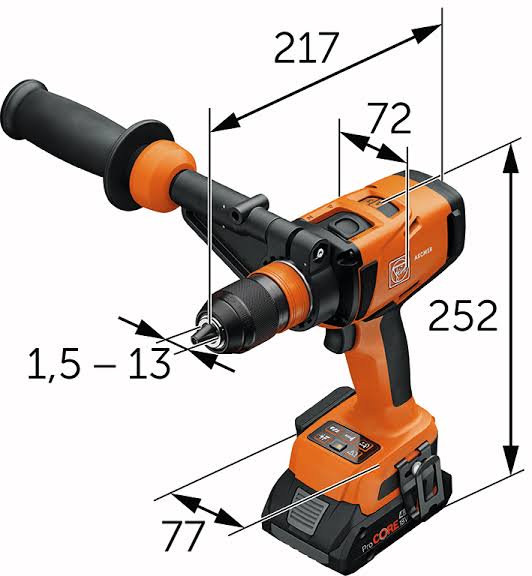

QuickIN Drill Chuck Capacity:1.5–13mm
Steel Twist Drill Capacity:13mm
Steel Core Drill Capacity:30mm
Steel Hole Saw Capacity:80mm
Wood Drilling Capacity:60mm
Tapping Capacity:M14
Screwdriving Capacity:10 × 400mm
LED Work Light:Dimmable
Kickback Monitoring:Yes
Electronic Overload Protection:Yes
Electronic Torque Shut-Off:Yes
Battery Included:No
Charger Included:No
Tool Case:L-BOXX 136
Accessory Storage:i-BOXX 72 + i-BOXX Rack
Key Benefits
130Nm Maximum Torque: Provides strong performance for demanding drilling, tapping and fastening applications.
18V Brushless Motor: The FEIN PowerDrive motor provides efficient power delivery and helps support long service life.
4-Speed Solid Metal Gearbox: Offers four speed levels up to 4000 RPM, allowing suitable speed selection for different materials.
QuickIN System: Enables fast, tool-free changes between compatible attachments.
7 QuickIN Attachments: Provides versatility for drilling, tapping, screwdriving and other professional applications.
QuickIN Metal Chuck: Provides secure clamping for drill bits and accessories.
M14 Tapping Capability: Suitable for professional thread-cutting applications.
15+1 Torque Settings: Allows controlled torque adjustment for fastening work.
Kickback Monitoring: Helps stop the machine when sudden blocking or kickback is detected.
Electronic Overload Protection: Helps protect the tool during demanding applications.
Dimmable LED: Provides improved visibility around the working area.
AMPShare Compatibility: Works with compatible 18V AMPShare batteries and Bosch Professional 18V batteries.
Battery-Free Set: Ideal for users who already own compatible 18V batteries and chargers.
Organized Storage: L-BOXX, i-BOXX and i-BOXX Rack keep the drill and accessories organized.

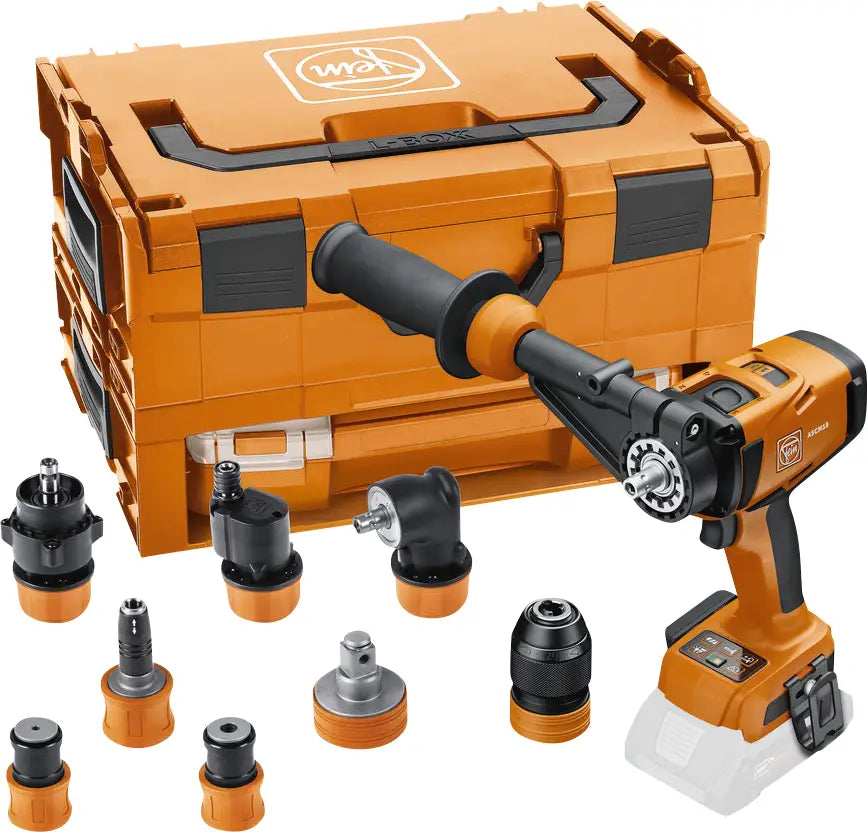

Kit Contents
1 × Fein ASCM 18-4 QM AS Cordless Drill Driver
1 × QuickIN Accessory Set – 7 Pieces
1 × L-BOXX 136 Plastic Tool Case
1 × i-BOXX 72
1 × i-BOXX Rack
Important:Battery and charger are not included with Part No. 71161566000. A compatible 18V AMPShare battery and charger must be purchased separately.
