The Fein ASCM 18-4 QM AS QUICKIN TOP Set 71161565000 is a professional 18V cordless drill driver set designed for versatile drilling, tapping, countersinking and screwdriving applications. It combines a brushless FEIN PowerDrive motor, 4-speed solid metal gearbox and the versatile QuickIN accessory interface, allowing users to switch between applications quickly and efficiently.
The drill delivers up to 130Nm maximum torque with four speed settings of 430, 850, 2000 and 4000 RPM. Its QuickIN solid metal drill chuck features carbide-tipped clamping jaws and provides strong bit retention for demanding professional applications.

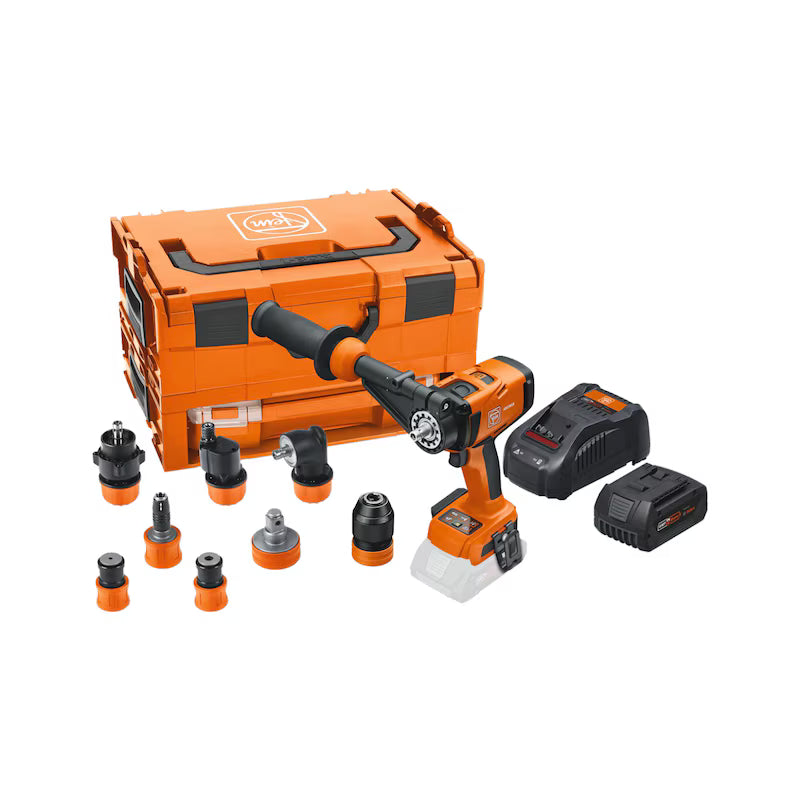

The QUICKIN TOP Set includes 7 QuickIN quick-change attachments, making the tool suitable for a wide range of drilling, hole-making, tapping and screwdriving tasks. FEIN also supplies the set with an 18V 5.0Ah GBA battery, GAL 1880 CV AS rapid charger, and organized storage through the i-BOXX system.
Wide Application Details
The Fein ASCM 18-4 QM AS QUICKIN TOP is suitable for metalworking, steel drilling, wood drilling, core drilling, hole-saw applications, tapping, countersinking, screwdriving, mechanical assembly, fabrication, electrical installation, construction, maintenance and professional workshop applications.
Product Features & Specifications
Brand: Fein
Product Type:Cordless Drill Driver Set
Model:ASCM 18-4 QM AS QUICKIN TOP
Part Number:71161565000
Battery Voltage:18V
Battery Capacity:5.0Ah
Battery Interface:18V AMPShare
Motor:Brushless FEIN PowerDrive
Gearbox:4-Speed Solid Metal
Accessory Interface:QuickIN
No-Load Speed:430 / 850 / 2000 / 4000 RPM
Maximum Torque:130Nm
Hard Torque:70Nm
Soft Torque:50Nm
Torque Settings:15 + 1
Drill Chuck Capacity:1.5–13mm
Steel Twist Drill Capacity:13mm
Steel Core Drill Capacity:30mm
Steel Hole Saw Capacity:80mm
Wood Drilling Capacity:60mm
Tapping Capacity:M14
Fastening Capacity:10 × 400mm
Weight Without Battery:1.30kg
Kickback Monitoring:Yes
Electronic Torque Shut-Off:Yes
Electronic Overload Protection:Yes
LED Work Light:Dimmable
Storage System:i-BOXX
Power Source:18V Cordless
Key Benefits
130Nm Maximum Torque: Delivers strong performance for demanding drilling and fastening work.
18V Brushless Motor: FEIN PowerDrive technology provides efficient power delivery and supports long motor life.
4-Speed Metal Gearbox: Offers four speed levels from 430 to 4000 RPM for selecting suitable speeds across different applications.
QuickIN System: Enables fast, tool-free changes between compatible attachments.
7 QuickIN Attachments: Provides excellent versatility for drilling, tapping, hole-making and screwdriving applications.
QuickIN Solid Metal Chuck: The 1.5–13mm chuck with carbide-tipped clamping jaws provides strong accessory retention.
M14 Tapping Capacity: Suitable for professional thread-cutting applications.
15+1 Torque Settings: Provides controlled torque adjustment for different fastening requirements.
Kickback Monitoring: Helps stop the tool when sudden blocking or kickback is detected.
Electronic Overload Protection: Helps protect the tool during demanding applications.
Dimmable LED: Provides improved visibility around the work area.
