The Fein ASCM 18-4 QM P AS N00 71161661000 is a professional 18V cordless hammer drill driver designed for demanding drilling, hammer drilling, screwdriving, tapping and fastening applications. It combines a brushless FEIN PowerDrive motor, robust 4-speed all-metal gearbox and versatile QuickIN interface for efficient professional use.
With up to 130Nm maximum torque and four speed ranges from 430 to 4000 RPM, the drill provides excellent control for different materials and applications. The integrated hammer drilling function expands its capability for drilling into masonry and other suitable building materials.
The QuickIN system enables fast, tool-free changes between compatible accessories, allowing the same machine to be adapted for drilling, screwdriving, tapping and other professional tasks. The solid metal 1.5–13mm drill chuck provides secure clamping and reliable accessory retention.
The tool also features electronic torque shut-off, kickback monitoring, electronic overload protection and a dimmable LED work light, providing enhanced control and safety during demanding applications.
Product Features & Specifications
Brand: Fein
Product Type:Cordless Hammer Drill Driver
Model:ASCM 18-4 QM P AS N00
Part Number:71161661000
Battery Voltage:18V
Battery System:AMPShare
Motor:Brushless FEIN PowerDrive
Gearbox:4-Speed All-Metal
Accessory Interface:QuickIN
No-Load Speed:430 / 850 / 2000 / 4000 RPM
Maximum Torque:130Nm
Hard Torque:70Nm
Soft Torque:50Nm
Torque Settings:15 + 1
Chuck Capacity:1.5–13mm
Hammer Drilling Function:Yes
Steel Twist Drill Capacity:13mm
Steel Core Drill Capacity:30mm
Steel Hole Saw Capacity:80mm
Wood Drilling Capacity:60mm
Tapping Capacity:M14
Fastening Capacity:10 × 400mm
Kickback Monitoring:Yes
Electronic Overload Protection:Yes
Electronic Torque Shut-Off:Yes
LED Work Light:Dimmable
Battery Included:No
Charger Included:No
Weight Without Battery: Approximately 1.50kg
Key Benefits
130Nm Maximum Torque: Provides powerful performance for demanding drilling, fastening and screwdriving applications.
18V Brushless Motor: FEIN PowerDrive technology delivers efficient power and supports long service life.
4-Speed All-Metal Gearbox: Offers four speed levels from 430 to 4000 RPM for precise speed selection.
Hammer Drilling Function: Provides additional versatility for suitable masonry and building-material applications.
QuickIN System: Allows compatible accessories to be changed quickly without additional tools.
1.5–13mm Solid Metal Chuck: Provides secure and reliable clamping of compatible drill bits.
M14 Tapping Capacity: Suitable for professional thread-cutting applications.
15+1 Torque Settings: Provides precise control for different screwdriving requirements.
Kickback Monitoring: Helps reduce uncontrolled tool movement during sudden accessory blockage.
Electronic Overload Protection: Helps protect the tool during demanding operations.
Electronic Torque Shut-Off: Supports controlled and repeatable fastening.
Dimmable LED Work Light: Improves visibility around the working area.
AMPShare Compatible: Can be used with compatible 18V AMPShare battery systems.
N00 Version: Supplied as a bare tool, allowing users with compatible batteries and chargers to avoid purchasing duplicate power supplies.

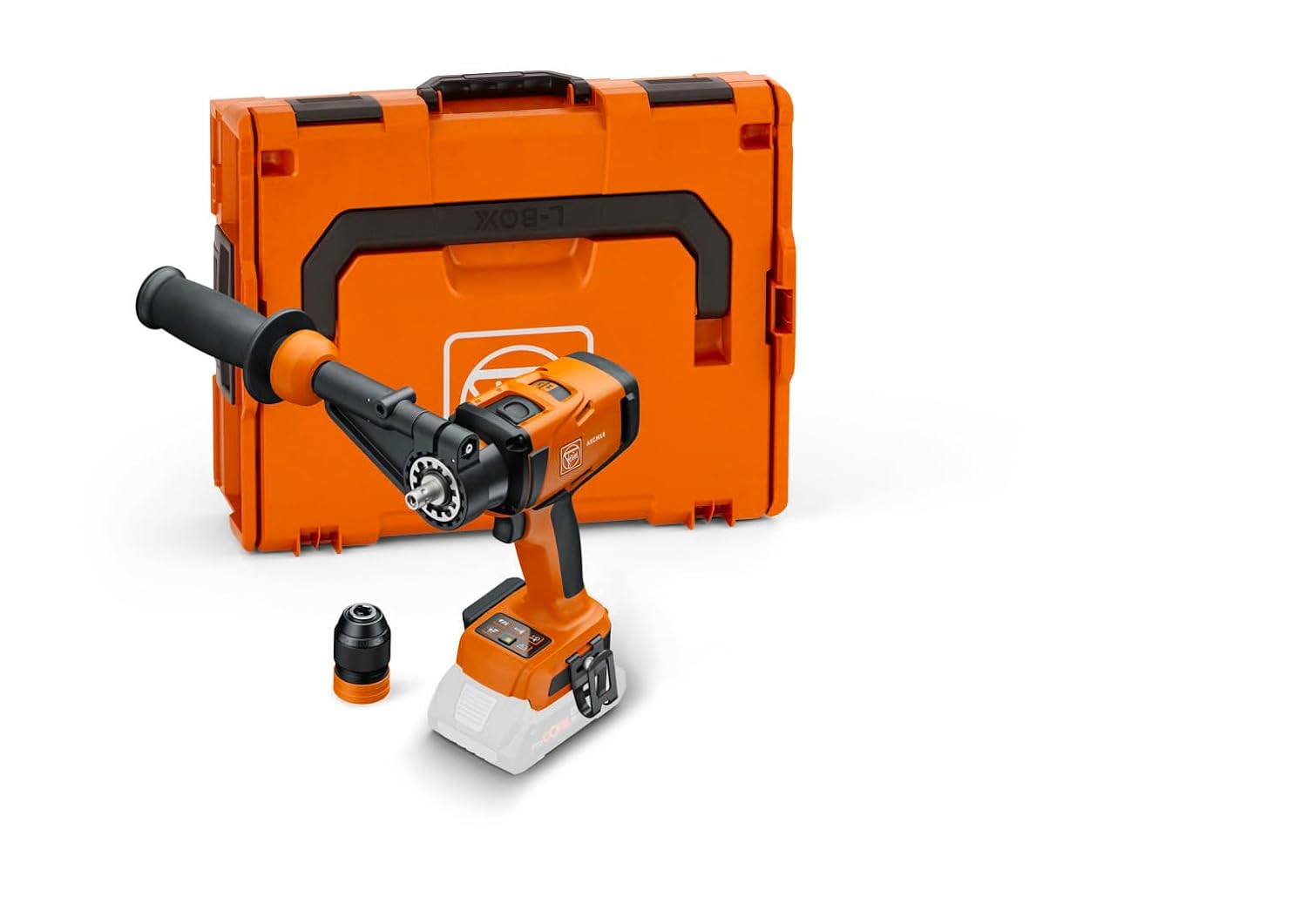

Kit Contents

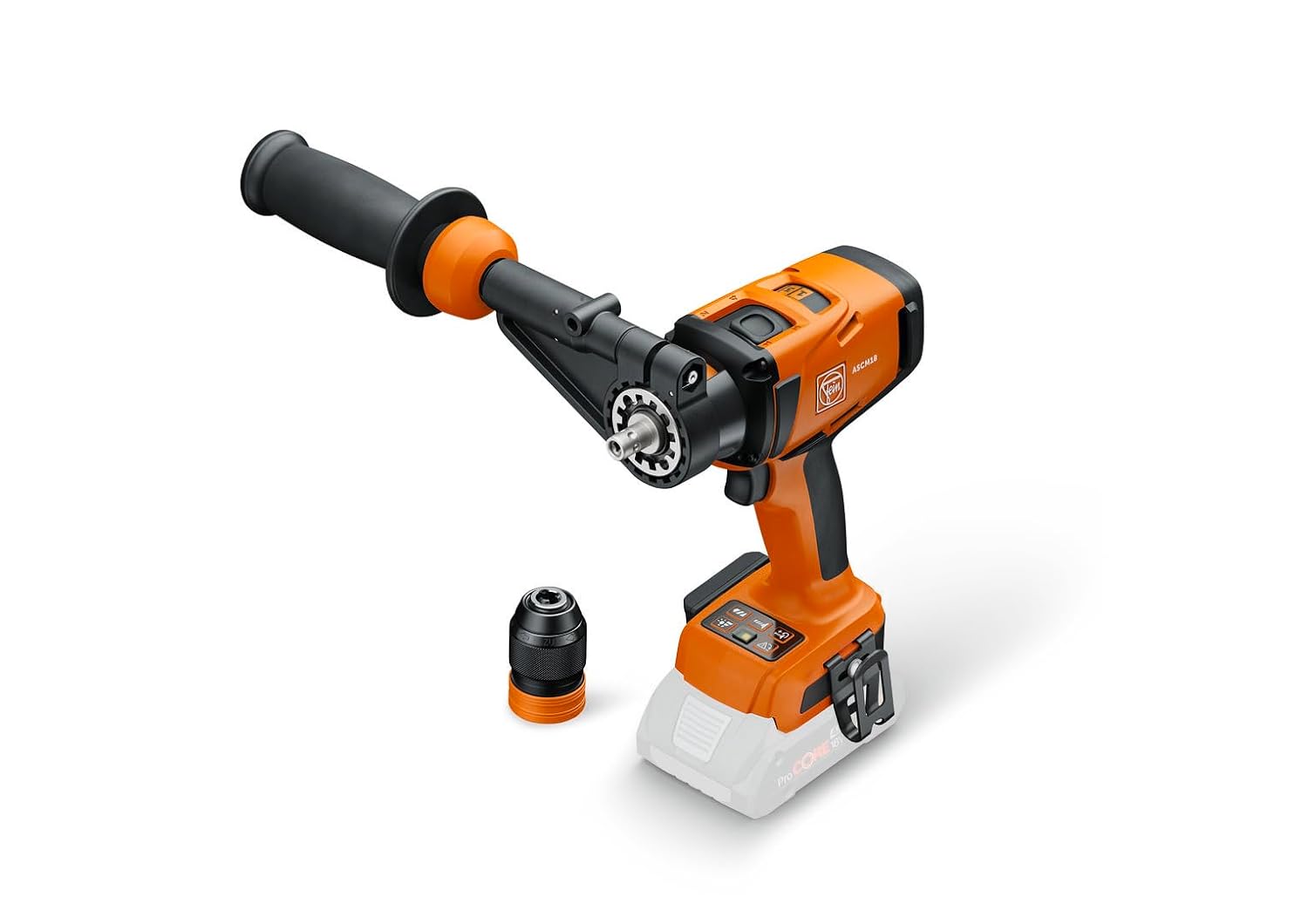

1 × Fein ASCM 18-4 QM P AS N00 Cordless Hammer Drill Driver
1 × QuickIN 1.5–13mm Drill Chuck
1 × Auxiliary Handle
1 × Belt Clip
1 × Magnetic Bit Holder
Important: The N00 version is supplied without battery and charger. A compatible 18V AMPShare battery and charger must be purchased separately.
