The Fein ASCM 18-4 QMP AS SET 5Ah 71161665000 is a professional 18V cordless hammer drill driver designed for demanding drilling, hammer drilling, screwdriving, tapping, countersinking and fastening applications. It combines a brushless FEIN motor, robust 4-speed all-metal gearbox and versatile QuickIN interface for efficient professional use.
The tool delivers up to 130Nm maximum torque and provides four no-load speed settings of 430, 850, 2000 and 4000 RPM. The switchable impact mechanism provides up to 60,000 impacts per minute, making the QMP version suitable for drilling in suitable masonry and stone materials in addition to metal and wood applications.
The QuickIN system allows compatible accessories to be changed quickly without tools. With a 1.5–13mm QuickIN drill chuck, the machine provides secure accessory clamping for professional drilling and fastening work.

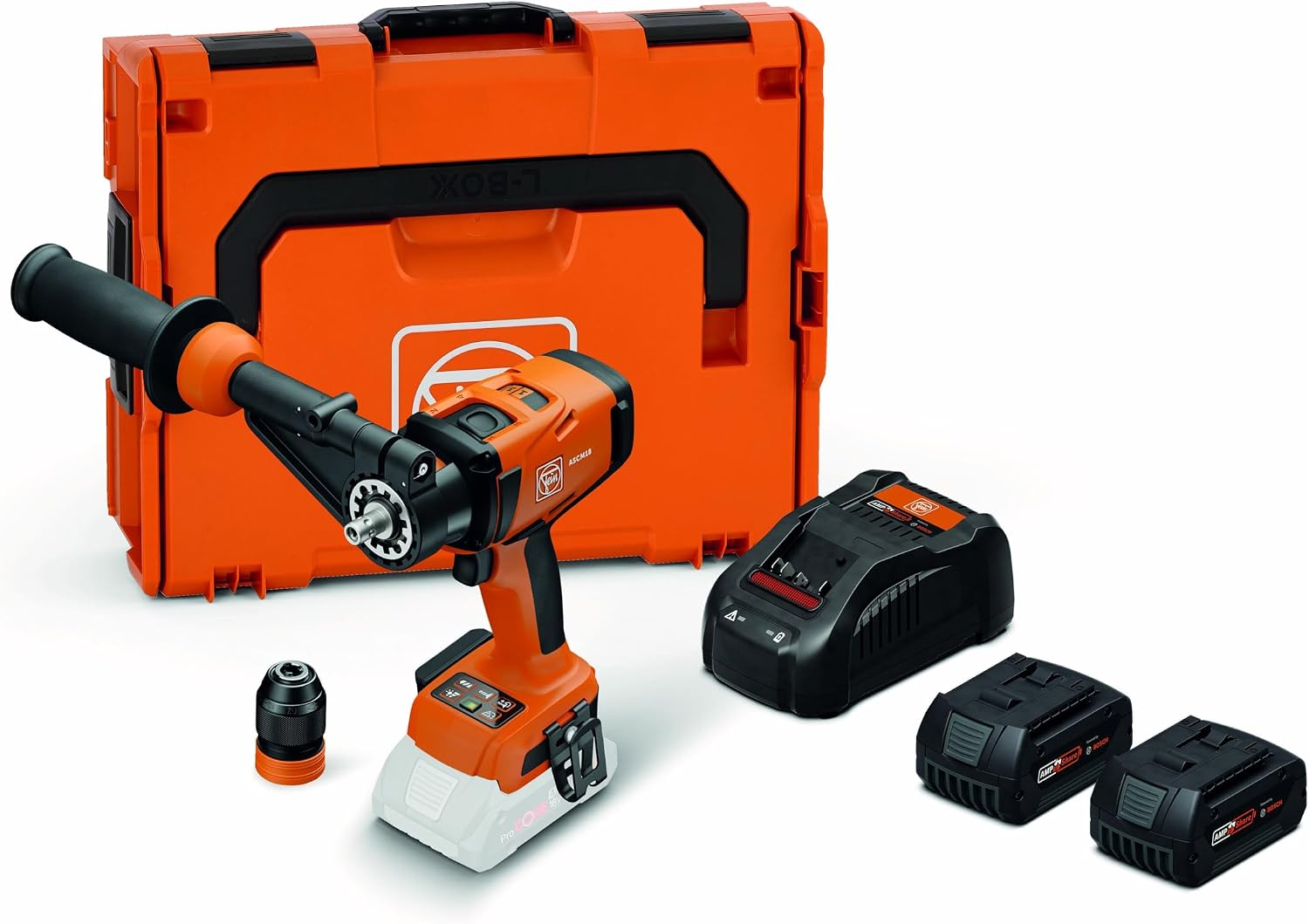

The 5Ah Set includes 2 × GBA 18V 5.0Ah AS batteries, a GAL 1880 CV AS rapid charger, QuickIN drill chuck, telescopic auxiliary handle, belt clip, magnetic bit storage and an L-BOXX 136 tool case.
Product Features & Specifications
Brand: Fein
Product Type:Cordless Hammer Drill Driver
Model:ASCM 18-4 QMP AS
Part Number:71161665000
Battery Voltage:18V
Battery Capacity:5Ah
Number Of Batteries:2
Battery Interface:18V AMPShare
Battery Compatibility:Li-Ion / ProCORE Li-Ion
Motor:Brushless
Gearbox:4-Speed All-Metal
Accessory Interface:QuickIN
No-Load Speed:430 / 850 / 2000 / 4000 RPM
Impact Rate:6,450 / 12,750 / 30,000 / 60,000 BPM
Maximum Torque:130Nm
Hard Torque:70Nm
Soft Torque:50Nm
Torque Settings:15 + 1
Drill Chuck Capacity:1.5–13mm
Steel Twist Drill Capacity:13mm
Steel Core Drill Capacity:30mm
Steel Hole Saw Capacity:80mm
Wood Drilling Capacity:60mm
Stone Drilling Capacity:13mm
Tapping Capacity:M14
Fastening Capacity:10 × 400mm
Impact Mechanism:Switchable
Electronic Torque Shut-Off:Yes
Electronic Overload Protection:Yes
Restart Protection:Yes
Brake:Yes
LED Work Light:Dimmable
Weight Without Battery:1.40kg
Tool Case:L-BOXX 136
Key Benefits
130Nm Maximum Torque: Provides powerful performance for demanding drilling, fastening and screwdriving applications.
18V Brushless Motor: Delivers efficient power and supports long service life.
4-Speed All-Metal Gearbox: Provides four speed ranges from 430 to 4000 RPM for selecting the appropriate working speed.
Switchable Hammer Function: Expands the tool's capabilities for suitable masonry and stone drilling.
Up To 60,000 BPM: Provides high impact frequency for efficient hammer drilling.
QuickIN System: Allows rapid, tool-free changes between compatible accessories.
1.5–13mm QuickIN Chuck: Provides secure clamping of compatible drill bits and accessories.
M14 Tapping Capacity: Suitable for professional thread-cutting applications.
80mm Hole-Saw Capacity: Supports large-diameter hole-saw work in steel with suitable carbide hole saws.
15+1 Torque Settings: Provides controlled torque adjustment for fastening applications.
Electronic Torque Shut-Off: Helps provide precise and repeatable screwdriving.
Kickback Protection: FEIN's protection features help improve control during demanding applications.
Electronic Overload Protection: Helps protect the tool from excessive loads.
Restart Protection: Helps prevent unintended restarting after an interruption.
Dimmable LED: Improves visibility around the working area.
2 × 5Ah Batteries: Provides extended working capacity and allows continuous operation while one battery is charging.
AMPShare Compatible: Works with compatible 18V AMPShare batteries and Bosch Professional 18V batteries.
L-BOXX Storage: Provides convenient transportation and organized storage.
