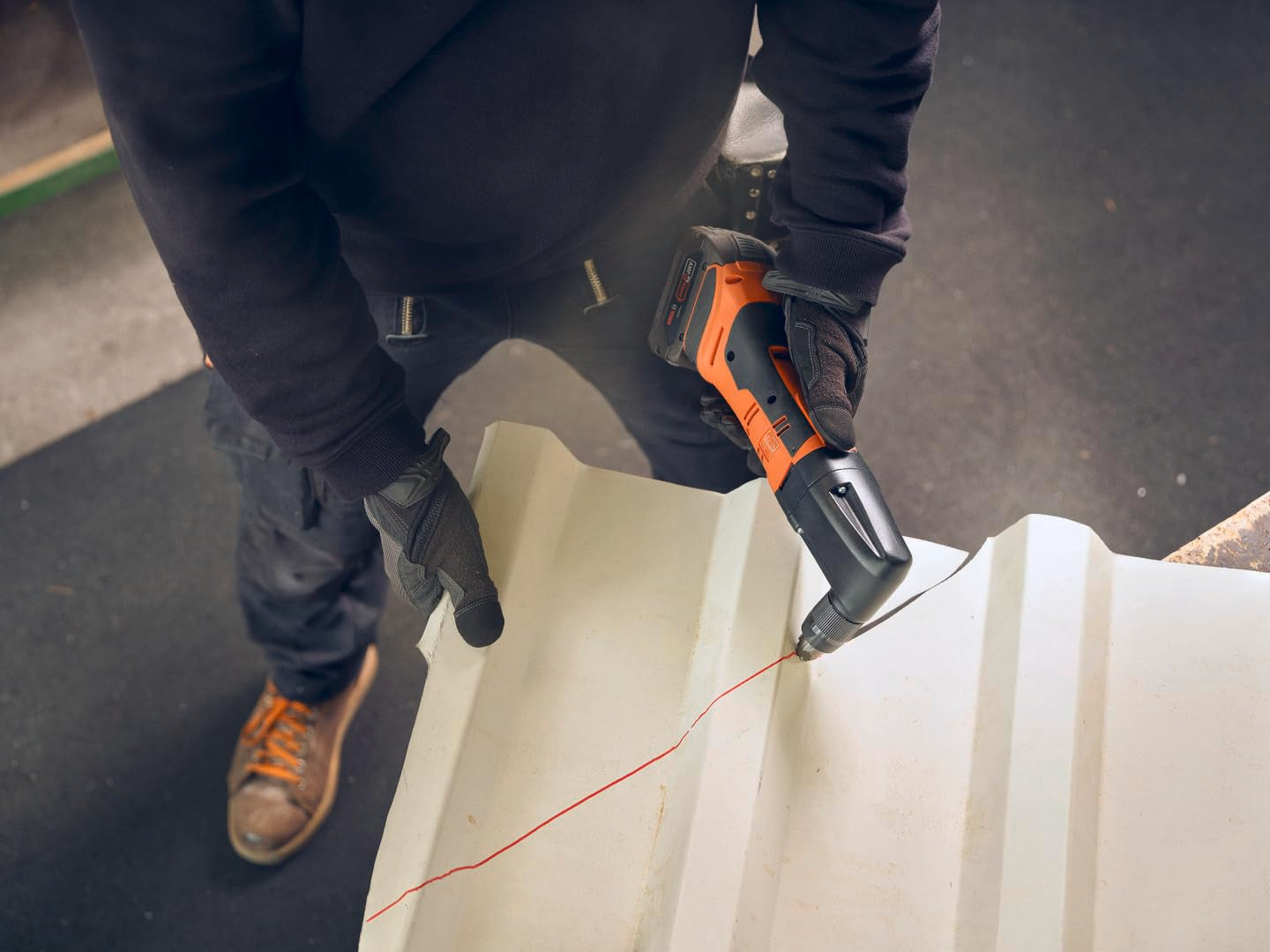

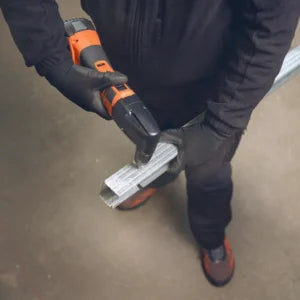

The Fein ABLK 18 1.6 E AS N00 71321161000 is a professional 18V cordless nibbler designed for precise, efficient and highly maneuverable cutting of trapezoidal sheet metal, corrugated sheet metal and metal profiles. Its compact construction and excellent curve capability make it especially suitable for roofing and façade construction, as well as professional sheet-metal fabrication and installation work.

Powered by a proven FEIN MultiMaster motor, the nibbler provides a cutting speed of 1.5 m/min and delivers dependable performance for demanding sheet-metal applications. It can cut steel up to 1.6 mm at 400 N/mm², 1.0 mm at 600 N/mm², and 0.7 mm at 800 N/mm². It can also cut non-ferrous metals up to 2.5 mm at 250 N/mm².

The tool-free pivoting cutting head allows the cutting direction to be adjusted through 360° in 45° increments. This provides excellent flexibility when following curves, profiles and difficult cutting paths. The extremely slim gearbox head improves handling and visibility, making the tool comfortable to guide during detailed sheet-metal work.

The integrated QuickIN system allows the punch and die to be changed quickly. The rotating round punch can provide up to 30% longer service life, while the punch and die can be replaced independently to help reduce operating costs. The electronically adjustable stroke speed also allows the cutting performance to be adapted to different materials and working conditions.

With a 5 mm cutting width, 22 mm immersion diameter and minimum curve radius of 30 mm inside / 35 mm outside, the ABLK 18 1.6 E AS offers excellent control for curved, profile and interior cutting applications. FEIN specifies approximately 66 m of cutting capacity in 0.8 mm sheet metal with one 5 Ah battery charge.

The tool is part of the 18V AMPShare battery system and is compatible with Li-ion and ProCORE Li-ion batteries. Battery technology incorporates COOLPACK for improved battery life and ECP protection against overload, overheating and total discharge.

Product Features

18V cordless nibbler for flexible, cable-free sheet-metal cutting.
Designed for professional roofing and façade construction.
Cuts steel up to 1.6 mm at 400 N/mm².
Cuts steel up to 1.0 mm at 600 N/mm².
Cuts steel up to 0.7 mm at 800 N/mm².
Cuts non-ferrous metals up to 2.5 mm.
1.5 m/min cutting speed for efficient work progress.
850–1,350 strokes/min electronically adjustable.
5 mm cutting width for controlled material removal.
360° adjustable cutting direction in 45° steps.
Tool-free pivoting cutting head for excellent maneuverability.
QuickIN quick-change system for punch and die.
Rotating round punch with up to 30% longer service life.
30 mm minimum inside curve radius.
35 mm minimum outside curve radius.
22 mm immersion diameter with die.
Slim gearbox head for improved handling.
2.6 mm brief overlapping area capability.
Proven FEIN MultiMaster motor for high performance and stability.
Compatible with AMPShare / Bosch Professional 18V batteries.
COOLPACK and ECP battery protection technology.
Supplied with L-BOXX 136 for transport and storage.

Product Specifications

Specification	Details
Brand	Fein
Product Type	Cordless Nibbler
Model	ABLK 18 1.6 E AS N00
Order Number	71321161000
Product Number	7 132 11 61 00 0
Battery Voltage	18V
Battery Compatibility	Li-ion / ProCORE Li-ion
Battery Interface	18V AMPShare
Stroke Rate	850–1,350 spm
Cutting Speed	1.5 m/min
Steel Capacity at 400 N/mm²	1.6 mm
Steel Capacity at 600 N/mm²	1.0 mm
Steel Capacity at 800 N/mm²	0.7 mm
Non-Ferrous Metal Capacity at 250 N/mm²	2.5 mm
Cutting Width	5 mm
Immersion Diameter with Die	22 mm
Minimum Inside Curve Radius	30 mm
Minimum Outside Curve Radius	35 mm
Cutting Direction	360°, adjustable in 45° steps
QuickIN	Yes
Adjustable Stroke	Yes
Rotating Round Punch	Yes
Overlapping Area	Up to 2.6 mm
Weight Without Battery	1.71 kg
Sound Pressure Level	90.4 dB
Sound Power Level	98.4 dB
Peak Sound Level	115.6 dB
Vibration Value	12.1 m/s²
Tool Case	L-BOXX 136
Battery Included	No
Charger Included	No
