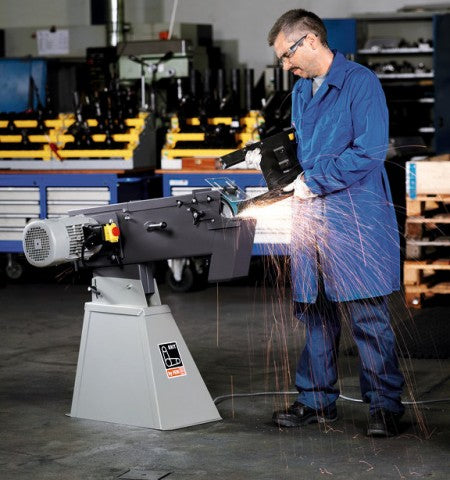

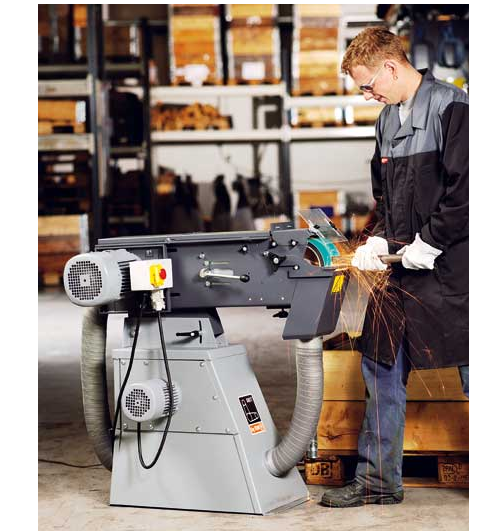

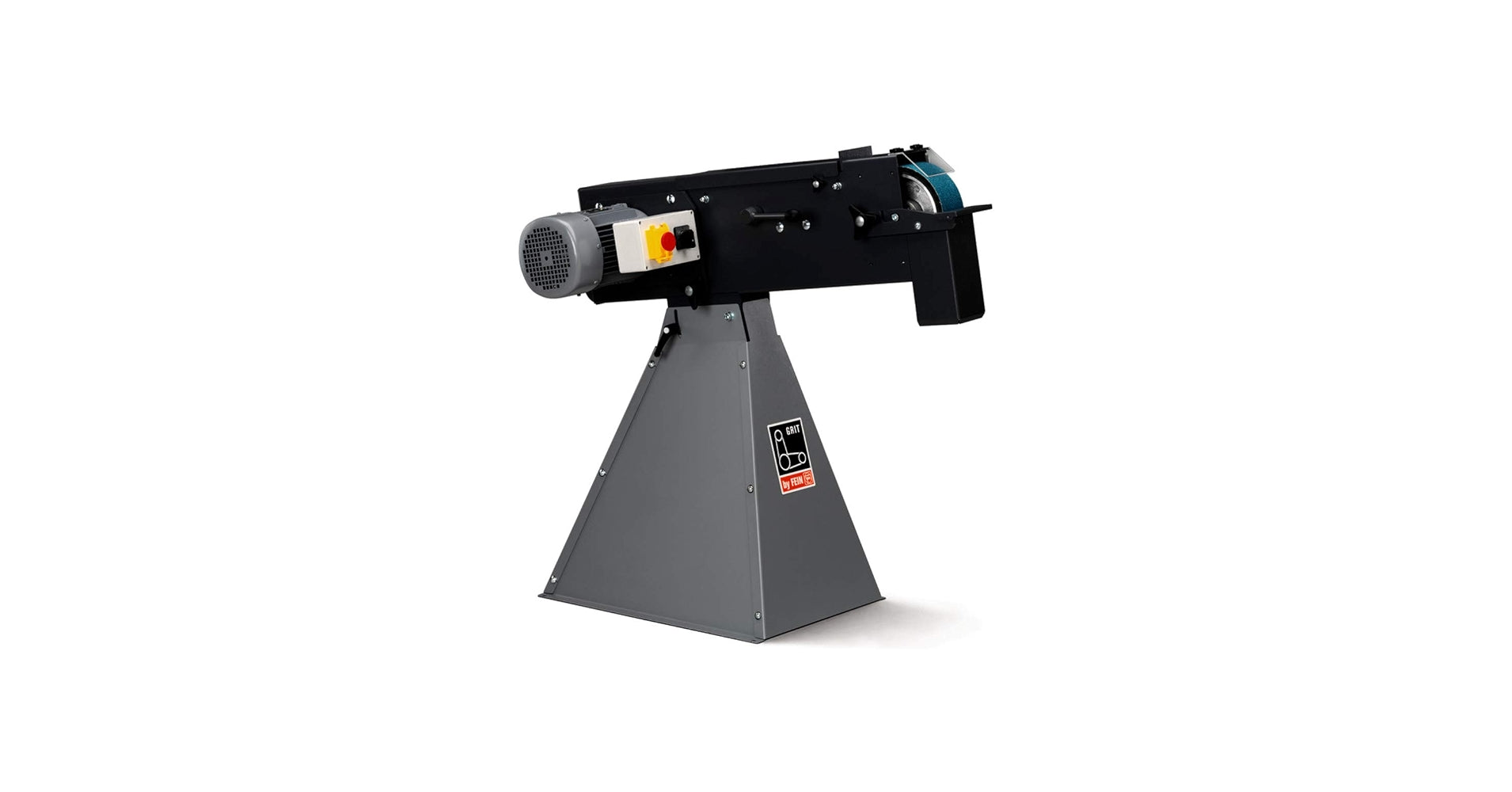

Fein GRIT GX 75 2H is a professional switchable belt grinder designed for metalworking, stainless-steel processing, manual trades and small-series production. The machine uses a robust three-phase AC motor with two selectable operating speeds, allowing it to work at approximately 1,500 or 3,000 RPM for different metal and stainless-steel grinding requirements.
The GX752H features a 75 x 2,000mm grinding belt, providing a generous working surface for grinding, deburring, chamfering and surface finishing. Its height-adjustable flat grinding table is designed for linear surface grinding, while the individually adjustable working height helps users set the machine according to their preferred working position.
A key advantage of this model is its modular expandable design. Additional GRIT modules can be integrated as production requirements grow, making the machine suitable not only for general workshop grinding but also for more specialized metalworking operations. The patented belt-tensioning system, detachable swarf collector and optional external extraction connection further improve convenience and workshop cleanliness.
Product Features & Specifications
Brand: Fein
Series:GRIT GX
Model:GX 75 2H / GX752H
Product Type:Switchable Stationary Belt Grinder
Part Number:79013200403
Product Number:7 901 32 00 40 3
Motor Type:Robust Three-Phase AC Motor
Input Power:1.5 / 2kW
Power Supply:3 x 400/440V
Frequency:50/60Hz
Speed:1,500 / 3,000 RPM according to the current FEIN India specification.
Grinding Belt Size:75 x 2,000mm
Belt Width:75mm
Belt Length:2,000mm
Switchable Speed: Two selectable speeds provide appropriate operating speeds for metal and stainless-steel processing.
Modular Design: Can be expanded with additional GRIT modules for specialized grinding and production requirements.
Flat Grinding Table:Height-adjustable table supports linear surface grinding.
Adjustable Working Height: Allows the work level to be adjusted according to the operator and application.
Patented Belt-Tensioning System: Helps maintain proper belt tension and stable grinding performance.
Detachable Swarf Collector: Collects grinding debris and can be removed for convenient cleaning and maintenance.
Extraction Connection: Provides an option for connecting external dust/swarf extraction equipment.
Low-Vibration Construction: Designed to provide stable and comfortable operation during grinding.
Metal Grinding: Suitable for grinding and shaping metal components.
Stainless-Steel Grinding: Particularly suitable for stainless-steel processing.
Deburring: Useful for removing burrs and sharp edges from fabricated metal components.
Surface Preparation: Suitable for preparing metal surfaces before coating, welding or finishing.
Linear Surface Grinding: The adjustable flat grinding table supports straight and planar surface grinding.
Small-Series Production: Suitable for repetitive grinding operations and small production batches.
Workshop Applications: Ideal for fabrication shops, metalworking workshops, engineering facilities and maintenance departments.
Professional Construction: Robust construction makes it suitable for demanding industrial and professional environments.
Included Grinding Belt:1 × 75 x 2,000mm K36 R grinding belt.
Included Plug:1 × 16A CEE plug.
Key Benefits
1.5/2kW three-phase motor provides reliable performance for demanding grinding operations.
Two selectable speeds allow optimized operation for different metal and stainless-steel applications.
75 x 2,000mm grinding belt provides a large working area.
Height-adjustable grinding table supports accurate linear surface grinding.
Adjustable working height improves operator convenience.
Patented belt-tensioning system supports stable and consistent belt operation.
Detachable swarf collector makes debris management and cleaning easier.
